Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking

Customer Reviews
Let’s talk business. Contact us and we will discuss further.

—— Dear customer

I'm Online Chat Now

Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking

Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking
Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking

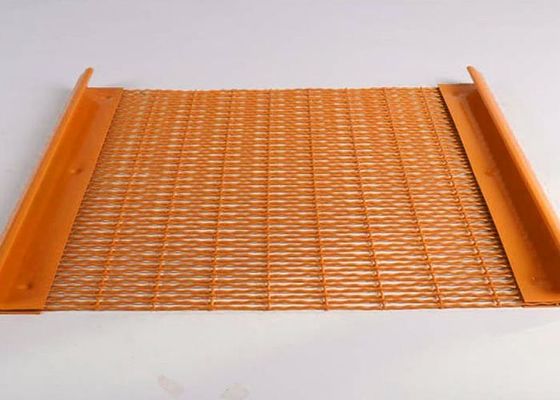

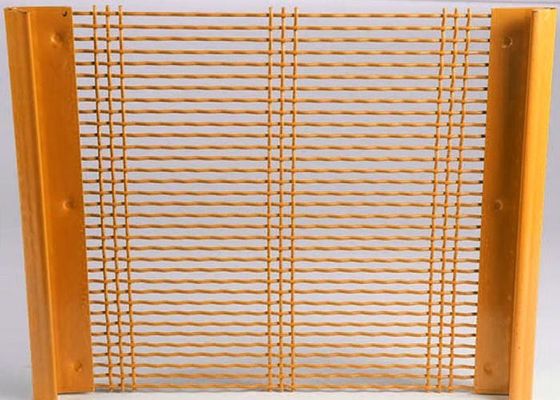

Large Image :  Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking

Product Details:
Place of Origin: China
Brand Name: Citti Mesh
Model Number: Powder Coating Self-Cleaning Metal Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Discuss personally
Packaging Details: wooden boxes
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 1000000

Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking

Description
Material: High Tensile Steel Wire , Stainless Steel Wire Wire Diameter: 1.2–10mm
Edge: Hooked Edge Is Available. Wire Type: Crimped Wire
High Light:

powder coating vibrating screen mesh

,

self cleaning vibrating screen mesh

Powder Coating Self-Cleaning Metal Mesh - High strength anti-blocking vibrating screen.



The per-undulated wire, placed one next to the other form the aperture. this way the materials follow the direction for one of the diagonals of the aperture.as the wirers are independent,the collisions pro-duced by the products cause the differences in the vibration the prevent the clogging of the fine products between the wires. this type of mesh is the most used to keep in place the aperture of these meshes . the wired ones are used when the classification is done at higher temperatures than 80 like at the asphalt mixture plants.



These Screens are made of horizontally crimped round wires, with 6 interwoven cross weaves wires.



The surface is treated by spraying, not only the color is gorgeous, the appearance is beautiful, and the service life is longer.





Powder Coating Self-Cleaning Metal Mesh​​ Feature





  • high performance and excellent self cleaning,long wear-life
  • More opening area
  • 30% more capacity than woven wire
  • Eliminates blinding and plugging
  • 3 times longer wear life time than woven wire
  • Minimizes down time cleaning and unclogging
  • Maximizes throughput





Powder Coating Self-Cleaning Metal Mesh​ Specification



  1. Material: High carbon steel wire and stainless steel wire.
  2. Surface treatment: powder coating.
  3. Color: Red, orange, gray, black, green and other colors can be selected.
  4. Wire diameter: 1.2–10 mm.
  5. Edge: Hooked edge is available.
  6. Wire type: crimped wire.



Powder Coating Self-Cleaning Metal Mesh​ Application



Powder coating self-cleaning screens are widely used for sand and gravel industry, ore preparation plants, mining industry, for damp, sticky, hard-to-screen material.





Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking 0

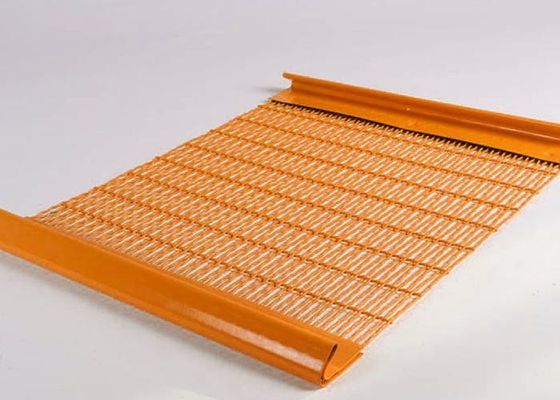

Self Cleaning Screen Mesh For Screening Sand



Powder Coating Vibrating Screen Mesh Self Cleaning Metal High Strength Anti Blocking 1

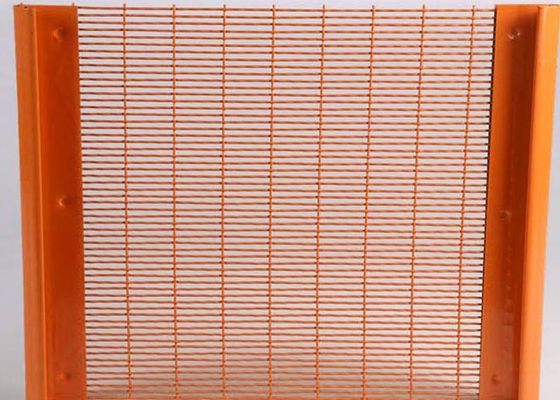

Self Cleaning Screen Mesh For Mining
