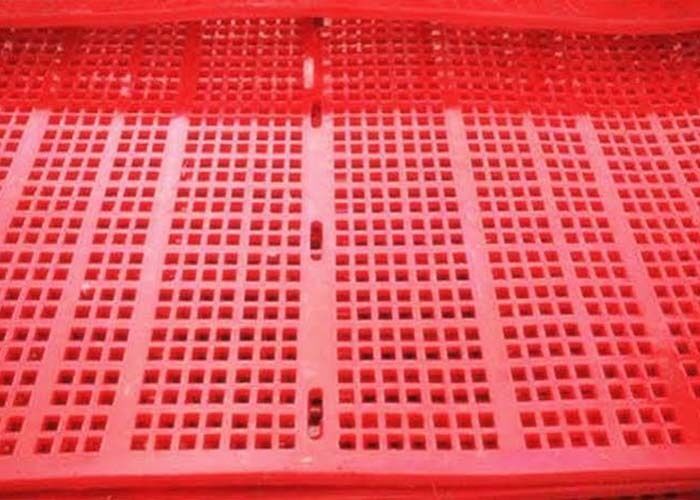

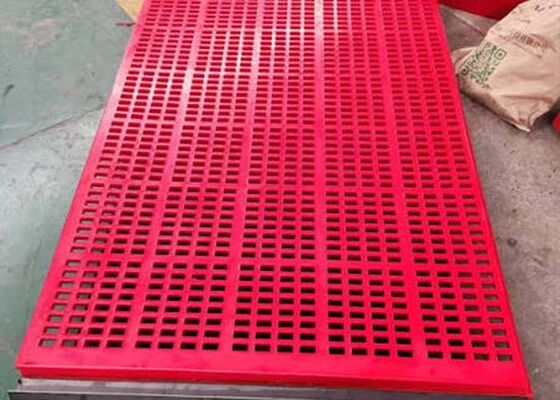

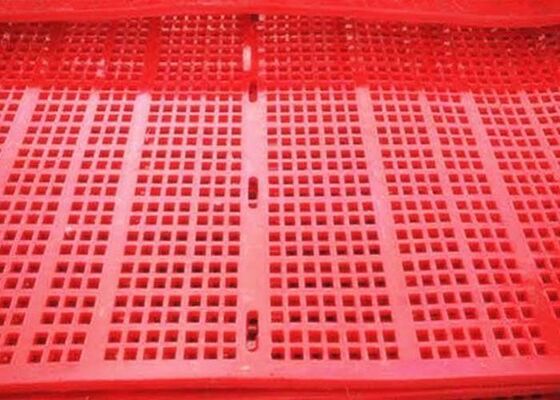

High-Elasticity Tensioned Polyurethane Screen 6x6mm Aperture With Anti-Clogging Surface

High-Elasticity Tensioned Polyurethane Screen 6x6mm Aperture With Anti-Clogging Surface
High-Elasticity Tensioned Polyurethane Screen 6x6mm Aperture With Anti-Clogging Surface High-Elasticity Tensioned Polyurethane Screen 6x6mm Aperture With Anti-Clogging Surface

Large Image :  High-Elasticity Tensioned Polyurethane Screen 6x6mm Aperture With Anti-Clogging Surface

Product Details:
Place of Origin: Hebei, China
Brand Name: Citti Mesh
Certification: ISO 9001:2015
Model Number: PU-TS-55-AC25
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: USD 34-58 / Piece
Packaging Details: Polywood pallet with waterproof film and edge protection, or export carton as requested
Delivery Time: 7 working days for stock, 15-20 days for production
Payment Terms: T/T,L/C,Western Union
Supply Ability: 8000 Pieces per Month
Contact Now

High-Elasticity Tensioned Polyurethane Screen 6x6mm Aperture With Anti-Clogging Surface

Description
Material: Polyurethane Elastomer, Smooth Anti-clogging Surface Opening Size: 6 X 6 Mm
Aperture Shape: Square Screen Thickness: 25 Mm
Open Area: Up To 40 Percent Panel Width: 1000 Mm (customizable)
Panel Length: 1500 Mm (customizable) Edge Type: Tensioned Hook Edge
Colour: Amber / Red / Custom Hardness: 80-85 Shore A
Application: Coal Washing, Dewatering And Fine Sizing
Highlight:

anti clogging polyurethane screen

,

6x6mm PU dewatering panel

,

tensioned PU screen for coal

High-Elasticity Tensioned Polyurethane Screen 6 x 6 mm Aperture
Anti-clogging tensioned panel for coal washing, dewatering and fine sizing
This high-elasticity tensioned polyurethane screen uses a 6 x 6 mm aperture combined with a smooth, low-friction PU surface that sheds wet fines instead of holding them in the holes. It is built in a 25 mm thickness with a tensioned hook edge, so it fits standard coal washing and dewatering screen decks and can replace wire cloth without any deck modification.
The softer 80-85 Shore A compound vibrates with the deck and keeps the apertures clear during wet screening of coal slime, sand and fine minerals. Open area reaches up to 40 percent, which supports higher throughput and better drainage while the polyurethane body absorbs impact and resists abrasion, corrosion and chemical attack from wash water.
Panels are made to your deck dimensions with the hook profile matched to your vibrating screen. Send us the deck drawing or screen model and we will confirm thickness, open area and hook geometry before production.
Key Features
  • 6 x 6 mm aperture with smooth anti-clogging surface for wet and sticky feeds
  • Open area up to 40 percent for higher throughput and faster drainage
  • Flexible 80-85 Shore A PU compound keeps apertures clear during vibration
  • Wear, corrosion and chemical resistant for coal washing and dewatering duty
  • Tensioned hook edge installs on standard decks without modification
  • Lighter than steel alternatives, simpler handling and faster replacement
Technical Specifications
Parameter Specification
Material Polyurethane elastomer, smooth surface
Opening Size 6 x 6 mm
Aperture Shape Square
Screen Thickness 25 mm
Open Area Up to 40 percent
Panel Width 1000 mm (customizable)
Panel Length 1500 mm (customizable)
Edge Type Tensioned hook edge
Hardness 80-85 Shore A
Colour Amber, red or custom
Applications
  • Coal washing plants and coal slime dewatering
  • Sand, gravel and mineral dewatering screens
  • Fine sizing and desliming circuits
  • Wet screening where wire cloth blinds or pegs
Custom aperture, thickness and panel size available. Send your deck drawing or screen model number for a quotation within 24 hours.
Why Choose Our Tensioned Polyurethane Screen
Every panel is moulded with controlled aperture tolerance, then tensioned and hook-finished in our own workshop so that the screening surface stays flat and evenly loaded on the deck. Combined with a stable polyurethane compound and embedded steel reinforcement, the panel snaps onto standard tension rails without welding or deck modification, cutting replacement downtime to a matter of minutes and keeping your vibrating screen running at full availability.
