High-Elasticity Tensioned Polyurethane Screen 5.5x5.5mm Square Opening for Gold Ore Screening

Large Image : High-Elasticity Tensioned Polyurethane Screen 5.5x5.5mm Square Opening for Gold Ore Screening

Product Details:

Place of Origin:	Hebei, China
Brand Name:	Citti Mesh
Certification:	ISO 9001:2015
Model Number:	PU-TS-55-SQ30

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 38-65 / Piece
Packaging Details:	Polywood pallet with waterproof film and edge protection, or export carton as requested
Delivery Time:	7 working days for stock, 15-20 days for production
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	8000 Pieces per Month

Contact Now

High-Elasticity Tensioned Polyurethane Screen 5.5x5.5mm Square Opening for Gold Ore Screening

Description

Material:	Polyurethane Elastomer With Embedded Steel Reinforcement	Opening Size:	5.5 X 5.5 Mm
Aperture Shape:	Square	Screen Thickness:	30 Mm
Panel Width:	1000 Mm (customizable)	Panel Length:	1500 Mm (customizable)
Edge Type:	Tensioned Hook Edge, Both Sides	Colour:	Red / Amber / Custom
Hardness:	85-90 Shore A	Aperture Tolerance:	+/- 0.2 Mm
Application:	Gold Ore, Hard Rock And Aggregate Screening
Highlight:	5.5mm polyurethane tensioned screen , square opening PU screen panel , high elasticity PU screen mesh

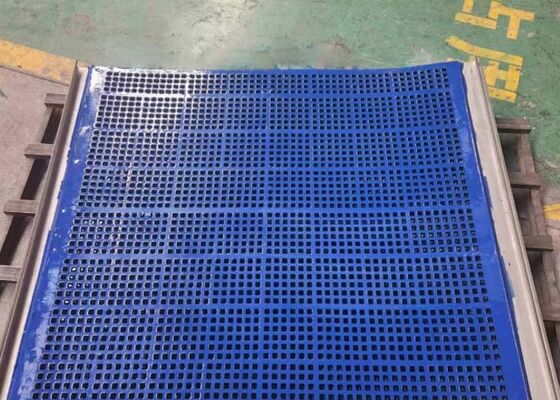

High-Elasticity Tensioned Polyurethane Screen 5.5 x 5.5 mm

Square opening tensioned panel engineered for gold ore and hard rock screening decks

This high-elasticity tensioned polyurethane screen is moulded from a wear-resistant PU elastomer compound with 5.5 x 5.5 mm square openings, giving a precise cut point and a high open area on gold ore, hard rock and aggregate screening decks. The panel is produced in a 30 mm thickness and finished with a reinforced tensioned hook on both sides, so it mounts directly on standard tension rails without any modification to the screen deck.

Compared with woven steel wire cloth, the elastic polyurethane surface flexes under the vibrating load instead of deforming permanently. That flexibility keeps the apertures open, reduces pegging and blinding in damp or sticky ore, and drops the noise level on the deck considerably. The material also resists abrasion, oils, chemicals and UV exposure, which is why the panel keeps its cut accuracy far longer in abrasive gold ore circuits.

Panels are supplied cut to your deck dimensions, with hook size, panel width and length matched to your vibrating screen model. Tell us your screen brand and deck drawing, and we will confirm the tensioning geometry before production.

Key Features

5.5 x 5.5 mm square aperture with +/- 0.2 mm tolerance for a stable, repeatable cut point
High-elasticity PU compound flexes under load and resists permanent deformation
Reduced pegging and blinding on damp, sticky or high-moisture gold ore
Abrasion, oil, chemical and UV resistant for long service life in mineral processing
Reinforced tensioned hook edge on both sides, installs on standard tension rails
Lower operating noise and less deck vibration transmitted to the screen frame

Technical Specifications

Parameter	Specification
Material	Polyurethane elastomer with steel reinforcement
Opening Size	5.5 x 5.5 mm
Aperture Shape	Square
Screen Thickness	30 mm
Panel Width	1000 mm (customizable)
Panel Length	1500 mm (customizable)
Edge Type	Tensioned hook edge, both sides
Hardness	85-90 Shore A
Colour	Red, amber or custom

Applications

Gold ore and refractory ore screening and classification
Hard rock, iron ore and copper ore sizing decks
Aggregate and quarry screening plants
Wet or high-humidity screening circuits where wire cloth blinds

Custom opening sizes, panel dimensions, thickness and hook profiles are available on request. Please send your deck drawing or screen model number for a precise quotation.

Why Choose Our Tensioned Polyurethane Screen

Every panel is moulded with controlled aperture tolerance, then tensioned and hook-finished in our own workshop so that the screening surface stays flat and evenly loaded on the deck. Combined with a stable polyurethane compound and embedded steel reinforcement, the panel snaps onto standard tension rails without welding or deck modification, cutting replacement downtime to a matter of minutes and keeping your vibrating screen running at full availability.
