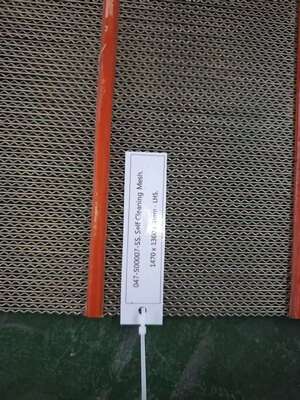

SS 304 Self Cleaning Screen Mesh 1470x1360mm RHS Hook With Polyurethane Strips

This self-cleaning screen mesh is manufactured from SS 304 stainless steel wire and is designed to eliminate blinding and pegging when screening wet, sticky and damp materials. The independently vibrating wires keep the apertures clear, so the panel cleans itself during operation and maintains a high open area.

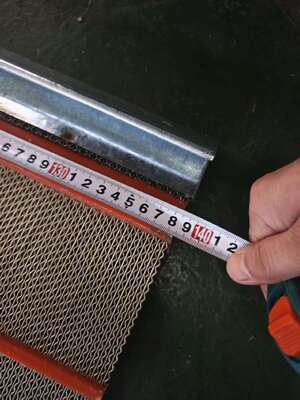

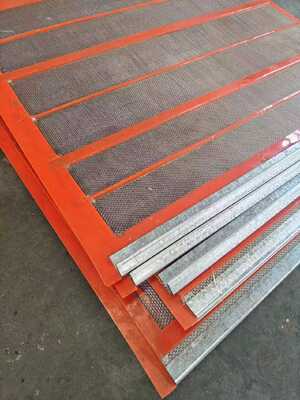

The panel measures 1470 x 1360 mm, uses 1.2 mm wire and is supplied with a RHS side hook for quick tensioning on vibrating screens. Polyurethane strips are bonded in the middle and at all four sides of the panel to reinforce the structure, protect the hook edges and extend service life.

Key Features

• SS 304 stainless steel wire with excellent corrosion and wear resistance.
• Anti-clogging, anti-blinding self-cleaning design for wet and sticky material.
• RHS side hook for fast and secure mounting on vibrating screens.
• Polyurethane strips in the middle and at all four sides reinforce and protect the panel.
• High open area for higher throughput and screening efficiency.
• Long service life with low maintenance cost.

Specifications

• Material: SS 304 stainless steel.
• Wire diameter: 1.2 mm.
• Panel size: 1470 x 1360 mm.
• Hook type: RHS side hook.
• Support: polyurethane strips in the middle and at all 4 sides.
• Wire type: straight wire self-cleaning mesh.

Applications

Widely used for material separation and screening in the mining, quarry, aggregate processing and construction industries, especially for wet, sticky and damp materials such as sand, gravel, crushed stone, coal and ore.

Custom sizes, wire diameters and aperture openings are available. Contact us with your drawing for a quotation.
