Product Details:
|
Product: | Riveted Grating | Material: | Carbon Steel, Stainless Steel Or Aluminum Steel. |
---|---|---|---|
Surface Type: | Smooth Surface Or Serrated Surface. | Surface Treatment: | Galvanized, Painted Or Mill Finished. |
Bearing Bar Spacing: | 3/4" Or 1-1/8". | Cross Bar Spacing: | 3" Or 7". |
Highlight: | Load Capacity Bar Grating,High Strength Bar Grating,Riveted Bar Grating |
With high strength and load capacity, riveted grating offers you best choice for bridge construction, wheeled equipment, anti-slip walkway and various covers for convenient draining.

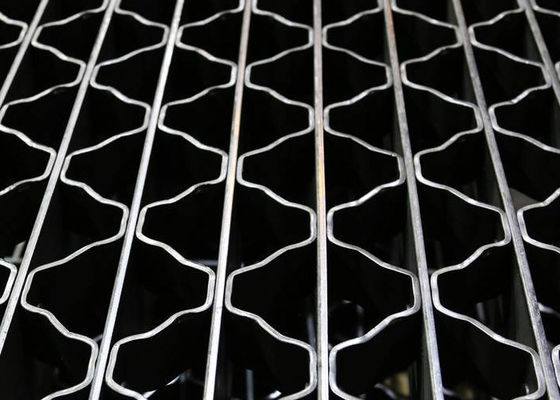

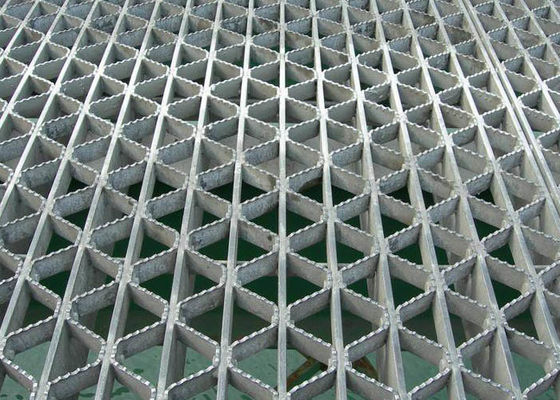

Riveted grating product
Riveted grating is also called riveted grating, which is a type of heavy duty grating with high strength and load capacity. The main parts of riveted grating are bearing bars, crimp bars and rivets, and the riveted grating has a serious of crimp bars for various choices. It's widely used in the bridge constructions as heavy duty bridge grating and used as trench cover, drainage cover for convenient draining. Besides, serrated surface riveted grating can be used as the walkways for anti-slip effect.
Riveted grating feature
Riveted grating specification
Item | Bearing Bar | Crimp Bar | Bearing Bar Spacing | Cross Bar Spacing |
---|---|---|---|---|
RG18-01 | 1" × 1/8" | 3/4" × 1/8" | 1-1/8" | 3", 7" |
RG18-02 | 1" × 3/16" | 3/4" × 1/8" | 1-1/8" | 3", 7" |
RG18-03 | 1-1/4" × 1/8" | 3/4" × 1/8" | 1-1/8" | 3", 7" |
RG18-04 | 1-1/4" × 3/16" | 3/4" × 1/8" | 1-1/8" | 3", 7" |
RG18-05 | 1-1/2" × 1/8" | 1" × 1/8" | 1-1/8" | 3", 7" |
RG18-06 | 1-1/2" × 3/16" | 1" × 1/8" | 1-1/8" | 3", 7" |
RG18-07 | 1-3/4" × 3/16" | 1" × 1/8" | 1-1/8" | 3", 7" |
RG18-08 | 2" × 3/16" | 1" × 1/8" | 1-1/8" | 3", 7" |
RG18-09 | 2-1/4" × 3/16" | 1" × 1/8" | 1-1/8" | 3", 7" |
RG18-10 | 2-1/2" × 3/16" | 1" × 1/8" | 1-1/8" | 3", 7" |
Item | Bearing Bar | Crimp Bar | Bearing Bar Spacing | Cross Bar Spacing |
---|---|---|---|---|
RG12-01 | 1" × 1/8" | 3/4" × 1/8" | 3/4" | 3", 7" |
RG12-02 | 1" × 3/16" | 3/4" × 1/8" | 3/4" | 3", 7" |
RG12-03 | 1-1/4" × 1/8" | 3/4" × 1/8" | 3/4" | 3", 7" |
RG12-04 | 1-1/4" × 3/16" | 3/4" × 1/8" | 3/4" | 3", 7" |
RG12-05 | 1-1/2" × 1/8" | 1" × 1/8" | 3/4" | 3", 7" |
RG12-06 | 1-1/2" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
RG12-07 | 1-3/4" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
RG12-08 | 2" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
RG12-09 | 2-1/4" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
RG12-10 | 2-1/2" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
Riveted grating application
bridge-riveted-grating
traffic-surface-riveted-grating
