Product Details:
|
Material: | Stainless Steel 304, 304L, 316, 316L. | Finish: | Mill Finish, Commercial Clean And Electro Polished. |
---|---|---|---|
Surface: | Smooth Surface Or Serrated Surface. | Grating Type: | Welded Steel Grating And Press Lock Steel Grating。 |
Bearing Bar Type: | Standard/Light Duty Grating,Heavy Duty Grating,I Bar Grating. | Bearing Bar Spacing: | Ranging From 1-3/16" To 11/16". |
Cross Bar Spacing: | 2" Or 4" On Center. | ||
Highlight: | 304 316 Welded Steel Grating,304 Stainless Steel Grating,316 Stainless Steel Grating |

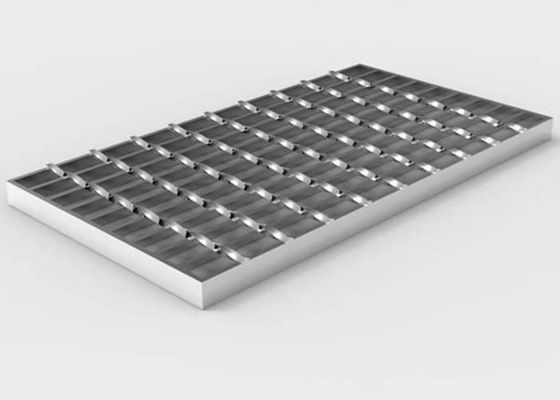

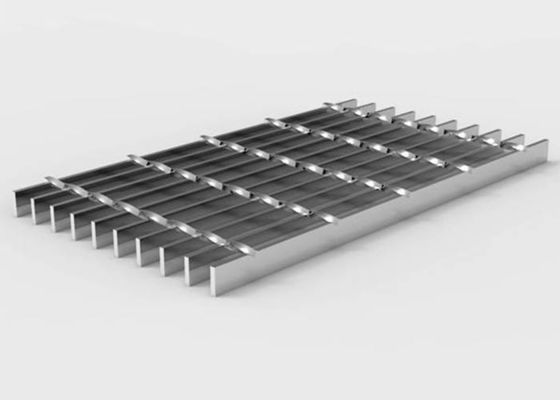

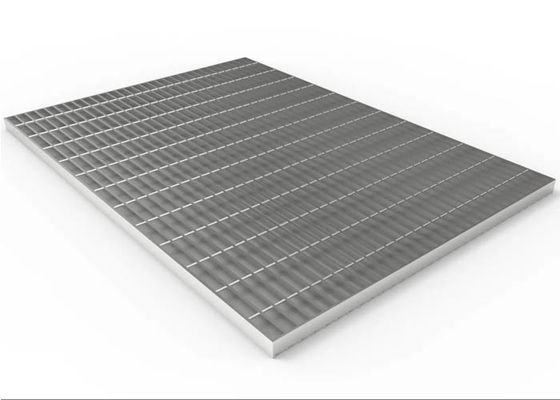

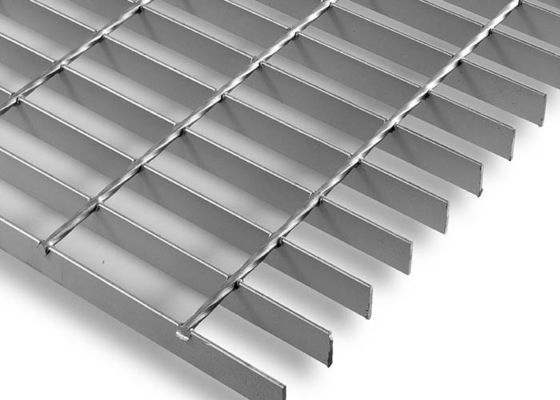

Stainless steel grating is regarded as industrial grade bar grating, which is extremely strong, durable and corrosive resistant for all load bearing applications and is primarily used for pedestrian and light vehicle traffic.
Stainless Steel Grating Surface
Stainless Steel Grating Grating Type
Stainless Steel Grating Bearing Bar Type
Stainless Steel Grating Features & Characteristics:
Stainless Steel Grating Specification:
Type | Description | Tensile Strength | Yield |
---|---|---|---|
304 | Good corrosion resistance, high tensile strength, excellent for chemical processing, food industries, power plants and waste water treatment. Used in high temperature applications | 75,000 psi (min.) | 30,000 psi (min.) |
316 | Better corrosion and pitting resistance than type 304, good heat resistance, used in chemical, pulp and paper processing, marine environments, textile equipment, petroleum refining. | 75,000 psi (min.) | 30,000 psi (min.) |
Metric Legend | Imperial Legend |
---|---|
U = Safe Uniform Load (kPa) C = Safe Concentrated Load (kN/meter of grating width) D = Deflection (mm) |
U = Safe Uniform Load (lbs./ft2) C = Safe Concentrated Load (lbs./foot of grating width) D = Deflection (inches) |
Stainless Steel Grade | Load/Deflection | Multiply Carbon Steel Load Tables By: | Based on Maximum Allowable Fiber Stress |
---|---|---|---|
304Stainless Steel | U | 1.111 | 20,000 P.S.I. (137.9 MPa) |
C | 1.111 | ||
D | 1.151 | ||
304LStainless Steel | U | 0.917 | 16,500 P.S.I. (113.8 MPa) |
C | 0.917 | ||
D | 0.949 | ||
316Stainless Steel | U | 1.111 | 20,000 P.S.I. (137.9 MPa) |
C | 1.111 | ||
D | 1.151 | ||
316LStainless Steel | U | 0.917 | 16,500 P.S.I. (113.8 MPa) |
C | 0.917 | ||
D | 0.949 |
Stainless Steel Grating Applications:
It can provide durable grating solution for corrosive resistance and minimum carbide precipitation are important considerations, typical applications include stairs and platforms for chemical production and storage, food processing and water and waste water treatment plant.
welded stainless steel grating for food industry
stainless steel welded steel grating for chemical platform channel
stainless steel welded steel grating for stair treads
stainless steel welded steel grating for partition wall
stainless steel welded steel grating for industrial flooring
