Product Details:
|
Product Name: | Pipeline Reinforced Mesh | Key Word: | Offshore Pipeline Counterweight Welded Wire Mesh Is Also Called Concrete Weight Coating Mesh, Pipeline Reinforced Mesh |
---|---|---|---|
Material: | Q235 Low Carbon Steel Wire. | Surface Treatment: | Hot Dipped Galvanized. |
Highlight: | Oil pipeline reinforced mesh,2.7mm pipeline reinforced mesh,1.8mm CWC mesh |

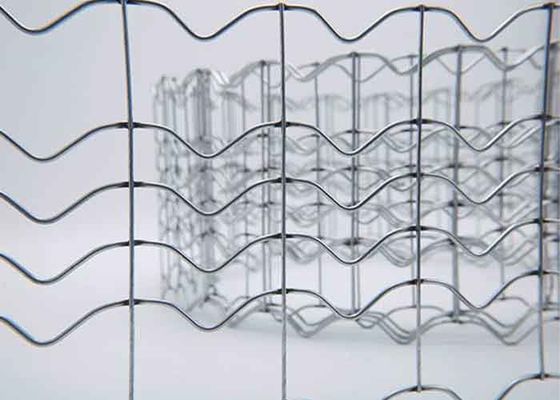

OFFSHORE OIL AND GAS PIPELINE REINFORCING MESH WELDED GALVANIZED- WIRE DIAMETRE range 1.8 mm to 2.7 mm
Pipeline Reinforcing Mesh is a specialized welded steel wire mesh to reinforce the concrete weight coating of offshore pipelines. Also known as Concrete Coating Mesh, Pipeline Concrete Weight Coating Mesh.
Welded mesh for pipeline reinforcement is typically manufactured from steel wire crimped with hot dipped galvanizing.
Uses:
Pipeline Reinforcing Mesh is designed to reinforce, add weight, and protect offshore oil and gas pipelines, as:
OUR CAPABILITES
Our company has a complete set of production lines, with an annual production capacity of more than 500 square metres. We are equipped with tensile testing devices, bending testers and other inspection equipment to ensure our pipeline mesh products meet international standard requirements.
Our company has passed the ISO9001:2015 quality system certification, has rich construction experience, and provides technical support and services for customers together with quality products.
We supply pipeline concrete coating mesh manufactured with strict requirements on materials, manufacturing process and performance. We use high-quality low-carbon steel wire sourced from large steel mills. We also implement thorough inspection throughout production, including parameters such as wire quality, weld strength, and zinc coating thickness. Our product complies with quality standards ASTM A641, ASTM A810, ASTM A185, and ASTM A82.
OFFSHORE PIPELINE REINFORCING MESH SPECIFICATIONS
Common sizes
Line Wire (mm) /Cross Wires (mm) /Roll Length (m)
1.60 x1.60 x 230m
2.00 x2.00 x160m
2.40 x2.00 x130m
Outside roll diameter : 600mm to 900mm
Packing: Core diameter of the rolled mesh: 200mm
Rolls are packed in bundle of 5 or 6 rolls
Roll width: 190mm to 260MM
Cross wire distance: 67mm
Length of roll : 11m to 240 m
Delivery:
Surface of finished wire mesh product is neat, regular and bright.
Welded mesh rolls are compact and strong.
Welded joints are firm and convenient for transport and stacking.
The product quality is fully tested before leaving the factory, and the third party testing report can be provided upon request.
Specifications:
1-Roll width:190.50 mm
2-Line Wire diameter 2.20 mm x Cross Wire Diameter 1.80 mm
3-Mesh Size:67 MM x 25.4 MM
4-Surface treatment: Hot Dipped galvanized 5-Number of line wire/per width:8
6-Wire material: Carbon steel
7-Process:GAW (Galvanized After Weld)
8-Roll length:160 mm
CUSTOMIZED PRODUCTS
Customized specification, in terms of material, roll width, wire diameter and cross wire distance is available upon customer’s request.
Custom Specifications Available:
Wire Gauge (Diameter): 1.8 mm to 2.7 mm
Mesh Opening: 25.4 mm x 67 mm
Width: 190.5 mm , 180mm, custom size.
Wire Treatment: Hot Dipped zinc galvanized ASTM A810.

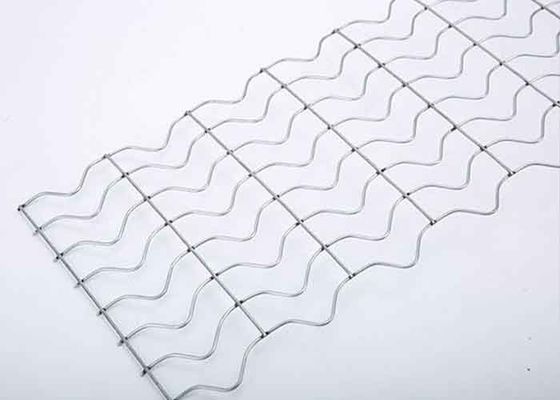

Crimped Wire: Crimped longitudinal wires to enhance mechanical interlock with the concrete.
Number of Line Wires/Width: 6 to 10 wires per 7½ inch width.
Quality: Manufactured to standards ASTM A810, ASTM 185, A82 standard.
Roll Length: 140 m, 160 m, 165 m, depending on the manufacturer and specific pipeline project.
