Galvanized Pipeline Reinforcing Mesh 25.4mm x 67mm ASTM A810

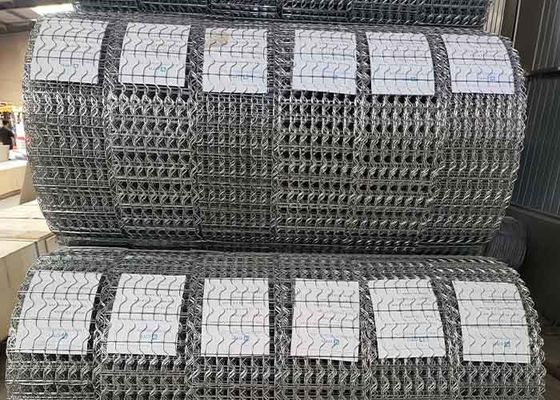

Large Image : Galvanized Pipeline Reinforcing Mesh 25.4mm x 67mm ASTM A810

Product Details:

Place of Origin:	China
Brand Name:	cittimesh

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	100 usd-300usd
Packaging Details:	wooden packing
Delivery Time:	Depends on the quantity of goods
Payment Terms:	L/C,T/T

Contact Now

Galvanized Pipeline Reinforcing Mesh 25.4mm x 67mm ASTM A810

Description

Product Name:	Pipe-Line Reinforcing Mesh	Key Word:	Offshore Pipeline Counterweight Welded Wire Mesh Is Also Called Concrete Weight Coating Mesh, Pipeline Reinforced Mesh
Mesh Construction:	Spot Welded	Standard:	ASTM 810 Standard, ASTM 185, A82 Standard.
Custom Specifications:	Available.	Surface:	Heavy Zinc Galvanized, Epoxy Coated
Highlight:	crimped concrete weight coating mesh , galvanized concrete weight coating mesh , galvanized pipe-line reinforcing mesh

Crimped Galvanized Concrete Weight Coating Mesh 25.4 Mm X 67 Mm Mesh X 190.5 Mm Strips

Pipeline Reinforcing Mesh Description

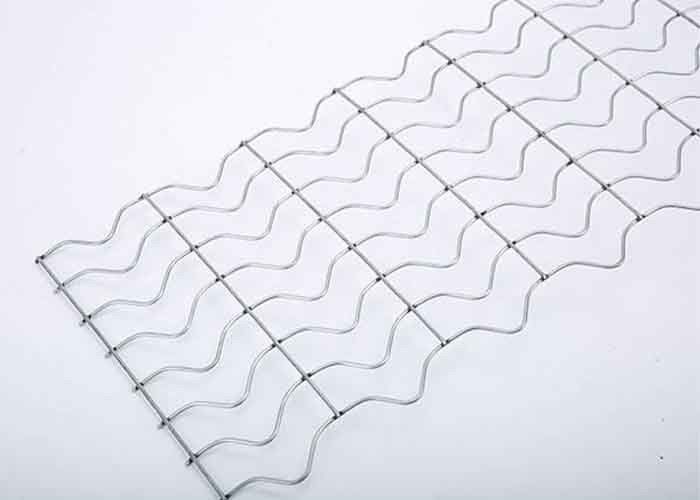

Pipeline Reinforcing Mesh is crimped wire mesh in coils used for subsea pipelines concrete encasement. Made from deeply pre-crimped steel wire welded in a special pattern with heavy galvanization, this crimped welded wire mesh is widely used in concrete weight coating for subsea and onshore pipelines.

We supply pipeline reinforcing welded mesh to UAE, USA, Canada, Vietnam, Peru, Turkey and other countries.

Key Specifications

Material: Low Carbon Steel Wire
Wire Form: Crimped
Surface: Heavy zinc galvanized, epoxy coated
Mesh Construction: Spot welded
Standards: ASTM 810, ASTM 185, A82
Custom specifications: Available

The reinforcing mesh is supplied in rolls or strips for light gauges, and flat panels for heavy types. Its primary function in pipeline concrete coating is to reinforce the concrete layer, enhancing structural integrity and resistance to cracking and impact during pipeline installation and operation.

Product Variant 1

Pipeline Reinforcing Welded Mesh Galvanized Crimped 25.4mm x 67mm hole x 190.5mm Width x 165m Length

Specification	Value
Width	7½ Width (190.5 mm)
Mesh Size	67 mm X 25.4 mm
Number Of Line Wire/Width	8
Wire Diameter	2.10 mm (Line Wire) X 1.70 mm (Cross Wire)
Roll Length	165 M
Quality Standard	ASTM A810

Product Variant 2

Pipeline Reinforcing Welded Mesh Galvanized Crimped 25.4mm x 67mm hole x 190.5mm Width x 160m Length

Specification	Value
Width	7½ Width (190.5 mm)
Mesh Size	67 mm X 25.4 mm
Number Of Line Wire/Width	8
Wire Diameter	2.20 mm (Line Wire) X 1.80 mm (Cross Wire)
Roll Length	160 M
Quality Standard	ASTM A810
