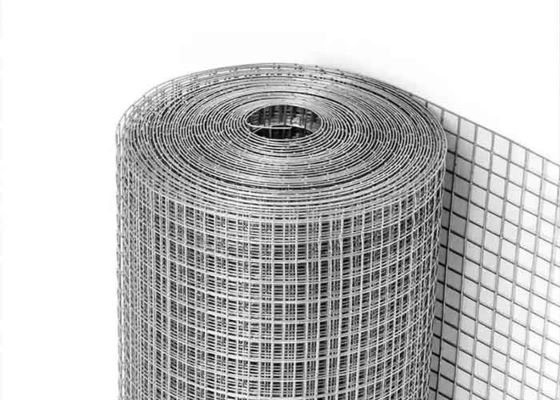

PVC Coated Galvanized Square Welded Wire Mesh 1 1 2 Inch

PVC Coated Galvanized Square Welded Wire Mesh 1 1 2 Inch
PVC Coated Galvanized Square Welded Wire Mesh 1 1 2 Inch PVC Coated Galvanized Square Welded Wire Mesh 1 1 2 Inch

Large Image :  PVC Coated Galvanized Square Welded Wire Mesh 1 1 2 Inch

Product Details:
Place of Origin: China
Brand Name: cittimesh
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T

PVC Coated Galvanized Square Welded Wire Mesh 1 1 2 Inch

Description
Wire Diameter Tolerance: ± 0.02 Mm. Tolerance Of Size Of Opening: ± 0.50 Mm.
Highlight:

1 1 2 PVC Coated Welded Wire Mesh

,

1 1 2 inch Galvanized Welded Wire Mesh

,

1 1 2 inch Square Welded Wire Mesh



PVC Coated and Galvanized Square Welded Wire Mesh



Welded wire mesh typically has larger openings than woven wire mesh. With the wire strands welded at each intersection, welded wire mesh is more capable of maintaining its shape when stressed.



Square welded wire mesh is the commonly used welded wire mesh. Other hole types include rectangle type, special type and so on. In general, square welded wire mesh is made of galvanized steel wire, zinc-coated steel wire, low carbon steel wire, PVC coated welded wire mesh and vinyl coated steel wire.



Square welded wire mesh sizes



Low carbon electric-galvanized square welded wire mesh

  • 12.7 mm × 12.7 mm × 0.9 mm × 1000 mm × 30 m.
  • 25.4 mm × 12.7 mm × 0.9 mm × 1000 mm × 30 m.
  • 25.4 mm × 25.4 mm × 1.4 mm × 1000 mm × 30 m.
  • 50.8 mm × 25.4 mm × 1.6 mm × 1000 mm × 30 m.
  • 50.8 mm × 50.8 mm × 1.8 mm × 1000 mm × 30 m.
  • End application: for plastering.



Low carbon black square welded wire mesh

  • 12.7 mm × 12.7 mm × 0.9 mm × 1000 mm × 30 m.
  • 25.4 mm × 12.7 mm × 0.9 mm × 1000 mm × 30 m.
  • 25.4 mm × 25.4 mm × 1.4 mm × 1000 mm × 30 m.
  • 50.8 mm × 25.4 mm × 1.6 mm × 1000 mm × 30 m.
  • 50.8 mm × 50.8 mm × 1.8 mm × 1000 mm × 30 m.
  • End application: for plastering.



Low carbon hot-dipped galvanized square welded wire mesh

  • Size of opening: 12.50 mm × 12.50 mm;
  • Wire diameter: 0.50 mm;
  • Width of roll: 1275 mm.
  • Weight of 1 square m.: 0.240 kg.
  • End application: for producing armored glass.





Quality specifications:



  • Allowable wire diameter tolerance: ± 0.02 mm.
  • Allowable tolerance of size of opening: ± 0.50 mm.
  • Allowable tolerance of width of roll: ± 10 mm.
  • Low carbon heat-treated wire should be used for making wire mesh. Wire surface must be bright, without chaps, exfoliation, rolling marks and rust. The welded places must be fixedly welded.
  • The wire mesh should not have detached wires.
  • Weld should have breakout power no more than 49 N (5 kgF).
  • Each roll of wire mesh should have length within 100-200 running meters. Allowed:
    Single spills in quantity no more than 1% from the total quantity of openings per 1 sq.m. (in non-concentrated area).
    No more than one completely detached wire per 50 running meters.

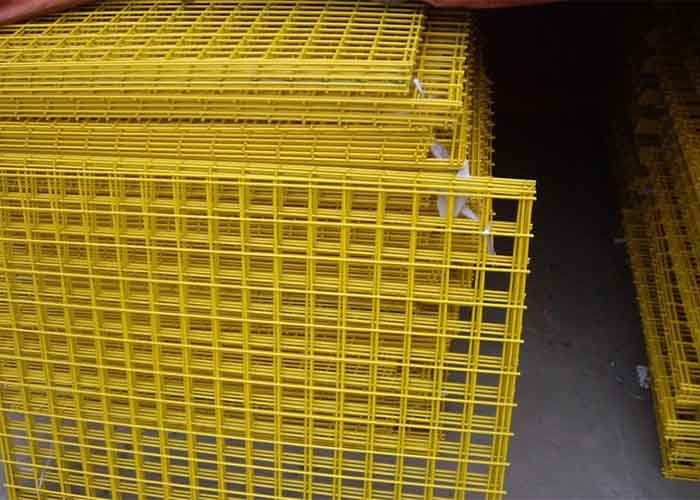

PVC Coated Galvanized Square Welded Wire Mesh 1 1 2 Inch 0

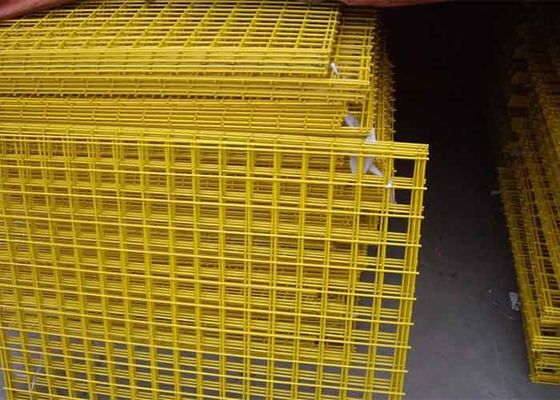

PVC Coated Galvanized Square Welded Wire Mesh 1 1 2 Inch 1
