Riveted Steel Grating 3/4" Bearing Bar Spacing High Load Capacity

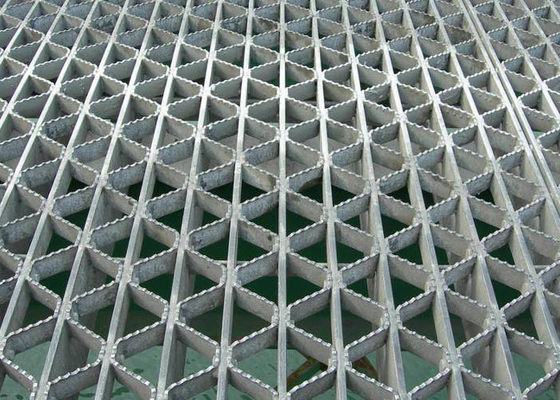

Large Image : Riveted Steel Grating 3/4" Bearing Bar Spacing High Load Capacity

Product Details:

Place of Origin:	China
Brand Name:	Cittimesh

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Packing in cartons or wooden cases
Delivery Time:	7days
Payment Terms:	L/C,T/T
Supply Ability:	In abundant supply

Contact Now

Riveted Steel Grating 3/4" Bearing Bar Spacing High Load Capacity

Description

Product:	Riveted Grating	Material:	Carbon Steel, Stainless Steel Or Aluminum Steel.
Surface Type:	Smooth Surface Or Serrated Surface.	Surface Treatment:	Galvanized, Painted Or Mill Finished.
Bearing Bar Spacing:	3/4" Or 1-1/8".	Cross Bar Spacing:	3" Or 7".
Highlight:	Load Capacity Bar Grating , High Strength Bar Grating , Riveted Bar Grating

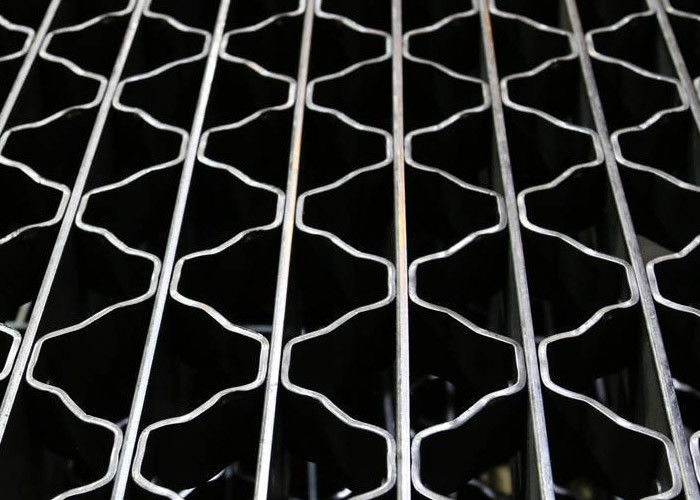

Riveted Bar Grating With High Strength And Load Capacity

With high strength and load capacity, riveted grating offers the best choice for bridge construction, wheeled equipment, anti-slip walkways, and various covers for convenient draining.

Riveted Grating Product

Riveted grating, also known as riveted bar grating, is a type of heavy-duty grating with exceptional strength and load capacity. The main components include bearing bars, crimp bars, and rivets, with a series of crimp bars available for various applications. This grating is widely used in bridge construction as heavy-duty bridge grating and serves as trench covers and drainage covers for efficient water flow. Additionally, serrated surface riveted grating provides excellent anti-slip properties for walkways.

Riveted Grating Features

High strength and load capacity
Lightweight aluminum options available
Outstanding chemical stability: resistant to alkali and acid
Performs well in harsh environments
Corrosion and rust resistant

Riveted Grating Specifications

Material: Carbon steel, stainless steel, or aluminum steel
Surface treatment: Galvanized, painted, or mill finished
Bearing bar spacing: 3/4" or 1-1/8"
Cross bar spacing: 3" or 7"
Surface type: Smooth or serrated surface

RG18 Riveted Grating Specifications

Item	Bearing Bar	Crimp Bar	Bearing Bar Spacing	Cross Bar Spacing
RG18-01	1" * 1/8"	3/4" * 1/8"	1-1/8"	3", 7"
RG18-02	1" * 3/16"	3/4" * 1/8"	1-1/8"	3", 7"
RG18-03	1-1/4" * 1/8"	3/4" * 1/8"	1-1/8"	3", 7"
RG18-04	1-1/4" * 3/16"	3/4" * 1/8"	1-1/8"	3", 7"
RG18-05	1-1/2" * 1/8"	1" * 1/8"	1-1/8"	3", 7"
RG18-06	1-1/2" * 3/16"	1" * 1/8"	1-1/8"	3", 7"
RG18-07	1-3/4" * 3/16"	1" * 1/8"	1-1/8"	3", 7"
RG18-08	2" * 3/16"	1" * 1/8"	1-1/8"	3", 7"
RG18-09	2-1/4" * 3/16"	1" * 1/8"	1-1/8"	3", 7"
RG18-10	2-1/2" * 3/16"	1" * 1/8"	1-1/8"	3", 7"

RG12 Riveted Grating Specifications

Item	Bearing Bar	Crimp Bar	Bearing Bar Spacing	Cross Bar Spacing
RG12-01	1" * 1/8"	3/4" * 1/8"	3/4"	3", 7"
RG12-02	1" * 3/16"	3/4" * 1/8"	3/4"	3", 7"
RG12-03	1-1/4" * 1/8"	3/4" * 1/8"	3/4"	3", 7"
RG12-04	1-1/4" * 3/16"	3/4" * 1/8"	3/4"	3", 7"
RG12-05	1-1/2" * 1/8"	1" * 1/8"	3/4"	3", 7"
RG12-06	1-1/2" * 3/16"	1" * 1/8"	3/4"	3", 7"
RG12-07	1-3/4" * 3/16"	1" * 1/8"	3/4"	3", 7"
RG12-08	2" * 3/16"	1" * 1/8"	3/4"	3", 7"
RG12-09	2-1/4" * 3/16"	1" * 1/8"	3/4"	3", 7"
RG12-10	2-1/2" * 3/16"	1" * 1/8"	3/4"	3", 7"

Riveted Grating Applications

Bridge construction as heavy-duty bridge grating
Traffic surfaces to prevent damage from heavy trucks
Trench covers and drainage covers for efficient water flow
Wheeled equipment surfaces (wheelchairs, roller skates, baby carriages)
Anti-slip walkways with serrated surface options

Bridge riveted grating application

Traffic surface riveted grating application
