5 Layers Stainless Steel 304 Sintered Mesh Popular For Water Treatment

Sintered Mesh Popular for Water Treatment and Gas Purification

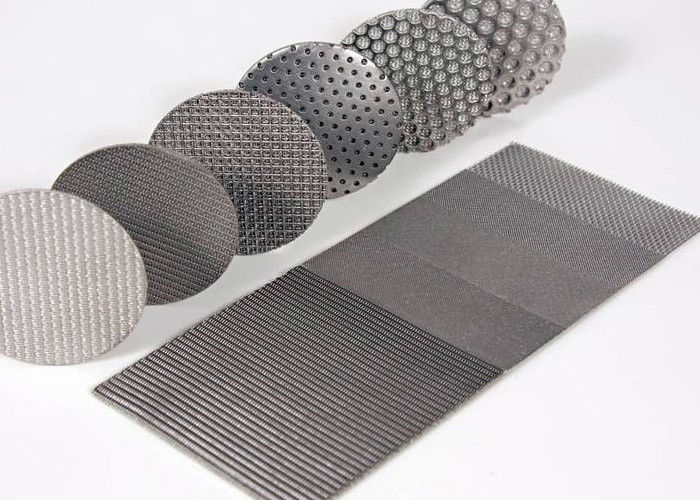

Sintered mesh Product:

Sintered mesh is manufactured from one layer or multiple layers of woven wire meshes by a "sintering" process. The single layer woven wire mesh is first roller flattened uniformly, to ensure good contact at the wire cross over points. Then the single layer or more layers of this calendered mesh are then laminated by special fixtures under mechanical pressure in high temperature furnace, which is filled with proprietary inset gas and the temperature is raised to a point where sintering (diffusion-bonded) occurs. After controlled-cooling process, the mesh has become more rigid, for all the contact points of individual wires bonding to each other. Sintering improves the characteristics of woven wire mesh through the combination of heat and pressure. Sintered mesh can be single layer or multiple layer, according to filtration need, one layer of perforated metal can be added to reinforce the whole structure.

Sintered mesh Feature:

• High mechanical strength and accurate precision.
• High permeability.
• Low pressure drop.
• Wide filter rating ranges for choice.
• Easy to backwash.
• Can used for uniform filtration in high pressure or high viscosity environment.
• Easy to be welded, sheared into various shapes.
• Corrosion and rust resistance.
• Durable and long service life.

Sintered mesh Specification:

• Material: Stainless steel, alloy steel hastelloy, monel, inconel.
• Mesh layer number: 1-7 layers.
• Filter rating: 1-100 micron.
• Heat resistance: up to 480 °C.
• Type: Sintered plain woven mesh, sintered dutch woven mesh, sintered perforated mesh.
• Shape: Disc, oval, ring, square, tube, pleated, cone, special shape, etc.

Sintered mesh Applications:

sintered-mesh-aeration-pads

sintered-mesh-extractor

sintered-mesh-coffee-filter
