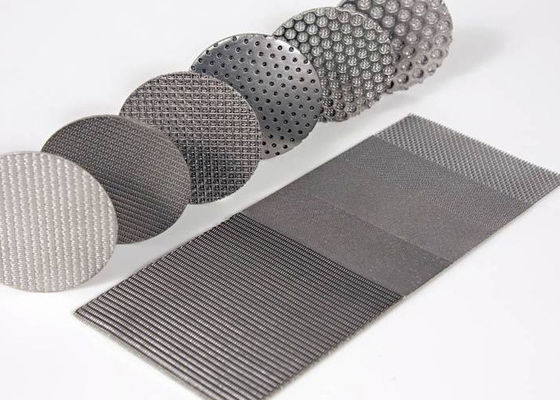

5 Layer Stainless Steel 304 Sintered Mesh 1-100 Micron Filter

Sintered mesh is manufactured through a specialized sintering process that bonds multiple layers of woven wire meshes under high temperature and pressure, creating a durable and precise filtration material.

Our sintered mesh begins with single or multiple layers of woven wire mesh that are roller-flattened for uniform contact points. These layers are then laminated under mechanical pressure in a high-temperature furnace filled with proprietary inert gas. The controlled cooling process results in a rigid structure with bonded wire contact points, enhancing the material's filtration capabilities.

• Exceptional mechanical strength and precision accuracy
• High permeability with low pressure drop
• Wide range of filter ratings available (1-100 micron)
• Easy to backwash and maintain
• Stable performance in high-pressure or high-viscosity environments
• Can be welded and cut into various shapes
• Corrosion-resistant with extended service life

Note: The 6-layer sintered wire mesh adds one layer of 12 mesh to the 5-layer structure, increasing thickness to 3.5 mm and enhancing anti-pressure capability.

• Stainless steel, alloy steel, hastelloy, monel, inconel
• 1-7 mesh layers available
• Heat resistance up to 480°C

Ideal for diffuser screens, centrifuges, breather vents, fluidized beds, chromatography, polymer processing, petrochemical applications, hydraulic filters, and various industrial filtration systems.
