Green Hot Dipped Galvanized Triple Point Palisade Fencing With Angle Pale For Good Security

Large Image : Green Hot Dipped Galvanized Triple Point Palisade Fencing With Angle Pale For Good Security

Product Details:

Place of Origin:	China
Brand Name:	Cittimesh

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Packing in cartons or wooden cases
Delivery Time:	10-15days
Payment Terms:	L/C, T/T
Supply Ability:	In abundant supply

Contact Now

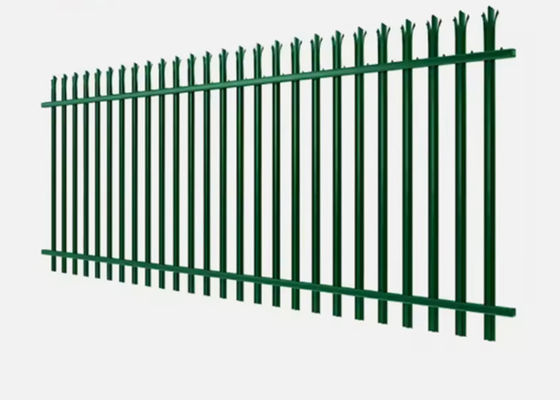

Green Hot Dipped Galvanized Triple Point Palisade Fencing With Angle Pale For Good Security

Description

Product:	Palisade Fence	Material:	Low Carbon Steel, Stainless Steel
Fence Height:	1.2m-3.0m	Fence Width:	2.75 M(17 Pales)
Top Point:	Triple Point, Single Point, Etc.	Angle Rail:	40x40mm, 50x50mm
W Pale Width:	62mm, 65mm, 68mm, 72mm	W Pale Thickness:	2-4mm
Common Color:	White, Black, Green, Yellow, Blue	Maximum Pale Spacing:	155 Mm For Corrugated Pales; 135 Mm For Angle Pales
Fence Gate:	Single Leaf Gate Or Double Leaves Gate	Accessories:	Fishplates, Post Clamps, Post Bracket, Bolts And Nuts.
Surface Treatment:	Hot Dipped Galvanized & Powder Coated
Highlight:	Angle Pale Palisade Fencing , Green Palisade Fencing , Triple Point Palisade Fencing

Hot Sale D and W type Colorful galvanized Steel Palisade Fence

Palisade Fence Product

Palisade Fence is one of security fencing series. It is popular in Europe, Africa, Australia, PNG, etc. Iit is widely used because of people's environment pursuit, publicity of personal cleanliness and pursuit of foreign style. Palisade fencing with beautiful structure and various styles are popular and widely used. Material for Palisade Fence is from hot formed and cold rolled steel belt,These belt offer both strength and rigidity combined with a long life span.

Palisade Fence Feature

Good security, sharp prongs threaten intruders.
High strength and damage resistance.
Easy installation and maintenance.
Various colors for perfect aesthetic effect.
Durable and long service life.

Palisade Fence Specification

Fence Height	1.2m-3.0m
Fence Width	2.75m (17 pales)
W Pale Width	62mm, 65mm, 68mm, 72mm
W Pale Thickness	2-4mm
Top Point	Triple Point, Single Point, etc.
Angle Rail	40x40mm, 50x50mm
Post Size (IPE)	100x55mm, 120x74mm, 100x68mm
Post Size (SHS)	80x80x3.0mm, 100x100x4.0mm
Accessories	M8x30 and M12x30mm bolts and nuts
Surface Treatment	Hot dipped galvanized & Powder coated
Color	Popular: RAL 9005 Black, RAL 6005 Dark Green, RAL 7016 Grey, etc.
Material	Hot formed and cold rolled steel belts

Table 1: Dimensions of General Palisade Fence and Security Palisade Fence

Item	Fence Height Above Ground (m)	Posts		Horizontal Rails (Rolled Steel Angle Section) (mm)	Pales		Type
Item	Fence Height Above Ground (m)	Rolled Steel Joist Section (mm)	Embedded Length (mm)	Horizontal Rails (Rolled Steel Angle Section) (mm)	Angle (mm)	Corrugated Sheet Thickness (mm)	Type
GPF-01	1.5	102 × 44	525	40 × 40 × 4	40 × 40 × 5	see table 2	general palisade fencing
GPF-02	1.8	102 × 44	525	40 × 40 × 4	40 × 40 × 5
GPF-03	2.1	102 × 44	625	45 × 45 × 4	40 × 40 × 5
GPF-04	2.4	102 × 44	725	45 × 45 × 4	40 × 40 × 5
SPF-01	3.0	127 × 76	925	50 × 50 × 6	-	see table 2	security palisade fencing

Table 2: Thickness of Palisade Fencing Pale

Item	Pale Profile	Type	Thickness (mm)
PFP-01	corrugated "W" section	general palisade fencing	2.5
PFP-01	corrugated "W" section	security palisade fencing	3.0
PFP-02	corrugated "D" section	general palisade fencing	3.0
PFP-02	corrugated "D" section	security palisade fencing	3.9

Palisade Fence Application

Palisade fence is mainly used in school,park,residence,yard,factory,farm,Building,construction site,development zone and so on.

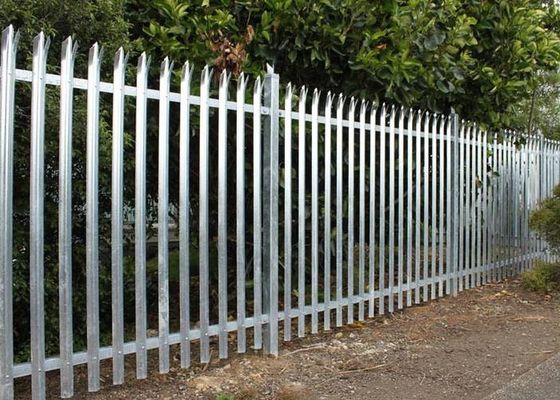

Palisade fence for yard

Palisade fence for factory

Palisade fence for Building
