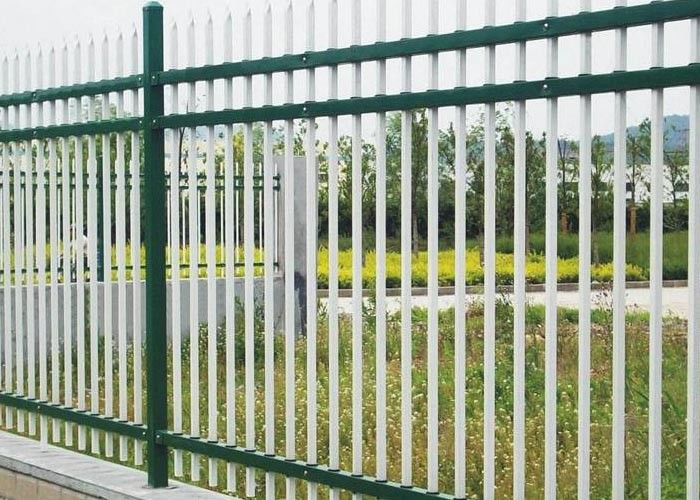

Garrison Metal Wire Fence Hot Dip Galvanized Steel Strip

Garrison Fence – Never Rust & Easy Installation & Cost-Effective

Garrison Fence Product

Garrison fence uses hot dip galvanized steel strip as basic material, after welding with high-frequency welding technology. The finished product solves the shortcomings of wrought iron fence easily corroded, and it is cheaper than stainless steel fence. After complex physical and chemical reaction, the alloy layer is integrated with pure zinc layer and steel tube matrix. The surface of hot dip galvanized steel tubular fence can reach 30 years without any treatment in the wild environment. But that is not enough, the finished products with anti - oxidizing powder electrostatic spraying enhances the anti-oxidation and weather resistance of the fencing.

These fences often have a strong and robust design, with reinforced panels and posts to withstand attempts at forced entry. The primary purposes of garrison fences are to deter unauthorized access, protect valuable assets, and maintain the security and integrity of the enclosed area. They are designed to create a physical barrier that prevents or delays unauthorized individuals from entering the protected space.

Overall, garrison fences play a crucial role in maintaining security and controlling access to sensitive areas, providing an additional layer of protection against intruders or potential threats.

Garrison Fence Feature

Garrison Fence Specification

• Material:Hot-dip galvanized steel strip.
• Type:Flat-top galvanized steel fence, spear-top steel picket fence, curved steel picket fence, special steel picket fence.

• Panel height:0.8–3 m.
• Panel width:2.4–3.0 m.
• Rails:32 × 32, 40 × 40, 45 × 45, 50 × 50, 38 × 38 mm, etc.
• Rail thickness:0.8–2.0 mm.
• Vertical picket
  • Square tube: 16 × 16, 19 × 19, 22 × 22 mm, etc.
  • Round tube: 22 × 22 mm.
  • Oval tube: 12 × 25 mm.
• Vertical picket thickness:0.8–1.5 mm.
• Picket center:110 mm.
• Post:50 × 50, 60 × 60, 65 × 65, 75 × 75, 80 × 80 mm, etc.
• Post thickness:1.2–2.0 mm.
• Hot-dip process

  • Galvanized after forming

    • Zinc coating: ≥ 92 g/m2.
    • Thermo setting coating containing zinc (interior surface): ≥ 0.3 mils.
    • Coverage rate of polymeric coating: ≥ 95%.

  • Galvanized prior to forming

    • Zinc coating for industrial applications: ≥ 276 g/m2.
    • Zinc coating for commercial and residential applications: ≥ 184 g/m2.
    • Polyester/epoxy and polyester combinations coating: ≥ 0.3 mils.
    • Polyolefin elastomer coating: ≥ 7 mils.
    • PVC coating: ≥ 10 mils.
• Yield strength:≥ 310 MPa.
• Connection type:Plug-in assembly.
• Color:Green, gray, blue, yellow, white, black, any color available according to customer's requirement.
• Package:Standard pallet with packaged into thin film, bubble film for unit inside, woven bag for unit outside, or according to your requirements.

Garrison Fence Application

Garrison Fence widely used as ornamental fence for industrial, agricultural, commercial, residential and municipal construction.

Garrison fence for commercial

Garrison fence for residential

Garrison fence for highway & railway roadside
