Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting

Large Image : Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting

Product Details:

Place of Origin:	china
Brand Name:	Citti Mesh
Model Number:	Architectural Rope Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	standard pallet with packaged into rolls by waterproof paper or bubble plastic film, or according to your requirements.
Delivery Time:	about 7 days.
Payment Terms:	T/T, L/C
Supply Ability:	Negotiable

Contact Now

Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting

Description

Material:	AISI 304, 304L, 316, 316L.	Surface Treatment:	Silver Or Black Oxide Finish.
Ferrule Material:	Tinned Copper, Nickel Plated Copper, Stainless Steel.	Structures Of Wire Cable:	7 × 7, 7 × 19.
Cable Diameter:	1.0–5.0mm	Diamond Sizes:	20–200mm.
Mesh Opening Angles:	20°, 30°, 60°, 70°, 75°. Mesh Aperture At 60° As Standard Opening.	Connection:	Knotted Or Ferrule
Highlight:	304L Architectural Rope Mesh , stainless steel wire rope mesh , AISI304 Architectural Rope Mesh

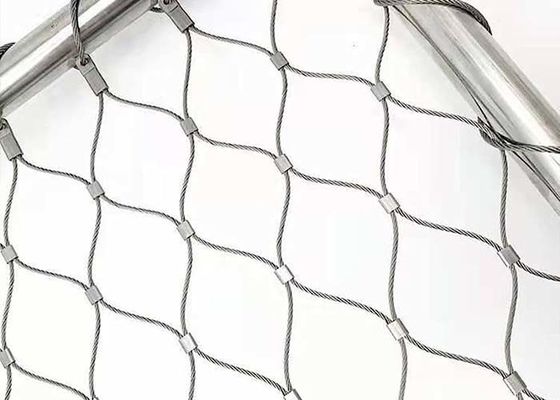

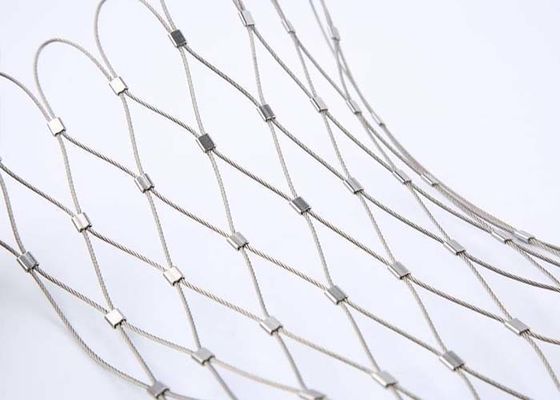

Architectural rope mesh is also stainless steel rope mesh called cable mesh, rope mesh, flexible wire rope mesh.

Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting

Architectural rope mesh made from stainless steel 304, 316 and 316L. The angle is usually 60°. Other angel also we can made according request. The rope net has a unique style and more strong security. The diamond hole pattern makes the mesh strong and durable. Different opening sizes can be customized to meet the different needs of customers. Widely used for zoo,The rope mesh are hand-made, there are two types.

Architectural rope mesh Benefits:

Made of stainless steel, has good corrosion resistance.
Flexible and strong.
High security.
Long lasting.
Easy to install.
High temperature resistance, maximum temperature 2300^oF.
Easy installation and low maintenance.
Weave opening, meet any exact specification.

Architectural rope mesh Specification:

Cable diameter		Mesh opening size		Nominal break
inch	mm	inch	mm	lbs.
1/8	3.2	2 × 2	51× 51	1600
3/32	2.4	3 × 3	76× 76	920
3/32	2.4	2 × 2	51× 51	920
5/64	2.0	2 × 2	51× 51	676
5/64	2.0	1-1/2× 1-1/2	38× 38	676
1/16	1.6	1-1/2× 1-1/2	38× 38	480
1/16	1.6	1× 1	25.4×25.4	480
3/64	1.2	1-1/2× 1-1/2	38 × 38	270
3/64	1.2	1× 1	25.4 × 25.4	270

Architectural rope mesh Applicable:

Stainless steel rope mesh is widely used in various fields, such as indoor staircase decoration, building outdoor wall decoration, zoo, railing, suspension bridge, anti-theft backpack protector.

Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting 0

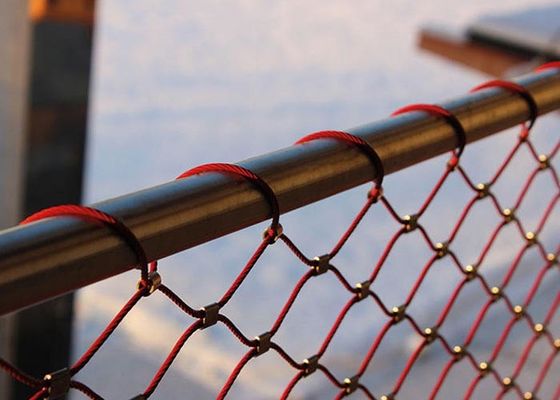

Architectural stainless steel rope mesh for indoor railing

Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting 1

Architectural stainless steel rope mesh for bridge balustrade in-fill

Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting 2

Architectural stainless steel rope mesh for fence

Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting 3

Architectural stainless steel rope mesh animal cage in zoo

Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting 4

Architectural stainless steel rope mesh for park safety mesh

Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting 5

Architectural stainless steel rope mesh for building decoration

Architectural Rope Mesh For Building Facade, Railing Filler Mesh, Fencing, Zoo Mesh,Helideck Perimeter Safety Netting 6

Stainless steel rope mesh for helideck perimeter safety netting
