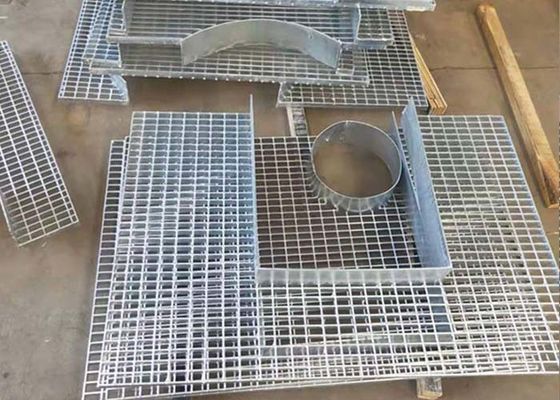

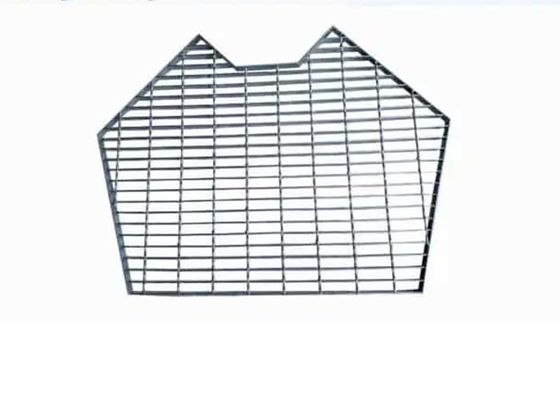

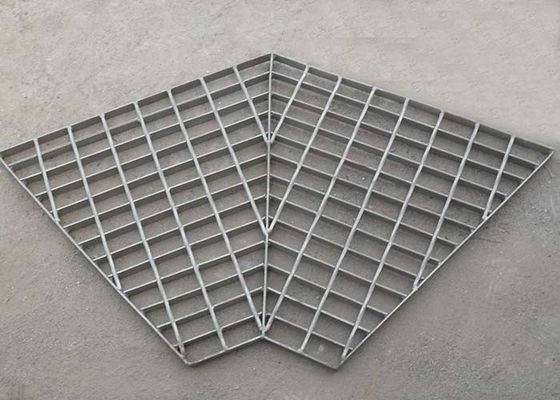

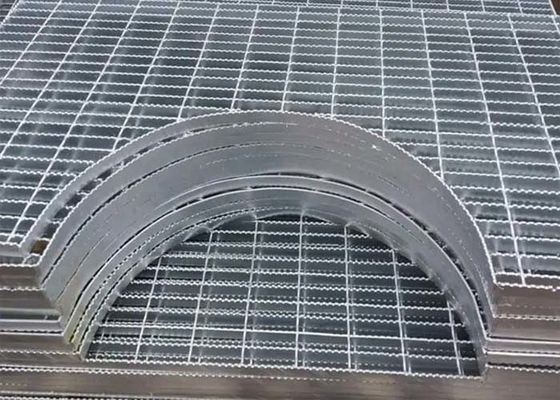

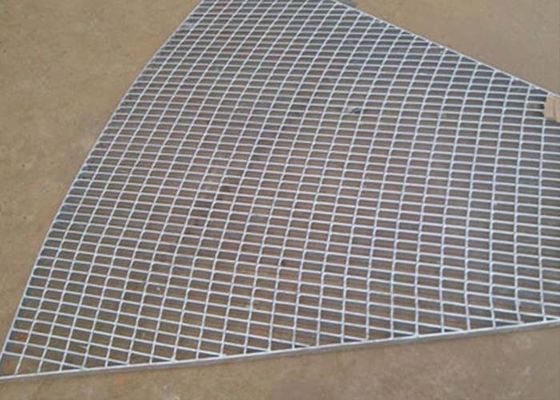

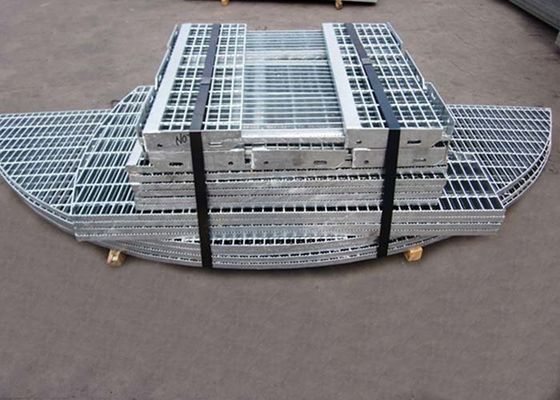

Irregular Special shaped steel grating has irregular, ring and sector type, for well cover, tree pool cover and industrial operating platform in factory.

Irregular Steel Grating with Special Shapes and for Special Use for Factory, Fountain, Pipeline, Tree Cover

Special shaped steel grating is based on the actual needs of customers to produce a variety of irregular shape of steel grating. Special shaped steel grating has anti-slip surface, high load bearing capacity, corrosion resistance. So it widely used as well covers, industry operating platform of factory and floors of fountain.

Special shaped Steel Grating Features & Characteristics:

• Avoid the destruction of galvanized layer.
• Non-slip, anti-corrosion.
• High load bearing capacity.
• Good drainage function.
• Easy to install and maintain.
• Different shapes meet different needs.

Special shaped Steel Grating Specification:

• Materials: Stainless steel or high quality Q 235 carbon steel.
• Surface treatment: Hot galvanized, cold galvanized, painted or stainless steel polished, pickled.
• Bearing bar (mm): 20 × 5, 25 × 3, 25 × 4, 25 × 5, 30 × 3, 30 × 4, 30 × 5, 32 × 3, 32 × 5, 40 × 5, (50,75) × 8, etc.
• Bearing bar pitch: 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65 mm, etc.
• Cross bar: 5 × 5, 6 × 6, 8 × 8 mm.
• Cross bar pitch: 40, 50, 60, 65, 76, 100, 101.6, 120, 130 mm or as customers requirement.

Special shaped Steel Grating Applications:

• Well cover.
• Tree pool cover.
• Industrial operating platform and pipeline platform of many kinds of factories.
• Fountain.
• Walkway.
• Pipe platform.
• Tank platform.

Irregular steel grating for platform

Irregular steel grating for  walk way

Irregular steel grating for offshore platforms

Irregular steel grating for water treatment plants flooring

Irregular steel grating for industrial flooring
