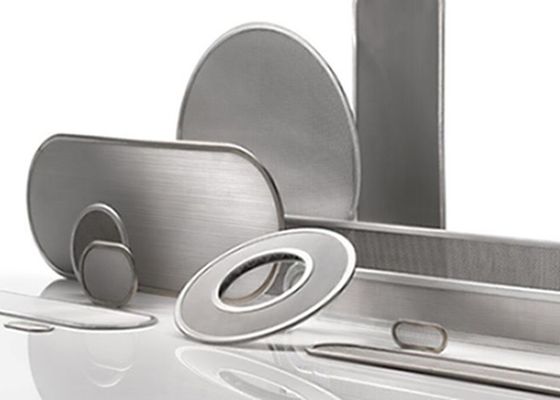

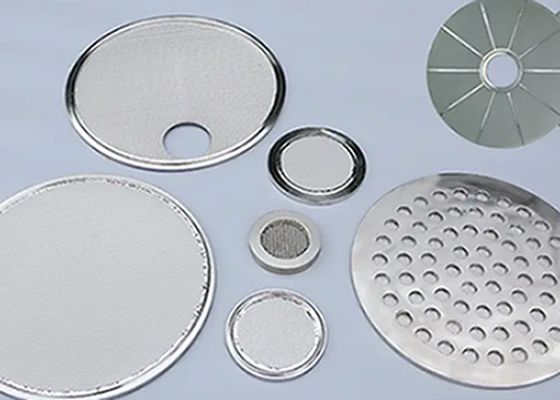

Stainless Steel 304 Leaf Disc Filter Screen Mesh 0.5-200 µm

Large Image : Stainless Steel 304 Leaf Disc Filter Screen Mesh 0.5-200 µm

Product Details:

Place of Origin:	China
Brand Name:	Cittimesh
Model Number:	Wire mesh or TP retainer

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Air bubble foam + wooden case
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	in abundant supply

Contact Now

Stainless Steel 304 Leaf Disc Filter Screen Mesh 0.5-200 µm

Description

Product:	Leaf Disc Filter	Material:	Stainless Steel 304, 316, 316L,sintered Wire Mesh, Sintered Metal Fiber Felt
Working Pressure:	≦31.7MPa	Working Temperature:	≦300℃
Medium Viscosity:	≦260Pa.s	Micron Rating:	0.5–200 µm
Porosity:	70%–85%
Highlight:	200um Leaf Disc Filter Screen Mesh , 0.5um Leaf Disc Filter Screen Mesh , Stainless 304 Leaf Disc Filter

0.5um–200um Leaf Disc Filter Screen Mesh Stainless Steel 304

Leaf Disc Filter maximizes the effective filter area, making it ideal for high-molecular polymer filtration and suitable for long-run operation.

Product Overview

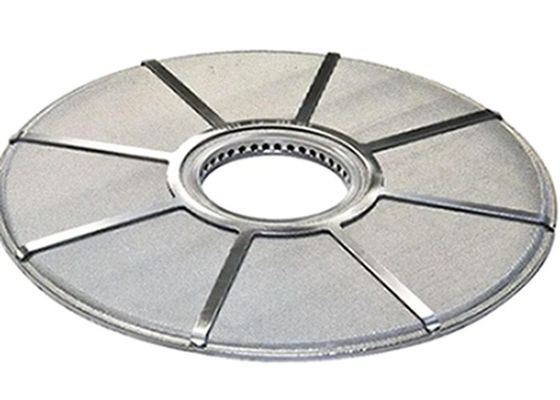

The leaf disc filter is constructed from sintered stainless steel (304, 316, 316L) wire mesh laminates or sintered metal non-woven felt medium, specifically designed for high-molecular polymer filtration. Its unique disc configuration maximizes the effective filter area while reducing polymer residence time, minimizing degradation risk and ensuring efficient polymer melt filtration. Engineered for durability, these filters offer high mechanical strength and are built for extended operational periods.

Key Features

High viscosity and large flow capacity
Reusable - can be washed repeatedly
Excellent mechanical strength
High filtration accuracy (0.5-200 µm)
Superior dirt holding capacity
Long service life
Corrosion and abrasion resistant

Technical Specifications

Product	Leaf disc filter
Material	Stainless steel 304, 316, 316L, sintered wire mesh, sintered metal fiber felt
Working pressure	≤31.7MPa
Working temperature	≤300℃
Medium viscosity	≤260Pa.s
Micron rating	0.5-200 µm
Porosity	70%-85%
Outside diameter	177.8-304.8 mm
Inner diameter	72.5 mm (max.)
Overall thickness	6.5-10.5 mm

Applications

Optical films
Protective films
Electric films
Polycarbonate granulation
Compound processing
Food processing
Chemical processing
Beverage production
Water treatment systems

Used in food, chemical, beverage, waste, and water treatment industries

Used in food, chemical, beverage, waste, and water treatment industries
