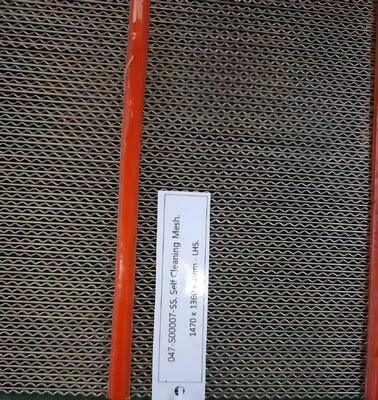

Self-Cleaning Mining Screens

Self-cleaning screen meshes are specifically deployed in environments where traditional woven wire or polyurethane panels fail due to clogging, blinding, or pegging. Their main job is to keep production moving continuously when dealing with high-moisture, sticky, or oddly shaped materials.Engineered from durable materials like high-carbon, spring, or stainless steel wire, self-cleaning screens offer an efficient solution for demanding aggregate processing.

How They Work

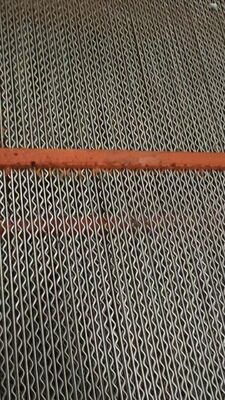

Unlike traditional rigid meshes, these screens are specifically designed to prevent ore, rocks, and debris from getting trapped. By utilizing irregular mesh geometries—typically diamond or wave patterns—the screen inherently minimizes particle wedging.

Self Cleaning Screen Mesh Feature

• Independent Wire Vibration: The individual wires vibrate autonomously. This movement, paired with a larger open area than standard square-mesh alternatives, significantly boosts overall throughput and productivity.

• Zero Manual Maintenance: Because material passes through freely without clogging or binding, operations can run continuously without the need for manual clear-outs.

• High Performance on Difficult Materials: While they require a higher initial investment, their ability to eliminate blinding and damp-material buildup makes them the ideal choice for challenging screening environments.

Self Cleaning Screen Mesh Specification

1. Material:
   High-Carbon Steel / 65Mn Manganese Steel: The industry standard for abrasive rock and mining applications due to its excellent wear resistance.
   Spring Steel Wire: Offers great elasticity and tensile strength, helping individual wires flex and snap back to shake off debris.
   Stainless Steel (304, 316): Best suited for highly corrosive environments, wet chemical processing, or high-temperature applications (e.g., asphalt plants).
2. Wire diameter: 1.2–5 mm.
3. Edge: Hooked edge is available.
4. Wire type: Straight wire, crimped wire, diagonal wire, and diagonal wire + straight wire.

Self Cleaning Screen Mesh Application

1. Primary Industry Applications

Mining and Mineral Processing

In large-scale mining operations, these screens process high volumes of raw extracted ore.

• Iron Ore, Copper, and Gold Mining: Used in secondary and tertiary screening stages where moisture or sticky clay components can quickly blind standard screens.

• Coal Washing & Processing: Coal naturally carries high moisture and fine dust. Self-cleaning harp or wave screens prevent fine coal particles from sticking together and blocking the deck.

Aggregate and Quarrying

Quarries rely heavily on these meshes to produce precise stone sizes for construction.

• Crushed Stone & Granite: Prevents flaky or elongated stones from "pegging" (wedging into the openings).

• Sand and Gravel Pits: Essential for separating damp sand from coarser gravel without the need for constant spray-water washing.

Infrastructure & Road Construction

• Asphalt Plants (RAP Recycling): Reclaimed Asphalt Pavement (RAP) contains sticky bitumen that gums up standard meshes when heated. High-temperature metal-tied self-cleaning screens keep the asphalt aggregate flowing.

• Topsoil & Compost Screening: Highly organic, damp, and fibrous materials are notorious for blinding screens. The independent wire vibration shakes off dirt and compost fibers easily.

2. Specific Material & Condition Challenges

Self-cleaning meshes are the go-to problem solvers for three specific material headaches:
