10 Line Wire Pipeline Reinforced Mesh For Offshore Oil Gas Strengthen Concrete Layer Of Pipeline

Large Image : 10 Line Wire Pipeline Reinforced Mesh For Offshore Oil Gas Strengthen Concrete Layer Of Pipeline

Product Details:

Place of Origin:	China
Brand Name:	CittiMesh

Payment & Shipping Terms:

Minimum Order Quantity:	1roll
Price:	42-70USD/roll
Packaging Details:	Packing by wooden or metal pallets. Also accept other package methods.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T
Supply Ability:	In abundant supply

Contact Now

10 Line Wire Pipeline Reinforced Mesh For Offshore Oil Gas Strengthen Concrete Layer Of Pipeline

Description

Product Name:	Offshore Pipeline Counterweight Welded Wire Mesh	Keyword:	Concrete Weight Coating Mesh,Pipeline Reinforced Mesh
Material:	Q235 Low Carbon Steel Wire	Surface Treatment:	Hot Dipped Galvanized
Amount Of Zinc:	Up To 300 G/m²	Wire Diameter:	1.6-2.85 Mm
Roll Length:	110-295 M	Line Wire Quantity:	6, 8 Or 10
Middle Line Wire Pitch:	25.4 Mm	Both Sides Line Wire Pitch:	25.4 Mm Or 50.8 Mm
Cross Wire Pitch:	67 Mm Or 92.4 Mm	Implementation Standards:	GB / T701, ASTM A641, GB / T1499.3, GB / T228, GB / T238, ASTM A370, ASTM A810, ASTM A185, ASTM A82, ASTM A1064
4 Types Pipeline Reinforced Mesh:	CT-N, CT-T, CT-L And CT-W
Highlight:	10 line pipeline reinforced mesh , Offshore pipeline reinforced mesh

Excellent corrosion and rust resistant performance, preventing concrete weight coated pipeline from being damaged during installation and after it is in place

Offshore pipeline counterweight welded wire mesh is also called concrete weight coating mesh, Pipeline reinforced mesh, is a line wire crimped special welded mesh. It plays the role of reinforcement, counterweight and protection for offshore oil and gas pipelines.

Offshore pipeline counterweight welded wire mesh material is low carbon steel with galvanized coating. It can either be cold galvanized wire or hot dipped galvanized wire meeting to ASTM and the line wires are deeply crimped and then welded to form a wave structure, making it easy to be coated with concrete and then submerged in water or earth. It has excellent corrosion and rust resistant performance, preventing concrete weight coated pipeline from being damaged during installation and after it is in place.

Offshore pipeline counterweight welded wire mesh feature

High tensile strength: Pipeline reinforced mesh is made of high-strength steel wires that can withstand the stress and pressure of pipeline construction.
Anti-corrosion, anti-rust: concrete weight coating mesh can be easily installed around the pipeline, providing a quick and efficient solution for strengthening the pipeline.
Enhanced Structural Integrity: With the concrete weight coating acting as a protective layer, pipes exhibit enhanced structural integrity, effectively preventing cracks, leaks, and other structural issues that may compromise the pipeline's performance.
Cost-effective: By choosing our concrete weight coating pipes, you make a wise investment in long-term cost savings. The extended lifespan, reduced maintenance needs, and enhanced durability of our pipes translate into significant cost savings over their operational lifetime.
Durable and long service life: Pipeline reinforced mesh is designed to withstand harsh environmental conditions, including extreme temperatures and weather conditions.
Good appearance: The appearance of Pipeline reinforced mesh is neat, regular, and bright. The mesh is tightly bound and firm. The solder joint is firm and convenient for transportation and stacking.

Offshore pipeline counterweight welded wire mesh specification

Material: Q235 low carbon steel wire.
Surface treatment: hot dipped galvanized.
Amount of zinc: up to 300 g / m².
Wire diameter: 1.6-2.85 mm.
Roll length: 110-295 m.
Line wire quantity: 6, 8 or 10.
Middle line wire pitch: 25.4 mm.
Both sides line wire pitch: 25.4 mm or 50.8 mm.
Cross wire pitch: 67 mm or 92.4 mm.
Implementation standards: GB / T701, ASTM A641, GB / T1499.3, GB / T228, GB / T238, ASTM A370, ASTM A810, ASTM A185, ASTM A82, ASTM A1064.
4 types pipeline reinforced mesh : CT-N, CT-T, CT-L and CT-W

Pipeline reinforced mesh specifications

Item	Line wire quantity	line wire wire diameter	Cross wire wire diameter	Middle line wire pitch	Both sides line wire pitch	Cross wire pitch	Mesh width	Roll length	Exposed Wire Edge
CT-N	6	2.3 mm 2.5 mm 2.6 mm 2.85 mm	2 mm 2.05 mm	25.4 mm	50.8 mm	67 mm	190.5mm	110-295 m	≤ 2.5 mm
CT-T	8			25.4 mm	25.4 mm	67 mm	190.5mm		≤ 2.5 mm
CT-L	8			25.4 mm	25.4 mm	92.4 mm	190.5mm		≤ 2.5 mm
CT-W	10			25.4 mm	25.4 mm	67 mm	241.3 mm		≤ 2.5 mm

Offshore pipeline counterweight welded wire mesh application

Pipeline reinforced mesh is commonly used in a variety of pipeline applications, including:

River Bottom Gas & Oil Pipeline: Pipeline reinforced mesh provides additional support and reinforcement to distribute the weight of the pipeline more evenly across the river or stream bed. This can help reduce the risk of damage to the river or stream bed.

Water and Wastewater Pipeline: This technique is highly effective in preventing corrosion in water distribution systems, sewage treatment plants, and desalination facilities.

Chemical Processing Pipeline: CWC lining with wire mesh safeguards pipelines in chemical plants, refineries, and petrochemical facilities, protecting them from aggressive chemicals and corrosive substances.

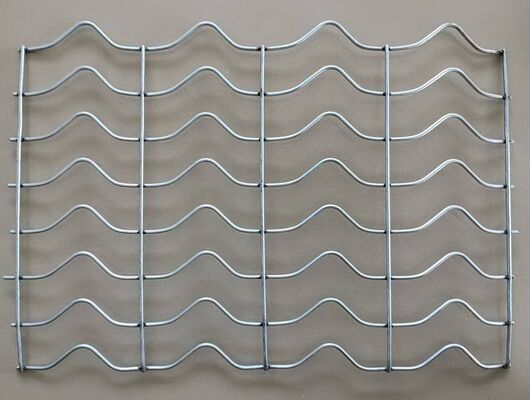

10 Line Wire Pipeline Reinforced Mesh For Offshore Oil Gas Strengthen Concrete Layer Of Pipeline 4

Pipeline reinforced mesh

10 Line Wire Pipeline Reinforced Mesh For Offshore Oil Gas Strengthen Concrete Layer Of Pipeline 5
