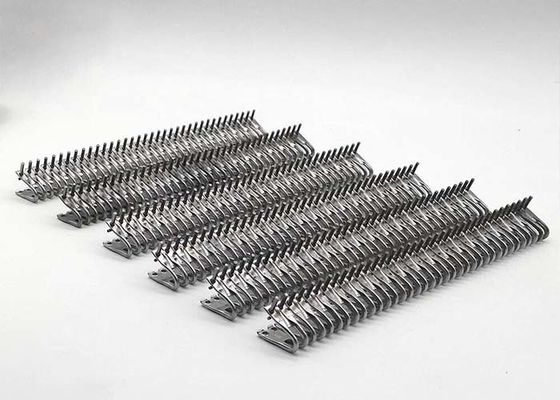

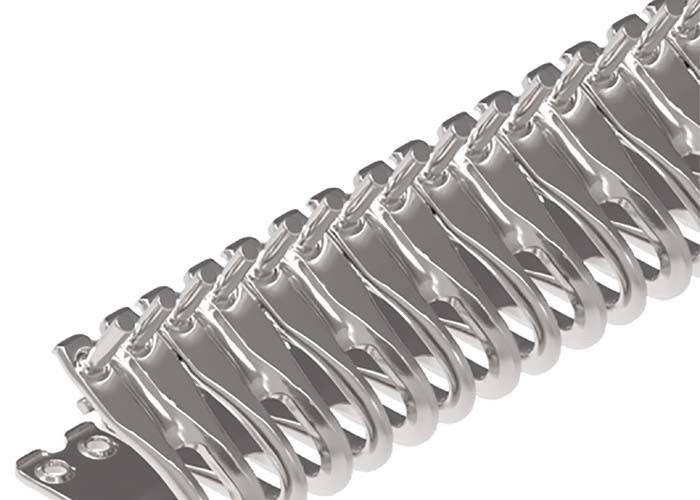

Heavy Plate Fastener Stainless Steel Hooks

Heavy Plate Fastener Stainless Steel Hooks

Heavy Plate Fastener Stainless Steel Hooks

Large Image : Heavy Plate Fastener Stainless Steel Hooks

Product Details:

Place of Origin:	China
Brand Name:	Citti Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Packing in cartons or wooden cases
Delivery Time:	a week
Payment Terms:	L/C,T/T
Supply Ability:	large supply

Contact Now

Heavy Plate Fastener Stainless Steel Hooks

Description

Product:

Heavy Plate Fastener

Material:

Stainless Steel

Highlight:

Heavy Plate Fastener Hooks

,

Stainless Steel heavy plate fastener

,

heavy plate fastener Stainless Steel

Heavy Plate Fastener Stainless Steel Hooks

Heavy Plate Fastener Stainless Steel Hooks/Lacing Material Wolfsbane Detachable

Heavy Plate Fastener, the High Performance Fasteners have been developed for very high wear applications such as spliced belts used in Round Balers. They are proven to be the highest performing splice on the market due to high strength and long splice life and will perform equally well in other applications.

The Heavy Plate Fastener fasteners are suitable for belts in the range of 4 - 7 mm thickness and Belt Strength up to 520kN/m.

Product Name	Product Number	Length/PC	Applicable Belt Thickness (BS)	Applicable Belt Thickness (CS)	Packing Quantity	Latch Length
Belt Buckle	16-Joint Buckle	164mm	5mm-6mm	6mm-7mm	12PC+6 Threading Pins	175mm
Belt Buckle	16-Joint Buckle	175mm	5mm-6mm	6mm-7mm	10PC+5 Threading Pins	185mm
Belt Buckle	17-Joint Buckle	186mm	5mm-6mm	6mm-7mm	10PC+5 Threading Pins	200mm
Belt Buckle	18-Joint Buckle	197mm	5mm-6mm	6mm-7mm	10PC+5 Threading Pins	208mm

Belt Buckle Features

One-piece buckle with high tensile strength
Short button body structure
The plate is formed and the joints are low and flat to reduce the obstruction of the conveyor belt operation
Made of stainless steel, resistant to acid, alkali and anti-magnetization

Installation

The hydraulic jack can easily install the heavy plate fasteners
The hydraulic jack replaces the conventional Vice by means of a pneumatically driven hydraulic Power Pack
The heavy plate fastener are pressed onto the belt directly

Heavy Plate Fastener Stainless Steel Hooks 0

Heavy Plate Fastener Stainless Steel Hooks 1
