Product Details:
|
Material: | Low Carbon Steel Or Galvanized Steel Wire. | Wire Diameter: | 2.0 Mm – 4.0 Mm. |
---|---|---|---|
Mesh Size: | 5 Cm × 5 Cm, 6 Cm × 6 Cm, 8 Cm × 8 Cm. | Roll Size: | 1 M × 10 M, 1.2 M × 10 M. Special Sizes Can Be Customized. |
Edge Type: | Knuckled Edge. | ||
Highlight: | Soft Mine Support Mesh,Flexible Mine Support Mesh,Firmly Attaching Mine Support Mesh |
Chain Link Mine Support Mesh – Soft and Flexible for Firmly Attaching

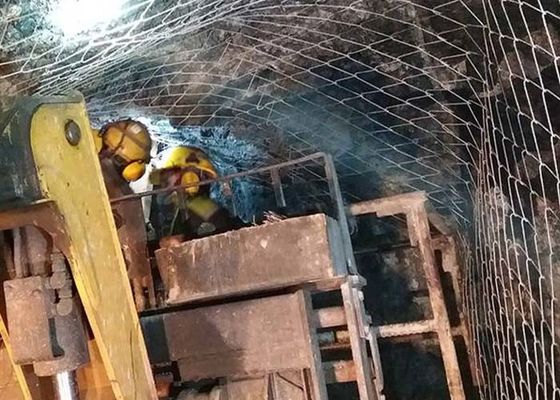

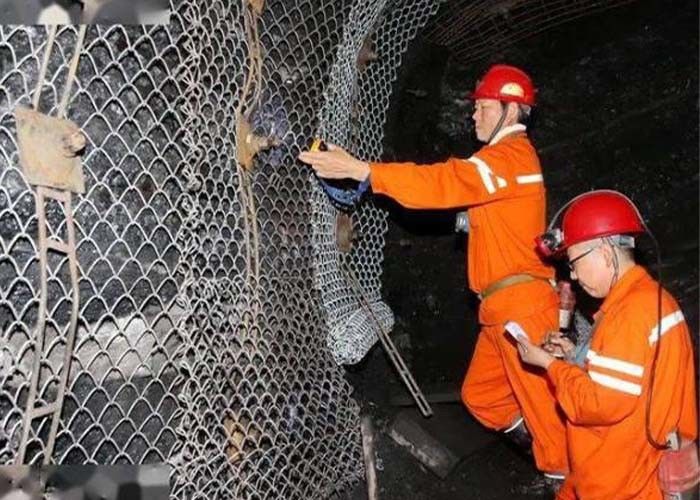

Chain link mine support mesh is the earliest steel wire mesh for coal mine supporting mesh. It is widely used as the artificial support, tunnel support and side support. The chain link mesh can also cover the mine to prevent minerals and other stones from falling down as mine security fence.
Chain link mesh is made of low carbon steel or galvanized steel wire, which has high tensile strength and high toughness. The galvanized steel wire is corrosion and rust resistance to withstand the complex environments to extend the service life. Compared with welded wire mesh or expanded metal mesh, the chain link mesh is flexible and soft for excellent protection performance.
Specifications of chain link mesh
Features of chain link mesh
Feature:
Galvanized chain link mesh is crocheted to be diamond shape, even if a piece of wire is broken, it can't affect other parts of the whole mesh. It solved the problem of easy loose and sagging on the roof protection when using coal and mine support and protected.
The specification of coal and mine chain link mesh as below:
Mesh | Wire dia. (BWG) | Weigth (kg/m2) | Mesh | Wire dia. (BWG) | Weight (kg/m2) |
1" | 10 | 5.87 | 2.4" | 8 | 3.7 |
1" | 12 | 3.89 | 2.4" | 10 | 2.48 |
1" | 14 | 2.24 | 2.4" | 12 | 1.62 |
1" | 16 | 1.38 | 2.4" | 14 | 0.95 |
1.5" | 10 | 3.9 | 2.75" | 8 | 3.15 |
1.5" | 12 | 2.6 | 2.75" | 10 | 2.1 |
1.5" | 14 | 1.5 | 2.75" | 12 | 1.38 |
2" | 8 | 4.45 | 2.75" | 14 | 0.81 |
2" | 10 | 3.0 | 3" | 8 | 2.9 |
2" | 12 | 2.0 | 3" | 10 | 2.0 |
2" | 14 | 1.1 | 3" | 12 | 1.3 |
2.25" | 8 | 3.9 | 3" | 14 | 0.75 |
2.25" | 10 | 2.7 | 4" | 8 | 2.25 |
2.25" | 12 | 1.8 | 4" | 10 | 1.5 |
2.25" | 14 | 1.0 | 4" | 12 | 0.97 |
4" | 14 | 0.55 |
Related products
Other types of coal mine supporting meshes are as follows, you can refer to them and find the perfect one suitable for your projects and get the comprehensive solution for mine security.
