Product Details:
|
Product: | Woven Gabion Baskets | Keyword: | Gabion Mesh |
---|---|---|---|
Colors: | Green,gray And Any Color Is Available Upon Your Request. | Materials: | Hot Dipped Galvanized Steel Wire ,heavy Galvanized Coating Steel Wire , Galfan Wires, PVC Coated Wires. |
Mesh Opening: | 60 × 80mm, 80 × 100mm And Other Customized Sizes. | Gabion Sizes: | 2 × 1 × 1 M, 1 × 1 × 1 M, 3 × 1 × 1 M And Customized Sizes. |
Surface Treatment: | Heavy Galvanization.Zinc Coating Plus PVC Coating.95% Zinc + 5% Al Alloy Coating.95% Zinc + 5% Al Alloy Coating Plus PVC Coating. | Gabion Height Type: | Gabion Box And Gabion Mattress. |
Available Minimal Rock Size: | 100 Mm – 250 Mm Dense And Durable Stone. | Length: | Maximum 6 M. |
Width: | Maximum 3 M. | ||
High Light: | woven gabion baskets 2 × 1 × 1 m,woven gabion baskets for river slope,gabion mesh baskets for river slope |

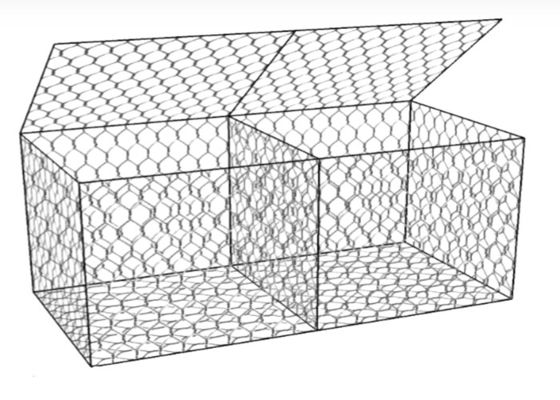

Woven Gabion Baskets Are Flexible, Durable and Versatile for River Slope
Woven Gabion Baskets product:
Woven gabion baskets are wire mesh containers that are filled with stones or other materials to create a strong and durable structure. They are commonly used in civil engineering projects for erosion control, retaining walls, and slope stabilization.
The baskets are typically made of galvanized steel or PVC-coated wire mesh, which provides corrosion resistance and longevity. The wire mesh is woven into a grid pattern, creating a flexible and sturdy structure that can withstand the forces exerted by the filling material.
To construct a woven gabion basket, the wire mesh is cut into panels and then folded and interconnected to form a box-like structure. The edges are laced or fastened together using wire or fasteners. Once the basket is assembled, it is filled with stones or rocks, which provide weight and stability.
Woven gabion baskets offer several advantages over other construction methods. They are relatively quick and easy to install, require minimal foundation preparation, and can adapt to uneven terrain. The flexibility of the wire mesh allows the baskets to conform to the shape of the ground, making them suitable for various applications.
Woven Gabion Baskets Features:
Woven Gabion Baskets Specification:
Product | Woven Gabion Baskets |
Materials | hot dipped galvanized steel wire ,heavy galvanized coating steel wire , Galfan wires, PVC coated wires. |
Colors | green ,gray and any color is available upon your request. |
Mesh Opening | 60 × 80 mm, 80 × 100 mm and other customized sizes. |
Gabion sizes | 2 × 1 × 1 m, 1 × 1 × 1 m, 3 × 1 × 1 m and customized sizes. |
Surface treatment | Heavy galvanization.Zinc coating plus PVC coating.95% Zinc + 5% Al alloy coating.95% Zinc + 5% Al alloy coating plus PVC coating. |
Gabion height type | Gabion box and gabion mattress. |
Available minimal rock size | 100 mm – 250 mm dense and durable stone. |
Length | Maximum 6 m. |
Width | Maximum 3 m. |
Height | 0.17 m, 0.21 m, 0.3 m, 0.5 m, 1 m, 1.5 m, etc. |
Mesh wire diameter | 2.0 mm – 4.0 mm. |
Lacing wire | 2.2 mm. |
Standard | ASTM A975-11 Standard Specification for Double–Twisted Hexagonal Mesh Gabions and Revet Mattresses. |
packaging |
Nude package,compacted before packaging. Plastic packaging outside on the pallet. |
Woven Gabion Baskets Applications:
Roadway and bridge protection
Slope protection
River bank protection
