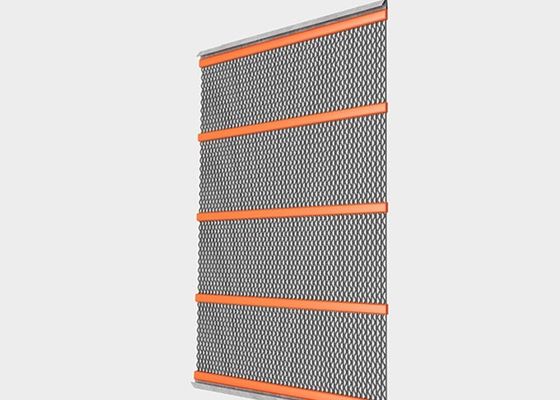

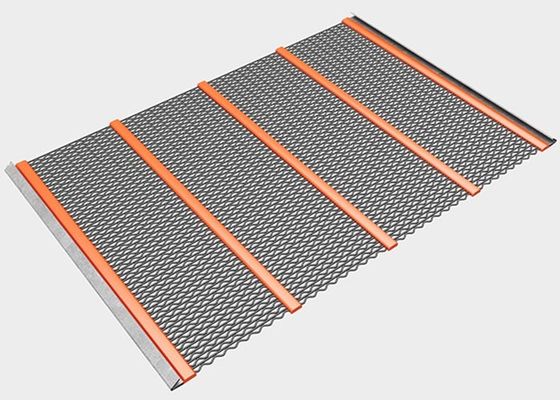

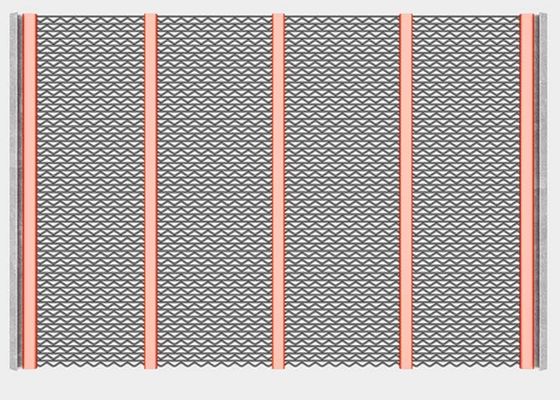

PU Support Strip Triangle Opening Self-Cleaning Screen - Diagonal Wire + Straight Wire Self-Cleaning Screen

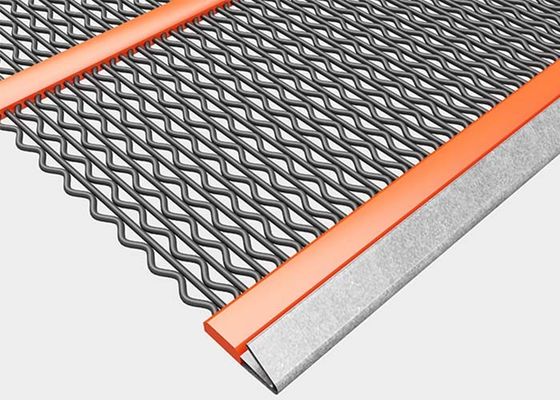

The triangular self-cleaning wire screen is specially designed to reduce blindness and blockage when the conventional square opening mesh cloth cannot be acceptable. The triangular self-cleaning wire screen is composed of straight metal wire and wavy metal wires. It is similar to the square self-cleaning screen. However, unlike the square self-cleaning screen, a straight metal wire is added between the wavy metal wires to support and improve its screening accuracy. The diameter of the straight wire is slightly larger than it of the wavy wire. The crimped wire can determine the size of the hole. Both straight and crimped wire is alternately woven with the tie wires on the longitudinal support rods. The longitudinal support rods are also called crossbands, which are made of woven metal wire or polyurethane. But polyurethane is not suitable for use in hot-mixed batch asphalt plant.

This self-cleaning screen has a high ability to withstand heavy loads (due to the addition of straight steel wire as support), and a good self-cleaning effect obtained by the natural vibration of the wave wires.

This screen effectively reduces blindness and blockage while maintaining self-cleaning.

Triangle Opening self Cleaning Screen Mesh Feature

• High bearing capacity, high strength.
• Wear resistance, corrosion resistance.
• Self-cleaning ability, less maintenance.
• Reduce the plugging.
• Various types of mesh opening.

Triangle Opening self Cleaning Screen Mesh Specification

1. Material: High carbon steel wire and stainless steel wire.
2. Wire diameter: 1.2–5 mm.
3. Edge: Hooked edge is available.
4. Wire type: crimped wire.

Triangle Opening self Cleaning Screen Mesh Application

Self-cleaning screens are widely used for material separation in mining industry, quarry industry, aggregate processing industry, chemical industry, sand, gravel and other industries. It is an ideal choice for separating and screening wet materials.

Self Cleaning Screen Mesh For Screening Gravel

Self Cleaning Screen Mesh For Screening Sand

Self Cleaning Screen Mesh For Mining

Self Cleaning Screen Mesh For Screening Stone
