High Strength Rib Lath Mesh Great Plaster Bonding Capacity

High Strength Rib Lath Mesh Great Plaster Bonding Capacity
High Strength Rib Lath Mesh Great Plaster Bonding Capacity High Strength Rib Lath Mesh Great Plaster Bonding Capacity High Strength Rib Lath Mesh Great Plaster Bonding Capacity High Strength Rib Lath Mesh Great Plaster Bonding Capacity

Large Image :  High Strength Rib Lath Mesh Great Plaster Bonding Capacity

Product Details:
Place of Origin: China
Brand Name: Citti Mesh
Model Number: Rib Lath
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: about 7 days
Payment Terms: L/C, T/T
Contact Now

High Strength Rib Lath Mesh Great Plaster Bonding Capacity

Description
Material: Galvanized Steel, Stainless Steel. Surface Treatment: Galvanized.
Rib Depth: 4-20mm Rib Distance: 75-150mm
Sheet Width: 200-700mm Sheet Length: 1500-2500mm
High Light:

high strength rib lath mesh

,

high bonding capacity rib lath mesh



Rib Lath With High Strength and Great Plaster Bonding Capacity

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.



Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties.



It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.



Rib Lath Feature



  • It offers great stiffness, high tensile strength and is not easy to break.
  • It provides ample keying for plastering.
  • Flexible structure can be bent and shaped at will.
  • Easy construction, it allow you save your time greatly while offering an even plastering surface.
  • Lightweight, easy to cut, bind and nail onto the keel light steel frame for easy and fast construction.



Rib Lath Specification

Rib Lath Specification Table
Type Code Rib Depth Rib Distance Sheet Size
3/4" High Rib Lath (High Rib Stay Form) CT-HR 3/4" 98 mm 27" × 97"
CT-HR3 19–20 mm 100 mm 200 mm width
CT-HR4 19–20 mm 100 mm 300 mm width
CT-HR5 19–20 mm 100 mm 400 mm width
CT-HR6 19–20 mm 100 mm 500 mm width
CT-HR7 19–20 mm 100 mm 600 mm width
CT-HR8 19–20 mm 100 mm 700 mm width
3/8" Middle Rib Lath CT-MRB5 10 mm 150 mm 600 x 2200–2500 mm
CT-MRB7 10 mm 100 mm 600 x 2200–2500 mm
CT-MRB9 10 mm 75 mm 600 x 2200–2500 mm
1/8" Flat Rib Lath CT-FRB5 4 mm 150 mm 600 x 2200–2500 mm
CT-FRB7 4 mm 100 mm 600 x 2200–2500 mm
CT-FRB9 4 mm 75 mm 600 x 2200–2500 mm



Rib Lath​​ Application



Rib lath is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.



High Strength Rib Lath Mesh Great Plaster Bonding Capacity 0

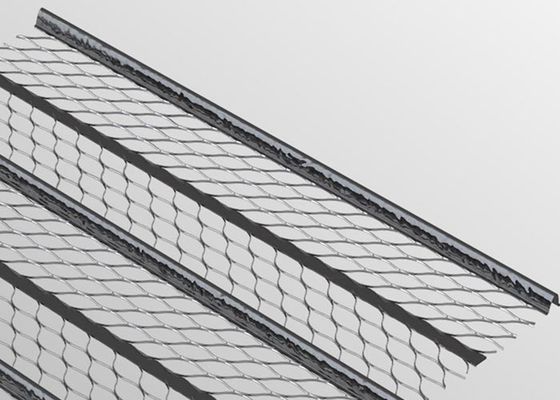

Rib Lath For Ceilings



High Strength Rib Lath Mesh Great Plaster Bonding Capacity 1

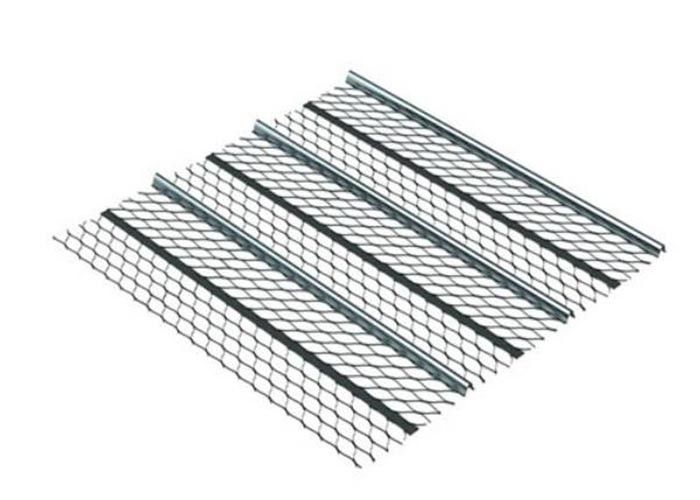

Rib Lath For Exterior Walls



High Strength Rib Lath Mesh Great Plaster Bonding Capacity 2

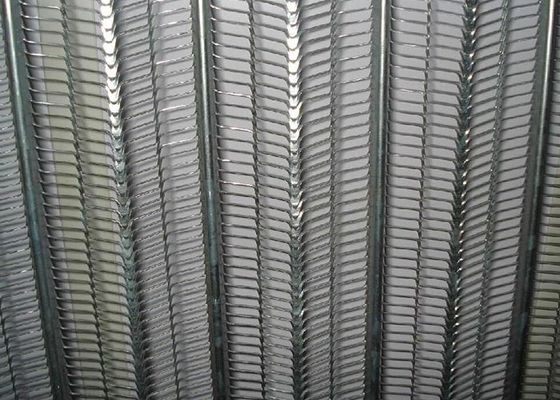

Rib Lath For Plaster Work
