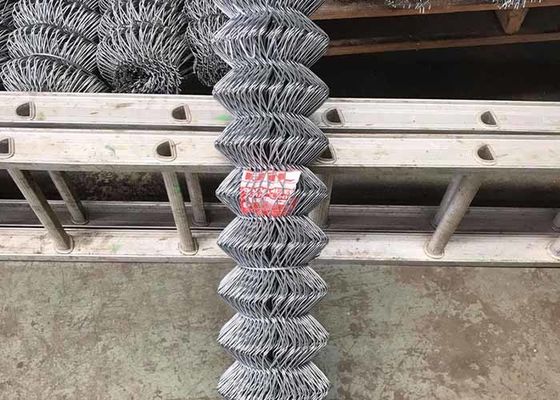

Multipurpose galvanized chain link fence rolls
Chain link mesh, known as chain link fencing or cyclone wire, is a fence made from woven galvanized wire, PVC coated steel wire, stainless steel wire or aluminium alloy wire. The wire is woven in a diamond shape pattern to form a strong and durable mesh that is available in a variety of heights, sizes and colours. Chain link fence rolls are relatively inexpensive, easy to install and are widely used around the world. It is mainly used for park fences, house fences, factory fences, sports field fences, airport fences, border fences etc.
Chain Link Fence Roll Features
- Durability: made of galvanized wire, stainless steel wire or aluminium alloy wire, the chain link fence rolls are able to withstand harsh environments without rusting or deforming for a long time.
- Good elasticity: the chain link mesh can withstand large impacts and recover quickly afterwards.
- Safety: it will not cause harm to people or objects, so chain link mesh is often used in sports fencing, park fencing, etc. If privacy slats are added or barbed wire is installed at the top, it can maintain privacy and prevent overtaking.
- Easy to install: Chain link fence rolls are easy to transport and simple to open and install, making them a popular choice for DIY fencing.
- Various sizes: Chain link fence rolls come in a variety of sizes, so it's easy to find the right one for your fencing needs.
Technical Parameters of Chain Link Mesh & Chain Link Fence Roll
- Material: Iron Steel wire, Stainless steel wire or Aluminium wire.
- Mesh Opening: 25 mm, 25 mm, 40 mm, 60 mm, 80 mm, 100mm
- Wire Diameter: 1.2 mm - 5.0 mm
- Tensile Strength: 300 - 480 N/mm2
- Chain Link Fence Roll's Width: 0.5 - 5.0 m
- Chain Link Roll's Length: 1 - 50 m
|
Chain Link Mesh
|
| Mesh Opening |
Wire Diameter |
Roll's Width |
Roll's Length |
|
12.7 mm (1/2")
19.05 mm(3/4")
25 mm (1")
40 mm (1.5")
50 mm (2")
55 mm (2.25")
60 mm (2.4")
65 mm (2.5")
76 mm (3")
100 mm (4")
|
1.2 - 5.0 mm
|
0.5 - 5.0 m |
1 - 50 m |
| The material, roll's height and roll's length of the chain link mesh can be customised |
Depending on the edge of the wire, there are three types of wire:
twisted-twisted chain link, knuckle-knuckle chain link and knuckle-twisted chain link.Knuckle edges avoid sharp tops, while twisted edges also known as barbed edges, offer greater security and are more widely used.
• Knuckle-Kunckle type chain link: the wire is knuckled at both ends andaddreviated as "KK" Type.
• Knuckle-Twisted type Chain Link: the wire is knuckled at bottom and twisted into "barbed" selvedge at the top and and addreviated as KT type or KB type.
• Twisted-twisted type chain link: The wire is twisted into "barbed" selvedge at both ends and andaddreviated as TT type or BB type.
Chain Link Fence Roll & Chain Link Mesh Application
The chain link fence rolls are easy to transport and can be unrolled smoothly after the user receives them. The chain link mesh is most often used in factory fences, park fences, airport fences, border fences, etc. It can also be used for slope protection to prevent rocks from rolling down, landslides, etc.
used as a safety fence
Chain link fence overpass
Used as a kennel
