Horizontal Welded Twin Wire Mesh Fencing 868/656/545

Horizontal Welded Twin Wire Mesh Fencing 868/656/545
Horizontal Welded Twin Wire Mesh Fencing 868/656/545 Horizontal Welded Twin Wire Mesh Fencing 868/656/545 Horizontal Welded Twin Wire Mesh Fencing 868/656/545 Horizontal Welded Twin Wire Mesh Fencing 868/656/545 Horizontal Welded Twin Wire Mesh Fencing 868/656/545 Horizontal Welded Twin Wire Mesh Fencing 868/656/545

Large Image :  Horizontal Welded Twin Wire Mesh Fencing 868/656/545

Product Details:
Place of Origin: China
Brand Name: CITTI MESH
Model Number: Double Wire Fence
Payment & Shipping Terms:
Minimum Order Quantity: 300m
Price: Volumetric pricing
Packaging Details: pallets or wooden box.
Delivery Time: 7 working days
Payment Terms: L/C, T/T
Supply Ability: Large supply

Horizontal Welded Twin Wire Mesh Fencing 868/656/545

Description
Material: Steel Wire Wire Diameter: 5/4/5 Or 6/5/6 Or 8/6/8mm.
Mesh Size: 50 × 200mm Fence Height: 0.63–2.63m
Post Section: 60×60×2mm Or 80×80×2mm. Colors: Green RAL 6005 Or Grey, White.
High Light:

horizontal welded twin wire mesh fencing

,

656 twin wire mesh fencing

,

horizontal 868 double wire fence

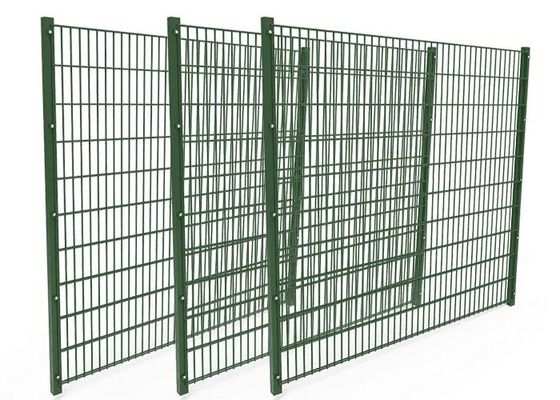

Double Wire Welded Fence Panels - 868/656/545 Mesh Fencing

Double wire mesh fence also called twin wire mesh fence is extremely strong and rigid mesh fence system with a special structure - double horizontal wire welded to single vertical wire - more endurable and stable than common fence. In other words, double wire fence panel has double horizontal large diameter rods attached on both sides of the panel. It is very popular to Europe market.



Double wire fence, also known as 656 wire fence/868 wire fence, is a specially designed welded wire mesh guardrail that welds double horizontal wires to a single vertical wire. Its unique structure makes it more stable and can withstand greater pressure and impact.

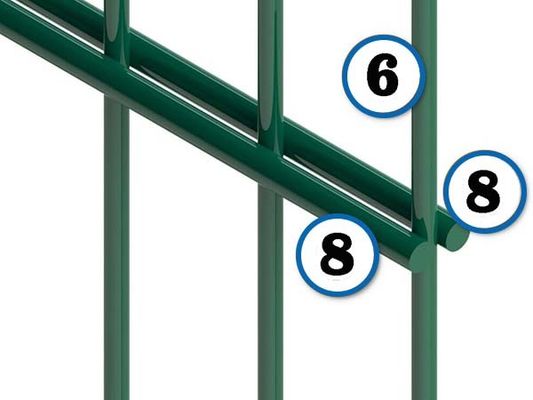

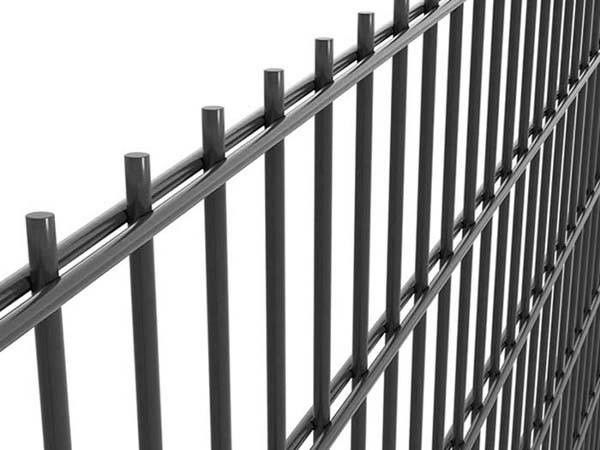

Sturdy 868 double wire fence is welded from 2 pieces of 8 mm horizontal wire and 1 piece of 6 mm vertical wire. We also manufacture 656 wire fence and 545 wire fence. In them, 868 wire fence is the most rigid and sturdy mesh, the recommend sizes is 868 and 656 welded mesh panels. Made from high quality low carbon steel wire, the double wire mesh fence often used as a premier fence for school play ground and industrial or commercial premises fencing where a strong mesh fencing system is required.

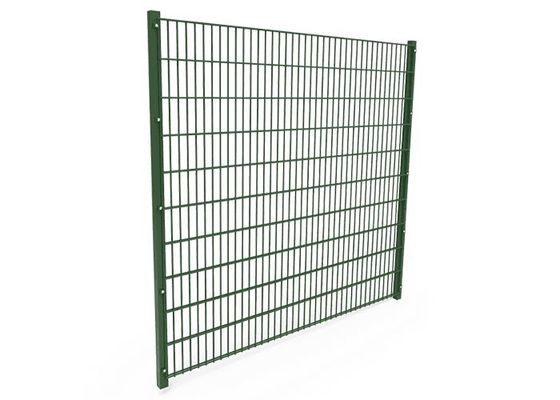

Twin 868 metal welded mesh panel fencing shown in the right picture is extremely strong and has excellent rebound properties making it an ideal choice for industrial and commercial areas, also perfect for sports grounds, such as ball court, tennis court areas and parks.

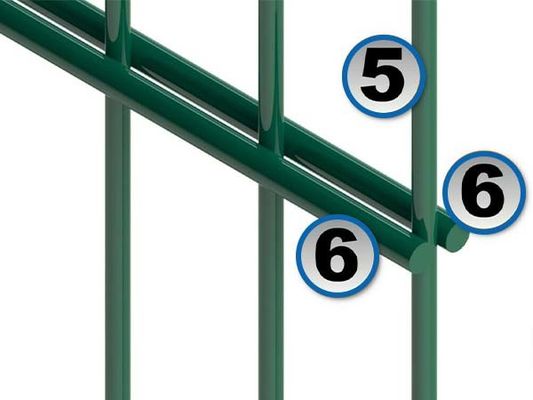

Twin wire 656 flat mesh panels differ from twin 868 mesh fence panels only in the thickness of the wires. 656 is a less expensive version of the very strong 868 mesh. However, 656 is still much stronger and more rigid than most mesh panel fencing. Twin 656 mesh panel fencing is versatile and becoming increasingly popular as a fencing for schools, fencing for colleges, and fencing for industrial and commercial areas. 545 wire fence also used for school and park fencing.





Double wire fence Features:



  • Flat surface, beautiful appearance.
  • It has both flat top and arch top design patterns for you to choose from.
  • Double horizontal wires are welded firmly to the vertical wire to form a ridge structure.
  • Its large mesh opening provides both high visibility and excellent security.
  • It provides a competitive price while maintaining high quality, rigidity and a long life service.
  • Its galvanized or powder coating surface give excellent rust & corrosion resistance to withstand various harsh environment conditions.
  • The galvanized and powder coating treatment allows the double wire fence working properly for nearly 10 years.
  • It has double horizontal wires to provide more rigidity and durability, so that it will not damage easily and require less maintenance.





Double wire fencing Specifications:



  • Wire diameter: 5/4/5 or 6/5/6 or 8/6/8 mm.Horizontal Welded Twin Wire Mesh Fencing 868/656/545 0
  • Mesh Size: 50 × 200 mm.
  • Fence height: 0.63–2.63 m.

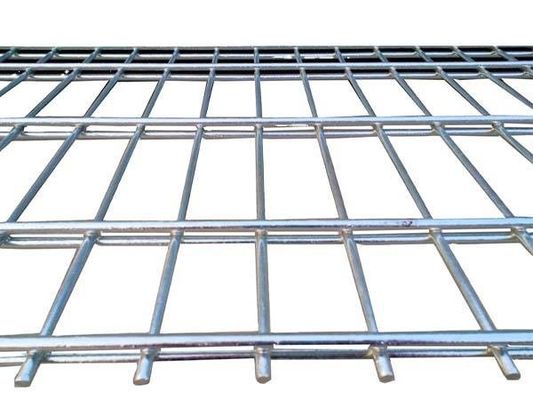

  • Surface treatment: Fence galvanized and coated with a polymeric composition coating does not fade in the sun and can withstand extremes of temperature. The electro galvanized level 20gram/square meter and hot dipped galvanized double mesh fence zinc level is 60gram-600gram/square meter.
  • Color: green RAL 6005 or grey, white.
  • Post section: 60 × 60 × 2 mm or 80 × 80 × 2 mm.
  • Mounting: clip or bracket with a through bolt.



Horizontal Welded Twin Wire Mesh Fencing 868/656/545 1





 Specification of Double Wire Fence



Wire diameter Mesh size Panel size
( Hight × Width ) (mm)
Pole height (mm) Pole type (mm) Fittings
8/6/8 mm
6/5/6 mm
5/4/5 mm
200 × 50 mm 630 × 2500 1100 Rectangular type pole
60 × 60 × 2
Non clip; rain cap
830 × 2500 1300
1030 × 2500 1500
1230 × 2500 1700 Rectangular Type pole
80 × 80 × 2
Steel clips, plastic clip; rain cap
1430 × 3000 1900
1630 × 3000 2100
1830 × 3000 2400
2030 × 3000 2600
2430 × 3000 2800
2530 × 3000 3000
2630 × 3000 3000



Double wire​ fence production process




Horizontal Welded Twin Wire Mesh Fencing 868/656/545 2



Double wire fence package



Horizontal Welded Twin Wire Mesh Fencing 868/656/545 3



Double wire fence Application



Double wire fence panel is used for the protection of objects with high security requirements, for example, to protect nuclear and hydroelectric power plants, airports, military warehouses, stadiums, shopping malls, railway. It is also usually as fencing wall for industry, public and administrative buildings, supermarkets, schools, sports, parks, and playgrounds facilities.





Horizontal Welded Twin Wire Mesh Fencing 868/656/545 4

Horizontal Welded Twin Wire Mesh Fencing 868/656/545 5



Double Wire Fence For Park Protection



Horizontal Welded Twin Wire Mesh Fencing 868/656/545 6



Double Wire Fence For Factory Protection



Horizontal Welded Twin Wire Mesh Fencing 868/656/545 7



Double Wire Fence For Residence Protection



Horizontal Welded Twin Wire Mesh Fencing 868/656/545 8



Double Wire Fence For School Protection



Horizontal Welded Twin Wire Mesh Fencing 868/656/545 9



Double Wire Fence For Stadium Protection



Horizontal Welded Twin Wire Mesh Fencing 868/656/545 10



Double Wire Fence For Yard Protection



Horizontal Welded Twin Wire Mesh Fencing 868/656/545 11



Double Wire Fence For Farm Protection
