3510 Anti Climb Mesh Fence 76.2mm x 12.7mm High Security Prison Wall

Large Image : 3510 Anti Climb Mesh Fence 76.2mm x 12.7mm High Security Prison Wall

Product Details:

Place of Origin:	China
Brand Name:	CITTI MESH
Model Number:	3510 FENCE

Payment & Shipping Terms:

Minimum Order Quantity:	100 m
Price:	Volumetric pricing
Packaging Details:	pallets or wooden box.
Delivery Time:	7 working days
Payment Terms:	L/C,T/T
Supply Ability:	Large supply

Contact Now

3510 Anti Climb Mesh Fence 76.2mm x 12.7mm High Security Prison Wall

Description

Material:	High Grade Steel For Maximum Strength And Rigidity.	Post Section:	60 × 60 Mm, 80 × 80mm, 100 × 100mm Or 120 × 120mm.
Post Plate Thickness:	2.5/3.0/4.0/5.0mm.	Post Cap:	Metal Caps Or Plastic Cap.
Finish:	Inside And Outside Galvanized (Min. 275 G/m2), Subsequently Covered With A Polymer Powder (Min. 60 Micron ).	Colors:	Green RAL 6005, Or Black RAL 9005.
Mesh Size:	76.2mm × 12.7mm	Height:	1.5 M,1.8 M, 2 M, 2.4 M, 2.7 M, 3.0 M, 4.0 M, 5.2 M.
Tensile Strength Of Wire:	500–750 N/mm2.	Process:	Strong And Durable Welding.
Highlight:	3510 anti climb mesh fence , prison welded anti climb mesh fence , 3510 security fencing anti climb

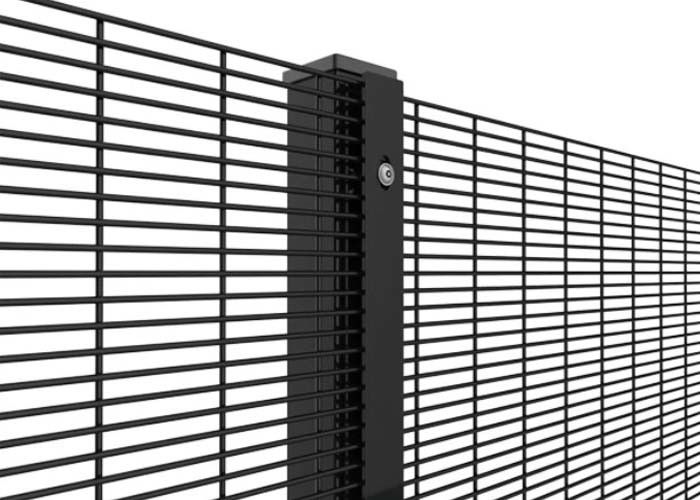

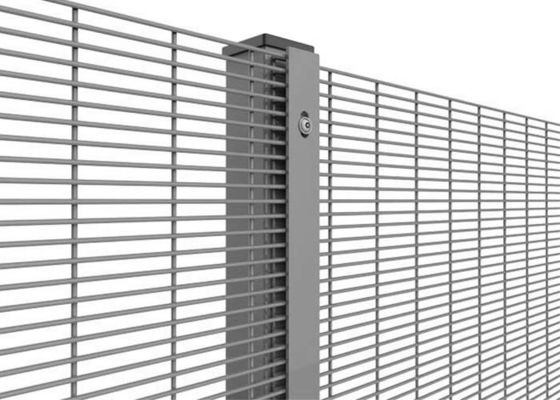

3510 Anti Climb Mesh Fence High Security Welded For Prison Wire Wall

Anti-climb 3510 Security fence is a special welded wire fencing panel with high strength, specifically designed for prison wire walls and other high-security applications. The welded security fence panel features small close mesh openings and horizontal wires that create an exceptionally robust fencing system.

Product Features

76.2 * 12.7 * 3.2 mm mesh size provides superior security against penetration using conventional hand tools

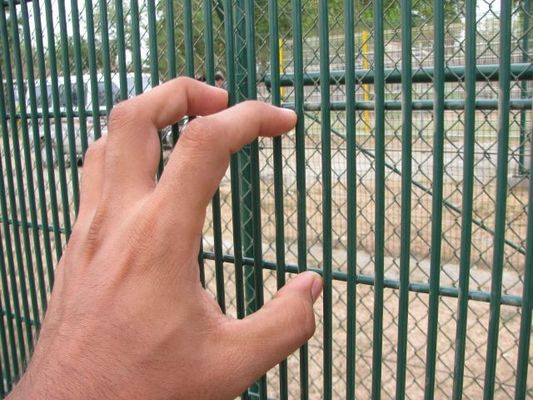

Small, narrow mesh openings eliminate toe or finger holds for anti-climbing protection

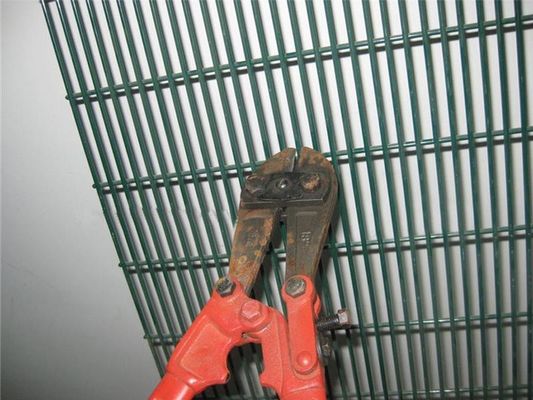

Robust wire and strength welded joints at every connection point for anti-cutting security
High strength construction while maintaining lighter weight than comparable security fencing
3.2 mm wire diameter offers excellent visibility for surveillance applications
Available with Galfan or powder coating for long-term corrosion protection

Technical Specifications

Mesh dimensions: 3" * 0.5" * 10 gauge (76.2 mm * 12.7 mm * 3.2 mm)
Material: High-quality low carbon steel wire
Wire tensile strength: 500-750 N/mm²
Manufacturing process: Precision welding for maximum durability
Standard fence lengths: 2 m, 2.5 m, 3.0 m
Available heights: 1.5 m to 5.2 m in various increments
Surface finishes: Galfan coated or electro-galvanized with powder coating in green, red, or black

Post and Fixing Systems

Angle Iron Posts: 70 * 70 * 6 mm or 100 * 75 * 8 mm hot-dipped galvanized posts with pre-drilled holes
Square Post System: 76 * 76 * 1.6 mm square tubular posts with inserts for panel attachment
All systems use stainless steel security bolts (M8 * 40 mm) with shear nuts for tamper-resistant installation
Post finishes available in Galfan coating or PVC coating in green, black, or red

Security Fencing Accessories

Optional Accessories

Production Process

Applications

The 3510 high security welded fence with anti-climb and anti-cut features provides superior deterrence for perimeter security. This welded extra high security fencing serves as an exceptional security barrier for:
