Product Details:
|
Composition: | Ni&Cu, Nickel Copper Alloy Mesh | Weave Type: | Plain And Twill Weave, Dutch Weave |
---|---|---|---|
Mesh Count: | From 1 To 350 Mesh | Melting Point: | 1300℃ To 1350℃ |
Wire Diameter: | 0.0016" To 0.250". | ||
High Light: | 350mesh monel wire mesh,marine monel wire mesh,chemical environment monel mesh |

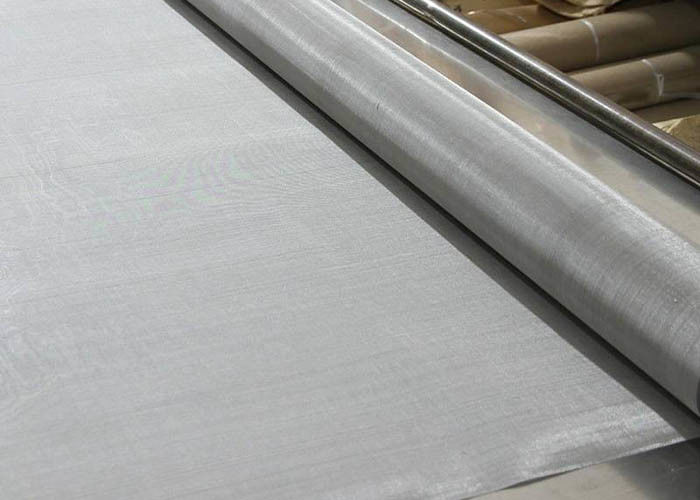

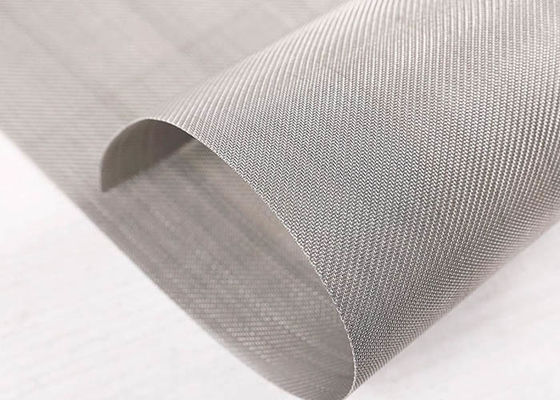

Monel Wire Mesh – Excellent for Marine and Chemical Environment
Monel series materials include Monel400,Monel401, Monel404, MonelR405 and Monel K-500. The most popular monel mesh is made of Monel 400 or Monel K-500.
Chemical Composition
Material | C | Mn | Si | S | Ni | Cu | Fe |
Monel 400 | ≤0.30 | ≤2.00 | ≤0.50 | ≤0.024 | ≥63 | 28.0~34.0 | ≤2.5 |
Monel 400 Wire Mesh significantly resists de-aerated hydrochloric acid and hydrofluoric acids. It provides broad resistance to stress corrosion cracking in the fresh water and other corrosion conditions. It shows intense mechanical features at the subzero temperatures and firmness and toughness. It doesn't exhibit ductile to brittle transformation when quenched to fluid hydrogen temperature level.
Table 2: Specifications of Monel 400 Wire Mesh | |||
Mesh | Wire Diameter | Opening (mm) | |
mm | inch | ||
2 mesh | 1.80 | 0.071 | 10.90 |
3 mesh | 1.60 | 0.063 | 6.866 |
4 mesh | 1.20 | 0.047 | 5.15 |
5 mesh | 0.91 | 0.036 | 4.17 |
6 mesh | 0.711 | 0.028 | 3.522 |
8 mesh | 0.610 | 0.024 | 2.565 |
10 mesh | 0.508 | 0.020 | 2.032 |
12 mesh | 0.457 | 0.018 | 1.660 |
14 mesh | 0.417 | 0.016 | 1.397 |
16 mesh | 0.345 | 0.014 | 1.243 |
18 mesh | 0.315 | 0.012 | 1.096 |
20 mesh | 0.315 | 0.0124 | 0.955 |
22 mesh | 0.315 | 0.0124 | 0.840 |
24 mesh | 0.315 | 0.0124 | 0.743 |
26 mesh | 0.295 | 0.0116 | 0.682 |
28 mesh | 0.295 | 0.0116 | 0.612 |
30 mesh | 0.274 | 0.011 | 0.573 |
32 mesh | 0.254 | 0.010 | 0.540 |
34 mesh | 0.234 | 0.0092 | 0.513 |
36 mesh | 0.234 | 0.0092 | 0.472 |
38 mesh | 0.213 | 0.0084 | 0.455 |
40 mesh | 0.193 | 0.0076 | 0.442 |
42 mesh | 0.193 | 0.0076 | 0.412 |
44 mesh | 0.173 | 0.0068 | 0.404 |
46 mesh | 0.173 | 0.0068 | 0.379 |
48 mesh | 0.173 | 0.0068 | 0.356 |
50 mesh | 0.173 | 0.0068 | 0.335 |
60 × 50 mesh | 0.193 | 0.0076 | - |
60 × 50 mesh | 0.173 | 0.0068 | - |
60 mesh | 0.173 | 0.0068 | 0.250 |
70 mesh | 0.132 | 0.0052 | 0.231 |
80 mesh | 0.122 | 0.0048 | 0.196 |
90 mesh | 0.112 | 0.0044 | 0.170 |
100 mesh | 0.012 | 0.004 | 0.152 |
120 × 108 mesh | 0.091 | 0.0036 | - |
120 mesh | 0.081 | 0.0032 | 0.131 |
140 mesh | 0.061 | 0.0024 | 0.120 |
150 mesh | 0.061 | 0.0024 | 0.108 |
160 mesh | 0.061 | 0.0024 | 0.098 |
180 mesh | 0.051 | 0.002 | 0.090 |
200 mesh | 0.051 | 0.002 | 0.076 |
220 mesh | 0.051 | 0.002 | 0.065 |
250 mesh | 0.041 | 0.0016 | 0.061 |
280 mesh | 0.035 | 0.0014 | 0.056 |
300 mesh | 0.031 | 0.0012 | 0.054 |
320 mesh | 0.031 | 0.0012 | 0.046 |
330 mesh | 0.031 | 0.0012 | 0.042 |
350 mesh | 0.031 | 0.0012 | 0.039 |
360 mesh | 0.025 | 0.00098 | 0.0385 |
400 mesh | 0.025 | 0.00098 | 0.0385 |
Material | C | Mn | Si | S | Ni | Cu | Ti | AL | Fe |
Monel k-500 | ≤0.25 | ≤1.50 | ≤0.05 | ≤0.01 | ≥63 | 27.0~33.0 | 0.35~0.85 | 2.30~3.15 | ≤2.0 |
Monel K500 Wire Mesh offers excellent resistance to corrosion as well as large strength and hardness. The strength of this alloy is retained up to 1200oF however it shows ductility and toughness up to 400oF. It has very high melting temperature of 2400oF to 2460oF. The Monel K500 alloy has almost three times higher yield strength and tensile strength as compare to Monel 400 mesh.
Features:
Superior corrosion resistance and acid-alkali resistance than stainless steel, High temperature resistance, high tensile strength and excellent hardness.
Applications:
Widely used in chemical and petrochemical industry and marine development. Seawater filtration, in the condition of acid, alkali, salt environment, chemical industry electrode, battery industry electrode, Electronic device shielding and so on. Customized, Acceptable as per your request.
For Sintered Filter Discs
For Burners Screen
