304 304L Rope Helideck Perimeter Safety Net Knotted Rope Mesh

304 304L Rope Helideck Perimeter Safety Net Knotted Rope Mesh
304 304L Rope Helideck Perimeter Safety Net Knotted Rope Mesh 304 304L Rope Helideck Perimeter Safety Net Knotted Rope Mesh

Large Image :  304 304L Rope Helideck Perimeter Safety Net Knotted Rope Mesh

Product Details:
Place of Origin: China
Brand Name: Cittimesh
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wrapped with plastic film, put into the wooden case.
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: In abundant supply

304 304L Rope Helideck Perimeter Safety Net Knotted Rope Mesh

Description
Product: Rope Helideck Safety Net Material: 304, 316, 304L, 316L Stainless Steel
Rope Diameter: 1.2 - 3.2mm, And Other Rope Diameters Are Also Available Rope Construction: 7 × 7, 7 × 19, 1 × 7, 1 × 19, Etc.
Width: ≥ 1.5m Mesh Type: Ferrule/knotted Rope Mesh, Square Rope Mesh
Border: Tubular Frame Package: Wrapped With Plastic Film, Put Into The Wooden Case
High Light:

304L Rope Helideck Perimeter Safety Net

,

304 Rope Helideck Perimeter Safety Net

,

Knotted Rope Mesh helideck net



Rope Helideck Safety Net – Up To 30 Years Service Life





Rope helideck safety net Product



Rope helideck safety net is a type of safety net that is specifically designed for use on offshore helidecks. Unlike the 316L stainless steel chain link helideck safety net, rope helideck safety net is made of high-strength synthetic fibers, such as polypropylene or nylon, which are resistant to UV radiation and marine environments.



The rope helideck safety net is installed around the perimeter of the helideck, and is designed to prevent personnel and equipment from falling off the deck during helicopter operations. The net is typically attached to the helideck structure using a series of stainless steel support cables, and is tensioned to provide a secure barrier.



Rope helideck safety net Feature



  • Firm and durable structure.
  • Highest corrosion resistance.
  • Light weight yet high strength.
  • Flexible and pliable.
  • Easy to install and long service life.



Rope helideck safety net Specification



  • Material:304, 316, 304L, 316LStainless steel.
  • Rope diameter:1.2–3.2mm, and other rope diameters are also available.
  • Rope structure:7 × 7, 7 × 19, 1 × 7, 1 × 19, etc.
  • Mesh type:Ferrule/knotted rope mesh, square rope mesh.
  • Width:≥ 1.5 m.
  • Border:Tubular frame.
  • Package:Wrapped with plastic film, put into the wooden case.

Table1: Rope Helideck Mesh of Diamond Opening

Item Rope structure Rope diameter Aperture Breaking force
Inch mm mm kN
RHD-1 7 × 19 1/8 3.2 120 × 208 7.38
RHD-2 7 × 19 1/8 3.2 100 × 173 7.38
RHD-3 7 × 7 3/32 2.4 70 × 121 4.18
RHD-4 7 × 7 5/64 2.0 80 × 139 3.17
RHD-5 7 × 7 5/64 2.0 70 × 121 3.17
RHD-6 7 × 7 1/16 1.6 60 × 104 2.17
RHD-7 7 × 7 1/16 1.6 51 × 87 2.17
RHD-8 7 × 7 3/64 1.2 51 × 87 1.22
RHD-9 7 × 7 3/64 1.2 40 × 69 1.22



Table2: Rope Helideck Mesh of Square Opening

Item Rope structure Rope diameter Breaking force
mm kN
RHS-1 7 × 7 1.5 1.7
RHS-2 7 × 7 2.0 2.5
RHS-3 7 × 7 2.5 3.9
RHS-4 7 × 7 3.0 5.6
RHS-5 7 × 7 4.0 10.7
RHS-6 7 × 19 5.0 13.7
RHS-7 7 × 19 6.0 20.5



Rope helideck safety net Application



Rope helideck safety net is commonly used in offshore, rooftop, hospital helipads. In addition, the stainless steel rope mesh is also widely used for indoor and outdoor decoration of buildings, such as: railing filling systems, zoo fences, tensile facades, safety nets and green wall systems.



304 304L Rope Helideck Perimeter Safety Net Knotted Rope Mesh 0

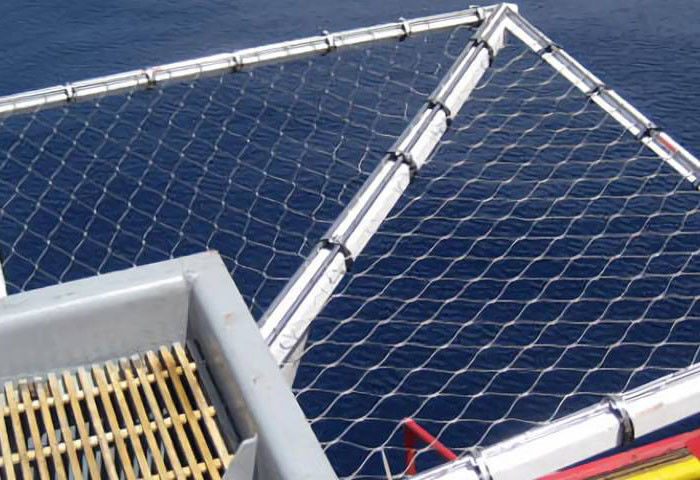

 Rope helideck safety net



304 304L Rope Helideck Perimeter Safety Net Knotted Rope Mesh 1

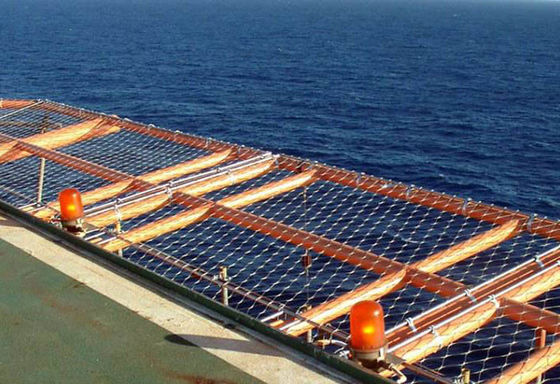

 Rope helideck safety net



304 304L Rope Helideck Perimeter Safety Net Knotted Rope Mesh 2



Rope helideck safety net
