Product Details:
Place of Origin: China
Brand Name: Citti Mesh
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packing in cartons or wooden cases
Delivery Time: a week
Payment Terms: L/C, T/T
Supply Ability: large supply

Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt

Description
Product Name: Eye Flex Conveyor Belt Material: Stainless Steel, High Carbon Steel, Galvanized Steel.
Open Area: 20% - 90%. Length: According To Your Requirements.
High Light:

Galvanized Eye Flex Conveyor Belt

,

Galvanized Eye Link Conveyor Belt

,

Stainless Eye Link Conveyor Belt



Eye Flex Conveyor Belt - Different Styles and Edge Types







Eye flex conveyor belt, also called eye link conveyor belt, is specially designed to conveying large and heavy products. It has large open area and rugged structure, which can ensure the long service life of eye flex convey belt.



Materials of eye flex conveyor belt are commonly stainless steel, high carbon steel and galvanized steel. They all have excellent corrosion and rust resistance performance, also they are high temperature resistance, which can be used in the high temperature applications.



Structure of eye flex conveyor belt


The eye flex conveyor belt is constructed by several strips. The strips are formed into eye shapes, and the several eye shape wires are connected by cross rod to form the eye flex conveyor belt.


The eye shape strips can be round wires or flat sheet. The round wire eye flex conveyor belt is the most common type and the flat sheet eye flex conveyor belt can be used to suit the special applications of customers.

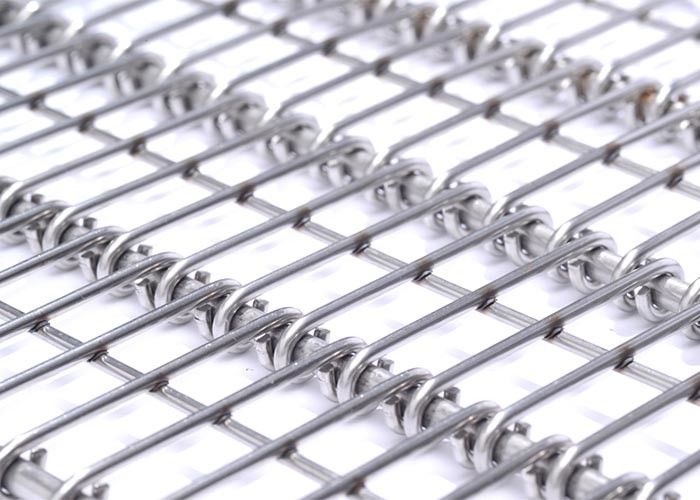

Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 0Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 1

               round wire eye flex conveyor belt.                                                            flat sheet eye flex conveyor belt.







Four types of eye flex conveyor belt


Except for the standard eye flex conveyor belt, there are three other types of eye flex conveyor belt for your choice. They have different characters, which can be used in different applications and suit different requirements of customers.



   Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 2



Eye flex conveyor belt ECB Without spacers



    Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 3



Eye flex conveyor belt EBUW With under welded wire spacing



Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 4



Eye flex conveyor belt EBRS With rings as spacers.



Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 5



           Eye flex conveyor belt EBSS With springs as spacers





  • Standard type eye flex conveyor belt. Standard type eye flex conveyor belt is the simplest type. There is not any spacers or welded wires on the standard type eye flex conveyor belt. This structure make it have large open area and excellent flow-through performance. Additional, the standard type eye flex conveyor belt is the most economical type, which can save cost for customers.
  • Conveyor belt with under welded wire spacing. Welded wires added onto the conveyor belt make the belt have high load capacity to load heavy products. It supplies the largest range of gap width.
  • Conveyor belt with rings as spacers. Rings are added onto spacers increase the belt gap. The gap width is determined by the number and wire diameter of rings. This structure make the belt have better air circulation
  • Conveyor belt with springs as spacers. This type of conveyor belt has the widest gap width, which has best air circulation performance. It supplies a more stable structure, which make the eye-link wires be able to move on the cross rods.



Four types of conveyor belt edge



There are four types of conveyor belt edge, they have different characters to be used in different applications.

  • Standard edge conveyor belt.
  • Reinforced edge conveyor belt.
  • Chain link edge conveyor belt.
  • Side guard edge conveyor belt.



123Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 6



standard edge eye flex conveyor belt.



  Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 7



 reinforced edge conveyor belt.



   Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 8

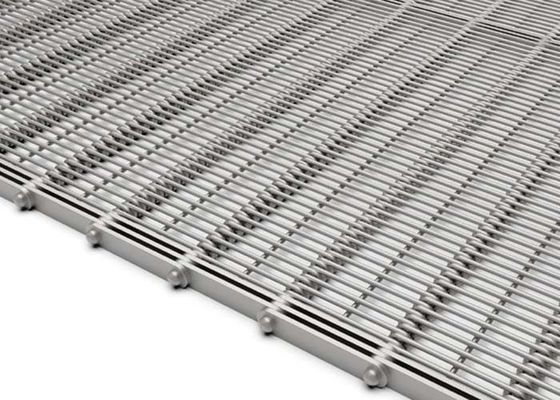

chain link edge eye flex conveyor belt.



 Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 9



 side guard edge eye flex conveyor belt.





Features of eye flex conveyor belt

  • Large open areas.
  • Flat carrying surface.
  • High load capacity.
  • High temperature resistance.
  • Various types for choice.
  • Different drive types.



 Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 10



For conveying cakes

Galvanized Eye Flex Conveyor Belt Stainless Eye Link Conveyor Belt 11

For conveying bread
