3" To 14" Metal Conveyor Belt Flat Flex Wire Mesh Conveyor Belt

Large Image : 3" To 14" Metal Conveyor Belt Flat Flex Wire Mesh Conveyor Belt

Product Details:

Place of Origin:	China
Brand Name:	Citti Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Packing in cartons or wooden cases
Delivery Time:	a week
Payment Terms:	L/C,T/T
Supply Ability:	large supply

Contact Now

3" To 14" Metal Conveyor Belt Flat Flex Wire Mesh Conveyor Belt

Description

Materials:	Quality Spring Steel AISI 1060; Stainless Steel Wire 302, K2930. Other Materials Can Be Customized.	Open Area:	67.5% To 86%.
Wire Diameter:	0.9mm - 2.35mm. Special Specs Are Available.	Pitch:	4.24mm - 20.32mm. Other Pitches Can Be Customized.
Belt Width:	3" To 14' Or Custom Width As Your Request.
Highlight:	14" Metal Conveyor Belt , Metal Conveyor Belt Flat Flex , Flat Flex Wire Mesh Conveyor Belt

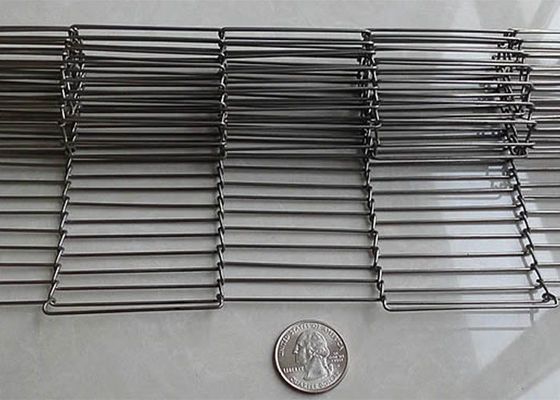

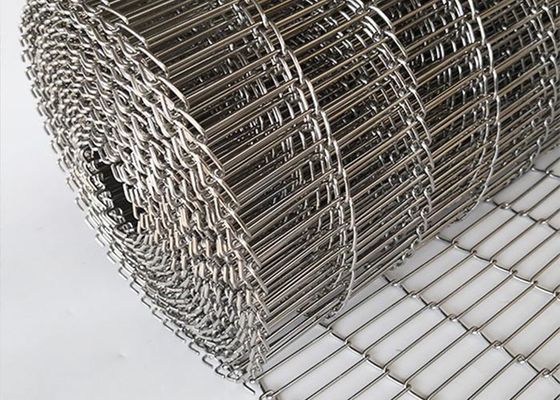

3" To 14" Metal Conveyor Belt Flat Flex Wire Mesh Conveyor Belt

Flat Flex Conveyor Belt with Various Edge and Drive Types

Flat flex conveyor belt is the simplest type among all steel mesh conveyor belts. Available in stainless steel, high carbon steel, galvanized steel and other steel wire materials.

Wire diameters range from 0.9mm to 3.2mm, with pitches from 4mm to 22.23mm, and belt widths from 10mm up to 3 meters. The simple structure makes it economical and lightweight, helping to save costs and reduce downtime.

Three Types of Flat Flex Conveyor Belt Edge

The flat flex conveyor belt can be formed into different edge types to suit various equipment and drive requirements:

Single loop edge
Double loop edge
C-shaped loop edge

Single loop edge

Double loop edge

C-shaped edge

Drive Types for Flat Flex Conveyor Belt

Available drive methods include:

Metal idler wheel
Nylon idler wheel
Chain links
Sprocket wheel

Key Features

Large open area
Economical
Lightweight
High temperature resistance
Good air circulation
Easy to clean with low maintenance
Durable with long lifespan
Multiple edge options
Barriers can be added
Various drive types available
Curved rod network belt for different machines

Technical Specifications

Item	Wire diameter (mm)	Pitch (mm)	Open area (%)	Edge type
BFFCB-01	0.9	4.24	77	Single/double
BFFCB-02	0.9	5.64	82	Single/double
BFFCB-03	1.0	5.5	79	Single/double
BFFCB-04	1.0	5.6	79.5	Single/double
BFFCB-05	1.27	4.3	67	Single
BFFCB-06	1.27	5.5	73	Single/double
BFFCB-07	1.27	6.0	76	Single/double
BFFCB-08	1.27	6.35	77	Single/double
BFFCB-09	1.27	7.26	80	Single/double/C-shape
BFFCB-10	1.40	6.40	76	Single/C-shape
BFFCB-11	1.60	7.26	75	Single/double/C-shape
BFFCB-12	1.83	12.00	81	Single
BFFCB-13	1.83	12.70	82	Single/C-shape
BFFCB-14	2.08	9.60	75	Single/C-shape
BFFCB-15	2.35	12.70	78	Single/C-shape
BFFCB-16	2.35	20.32	85	Single
BFFCB-17	2.80	12.70	72	Single/C-shape

Common Food Industry Applications

Snacks

Fish

Pizzas

Vegetables

Bread

Pastry

Meat

Candy

Potatoes

Biscuits

Chocolate

Nuts and fruits

Food transport application

Frying application

Battering and breading application
