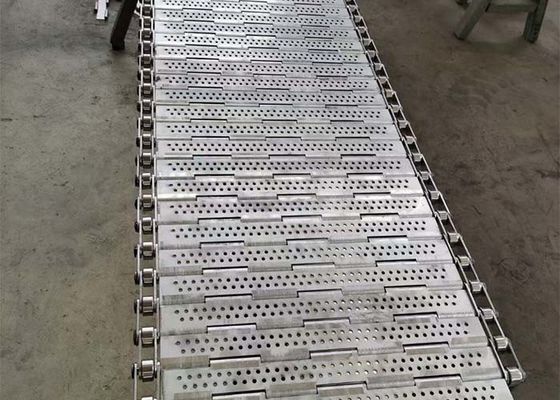

Stainless Steel Perforated Conveyor Belt 1mm-4mm Plate Thickness

Perforated plate conveyor belt is made of stainless steel plate, which is perforated into several round holes plate. The stainless steel plate has outstanding chemical stability, which is corrosion, rust and temperature resistance. Stainless steel perforated plate conveyor belt is stable and long service life, which is suitable for conveying high density and slight products.

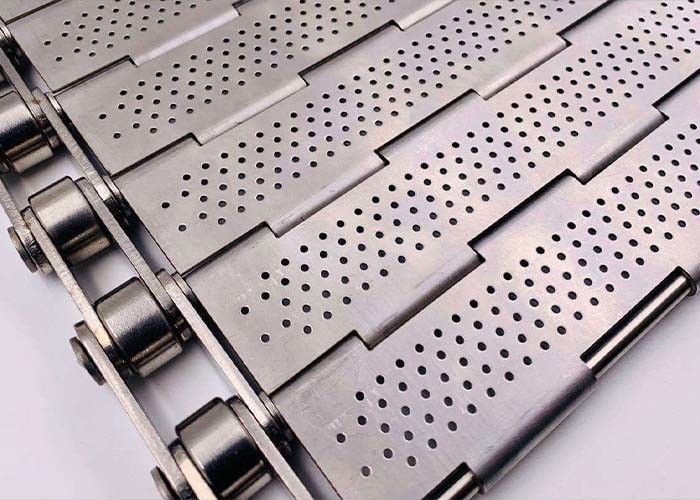

The perforated plate conveyor belt is combined with perforated plate and chain link edges. The perforated plate bending to form hinges. The hinges are connected by the cross rods. And then the cross rods are fixed onto the chain link edges to form a solid and durable structure.

• Material: stainless steel plate
• Cross rod diameter: 5mm - 20mm
• Plate thickness: 1mm - 4mm
• Pitches: 25.4mm - 125mm

• Temperature resistance, which can be used in extremely high and low temperatures
• Corrosion and rust resistance make it possible be used in the corrosive environments
• The baffles can be added onto the belt for convenient sorting and conveying
• The side guards can be added onto the belt to prevent products from spillage
• Chain link edge can ensure the smooth and high efficiency working
• Curved perforated plate conveyor belt is available to suit more applications and equipment
