Product Details:
|
Product: | Sack Gabions | Surface Treatment: | Galvanized, Galfan, PVC Coated |
---|---|---|---|
Hole Shape: | Hexagonal | Material: | Galvanized Steel Wire, Galfan Steel Wire Or PVC Coated Steel Wire |
Wire Diameter: | 2.0–3.9mm | Mesh Size: | 60 × 80mm, 80 × 100mm, 100 × 120mm, Etc. |
Tensile Strength: | Above 380 MPa | Selvedge Wire: | 3.4 Mm Diameter |
Weaving Type: | Double Twist Weaving | Transport Package: | In Bundles |
Highlight: | Deep Water Sack Gabion,Rapid Flow Sack Gabion,60×80mm Sack Gabion |
strong impact resistance and integrity, Sack gabion is used in key dangerous sections of deep water and rapid flow
Sack Aabions product:

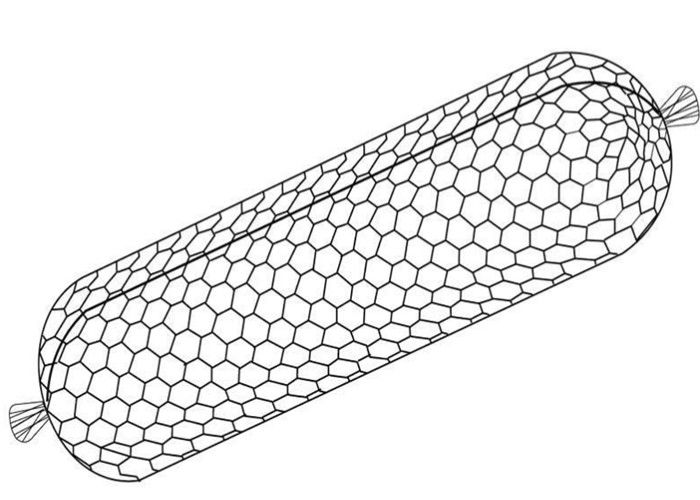

Sack gabions are cylindrical baskets with double twisted hexagonal woven steel wire mesh. It is assembled by rolling the mesh panel into a cylindrical shape and overlapping the selvedge edges. Inserted steel wire which runs through the sack facilitates tightening the bag when it is filled with riprap.The sack gabions mainly includes a mesh body. After the mesh body is unfolded, the butterfly-shaped net surface is closed along the edge of the net body.Sack gabions has no requirement of foundation conditions and will create a firm platform. Hence, gabion sack is especially suitable for emergency conditions when the found is not prepared.Sack gabions are used in flood protection, slope protection and other emergent or temporary protections,Such as river training, bank reinforcement.
Sack Aabions Features:
Sack Aabions Specification:
product | Sack gabions |
Surface Treatment | Galvanized, Galfan, PVC Coated |
Hole Shape | Hexagonal |
Material | galvanized steel wire, galfan steel wire or PVC coated steel wire |
Wire diameter | 2.0–3.9 mm |
Mesh size | 60 × 80 mm, 80 × 100 mm, 100 × 120 mm, etc. |
Tensile strength | above 380 MPa |
Selvedge wire | 3.4 mm diameter |
Weaving Type | Double Twist Weaving |
Transport Package | in Bundles |

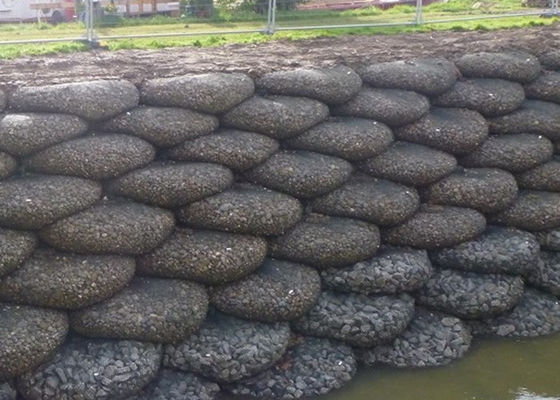

Sack Abions Applications:
Sack gabion can be used for diversion channel.
Gabion bags can be used for temporary road.
Sack gabion can regular and beautify the city river bank.
