Expanded metal walkway has excellent anti-skid performance and high load capacity and creates a safe channel for aerial and harsh construction conditions.
Expanded Metal Walkway – Rigid, Anti-Skid and Safe For Construction Projects

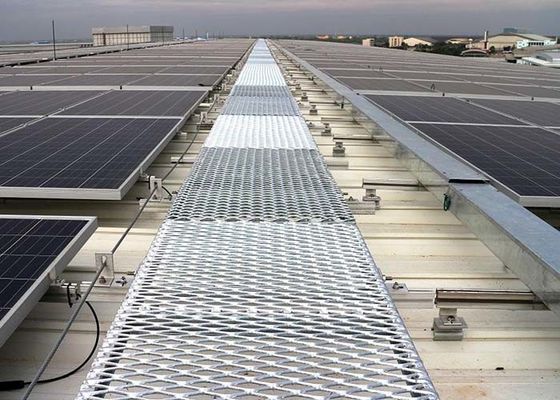

Expanded metal walkway offers high load capacity and excellent anti-skid performance. So, it is widely used in various industries to provide a safe passage for construction, transportation, maintenance activities, for example, overpass walkway, crushing, screening facilities, cement industry, oil and gas platform, offshore platform, solar panel construction, roof platform systems, etc.
The walkway generally adopts raised expanded metal (standard expanded metal), raised mesh surface enhances the fraction between underfoot and walkway contact area to prevent pedestrians from slipping and ensure walking security.
We can supply aluminum, carbon steel, stainless steel and other expanded metal walkways. They are generally have galvanized or powdered coated treated to enhance its corrosion resistance and extend its service life.
Expanded Metal Walkway Feature
- Protected against corrosion, compatible with harsh weather conditions.
- Excellent anti-skid performance makes pedestrians free from falling risks arising from slipping.
- Rigid structure offers high load capacity and strong, stable support.
- Openings help snow, water, grease and fluid to drain out.
- Unique surface structure can effectively avoid dazzling feeling when people looking down from a high place.
- It has a modern structure that will adapt to any environment.
Expanded Metal Walkway Specification
| Specifications of Expanded Metal Walkway |
| Material |
Opening Size (mm) |
Strand (mm) |
Weight (kg/m2) |
| SWD |
LWD |
Thickness |
Strand Width |
| Carbon steel, galvanized steel, aluminum |
30 |
75 |
3.0 |
7.0 |
10.70 |
| 34 |
76 |
4.0 |
5.0 |
8.80 |
| 30 |
75 |
5.0 |
7.5 |
23.00 |
| 42 |
135 |
5.0 |
8.0 |
14.05 |
| 30 |
75 |
5.0 |
10.5 |
27.00 |
| 45 |
135 |
5.0 |
11.0 |
19.00 |
Expanded Metal Walkway Application
Expanded metal walkway is widely used in various industries to provide a safe passage for construction, transportation, maintenance activities, for example, overpass walkway, crushing, screening facilities, cement industry, oil and gas platform, offshore platform, solar panel construction, roof platform systems, etc.

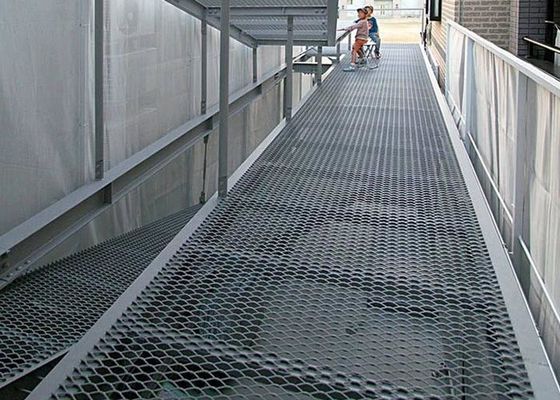

Expanded metal walkway for trailer ramp
Expanded metal grating walkway for aircraft production
Expanded metal grating walkway
Expanded metal grating walkway is installed in the middle of the overhead pipeline
Red coated expanded metal walkway bridge with steel wire rope handrails over water
