Product Details:
|
Material: | Aluminum | Surface Treatment: | Anodize Oxidation, PVDF Coating, PVC Coated, Powder Coated. |
---|---|---|---|
Hole Patterns: | Diamond, Hexagonal | Thickness: | 2–3mm. |
LWD: | 48–300mm. | SWD: | 34–95mm. |
Size: | 1220 × 2000mm Or 2400 × 1200mm | Color: | Silver, White,red, Green Or Customized. |
High Light: | 3mm Aluminium Mesh Cladding,2mm Aluminium Mesh Cladding,2400×1200mm Expanded Metal Mesh Facade |
Expanded Metal Building Facade – Ventilative, Magnificent and Long Lasting
Expanded metal facade is a lightweight wall commonly used in modern large-scale or high-rise buildings to protect and decorate exterior walls. Decorative expanded metal is a popular facade material with extensive hole patterns and diversified colors and is widely used in shopping malls, commercial buildings, hotels, parking lots and other public buildings.
Expanded metal facades with three-dimensional opening arrangement, provide a modern and noble elegant building temperament. Thus appreciate the aesthetic values of the building exterior design. Expect for the unique ornamental effect, the large openings can offer a good air ventilation while protecting the building from the passage of time and bad weathers. Designers prefer to use aluminum as material, since it is eco-friendly and economical.
Expanded Metal Building Facade Feature
Recommended Expanded Metal Facade Specification
Recommended Expanded Metal Facade Specification | |||||||
Material | Thickness (mm) | Strand Width (mm) | SWD (mm) | LWD (mm) | Recommended Size: Width × Length (mm) | Remarks | |
Size 1 | Size 2 | ||||||
Aluminum | 2, 2.5, 3 | 8, 9, 10 | 34 | 75 | 1220 × 2000 | 2400 × 1200 | |
8, 9, 10 | 40 | 48 | |||||
10, 12, 15 | 50 | 110 | |||||
16, 18, 20 | 63 | 150 | |||||
25, 28, 30 | 80 | 200 | Hexagonal (knuckle about 40 mm) | ||||
25, 28, 30 | 95 | 250 | |||||
25, 28, 30 | 95 | 300 | |||||
l Frame size: aluminum angle: 30 × 30 × 2 mm and above; for large size, 3 mm thickness is recommended; the large the frame, the thicker the aluminum angle. l Other sizes are available upon request. |
Expanded Metal Building Facade Application
It is widely used in shopping malls, commercial buildings, hotels, parking lots and other public buildings.

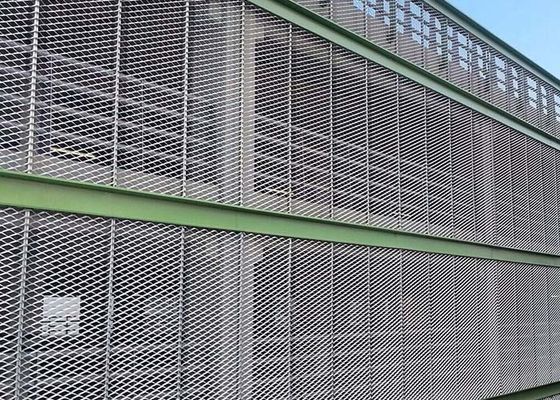

Expanded metal building facade

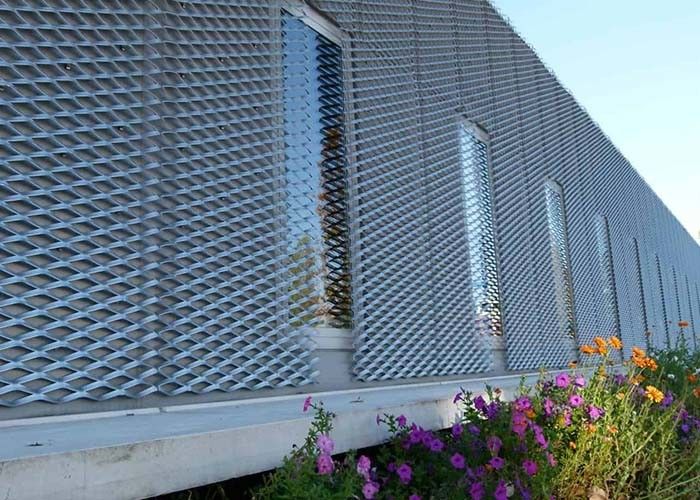

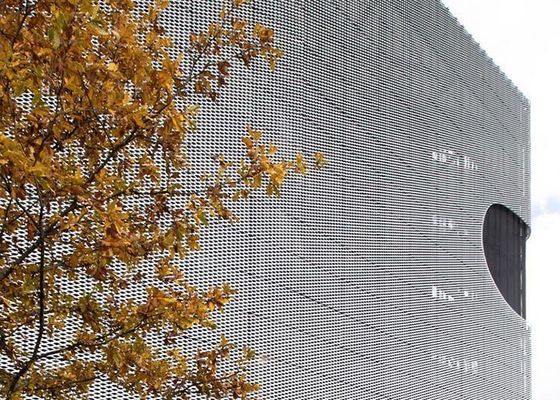

Expanded metal building facade for museum facade
Expanded metal building facade for villa facade

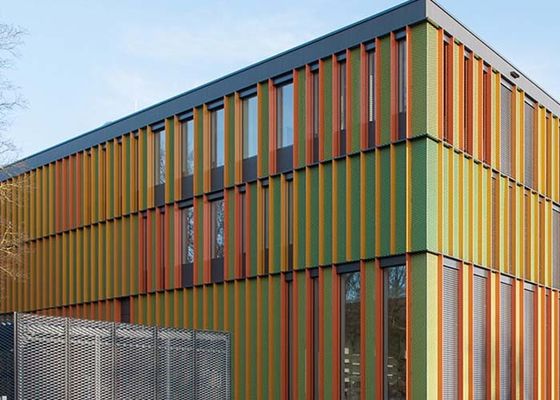

Expanded metal building facade for green wall

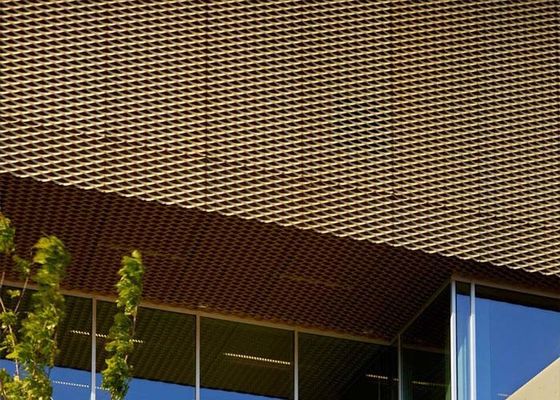

Expanded metal building facade for hotel facade

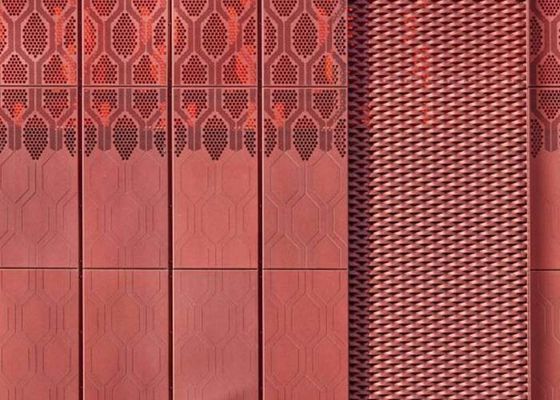

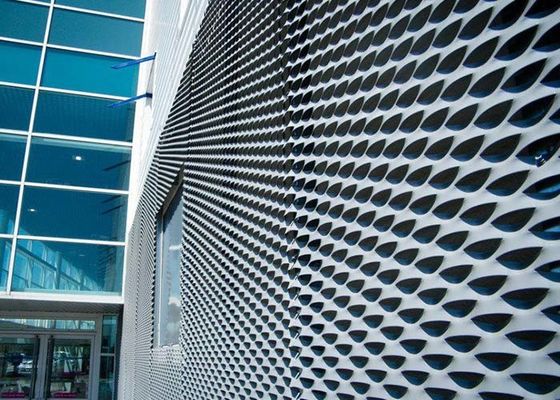

Colors expanded metal building facade for shopping facade
