Sintered Disc Filter Screen Mesh 8mm-3800mm Disc Diameter

Sintered Disc Filter Screen Mesh 8mm-3800mm Disc Diameter
Sintered Disc Filter Screen Mesh 8mm-3800mm Disc Diameter Sintered Disc Filter Screen Mesh 8mm-3800mm Disc Diameter

Large Image :  Sintered Disc Filter Screen Mesh 8mm-3800mm Disc Diameter

Product Details:
Place of Origin: China
Brand Name: Cittimesh
Model Number: plain weave, twill weave, dutch weave, etc
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: in abundant supply

Sintered Disc Filter Screen Mesh 8mm-3800mm Disc Diameter

Description
Product: Sintered Filter Disc Material: Iron, Stainless Steel 304, 316, 316L, Brass,other Alloys Are Customized
Wire Diameter: 0.02mm - 2.03mm Disc Diameter: 8mm - 3800mm
Weaving Type: Plain Weave, Twill Weave, Dutch Weave Filter Shape: Round, Ring, Square, Rectangular, Oval
Layer: Five Layers Or Multiple Layers Filtration Rate: 0.2µm - 300µm
High Light:

Sintered Metal Filter Disc

,

Sintered Disc Filter Screen Mesh

,

8mm Sintered Disc Filter



Sintered Filter Disc with Accurate Filter Rating , Long Lifespan and Withstands High Pressure





Sintered Filter Disc Product:



Sintered filter disc, also known as sintered wire mesh filter disc, is a new filter disc product. Sintered metal filter disc is multi-layer composite of sintered wire mesh and/or sintered fiber felt. Sintered filter disc is the combination of multi-layer filter disc. Generally, it has five layers and the its structure includes protecting layer, filtration control layer, scattered skeleton layer, skeleton supporting layer. Most discs are custom designed to suit different filtration needs. Sintered metal filter disc can be cleaned by multiple ways thus be reused for years which makes it highly cost effective as to compared to traditional filters.



Sintered Filter Disc Feature:



  • Good permeability
  • High temperature and pressure resistance.
  • Excellent corrosion resistance: acid and alkali resistance.
  • Excellent mechanical properties: easy cutting, easy welding.
  • High filtration accuracy.
  • Easy to clean and reusable for long service life
  • High strength, good abrasion resistance.
  • Withstand the temperature range of -200 °C to +600 °C.
  • Can be cleaned by various ways—backstream, filtration liquid, ultrasonic, dissolution and baking.
  • Large dirt holding capacity.
  • High strength, great rigidity and stability.



Sintered Filter Disc Specification:





Product Sintered Filter Disc
Material iron, stainless steel 304, 316, 316L, brass,other alloys are customized
Wire diameter 0.02 mm - 2.03 mm
Disc diameter 8 mm - 3800 mm
Weaving type plain weave, twill weave, dutch weave, etc
Filter shape round, ring, square, rectangular, oval, etc
Layer five layers or multiple layers
Filtration rate 0.2 µm - 300 µm
Marginal material stainless steel, copper, aluminum, rubber, etc
Thickness made to order



Sintered Filter Disc Applications:



  • catalyst recovery, steam processing, and the filtration of liquid&gases.
  • Petrochemical industry: high temperature and corrosive fluid filtration.
  • Pharmaceutical industry: material filtration, washing and drying.
  • Machinery industry: hydraulic oil and lubricant filtration.
  • Chemical fiber film industry: polymer melt filtration and purification.
  • Other industries requiring filtration of suitable gases and fluids.



Sintered Disc Filter Screen Mesh 8mm-3800mm Disc Diameter 0

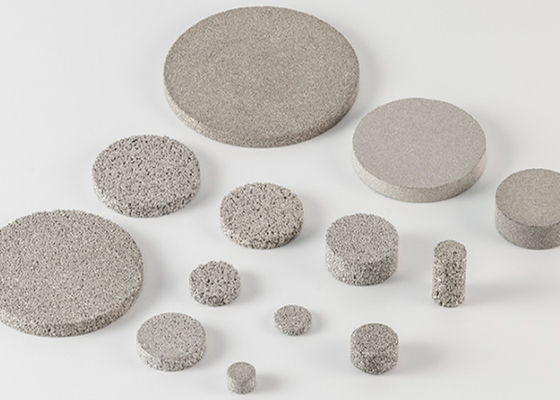

Multi-layered sintered filter disc, dutch woven meshes sintered together provides great filter precision.



Sintered Disc Filter Screen Mesh 8mm-3800mm Disc Diameter 1



Round sintered filter disc with support, high permeability specially fits pharmaceutical filtration.
