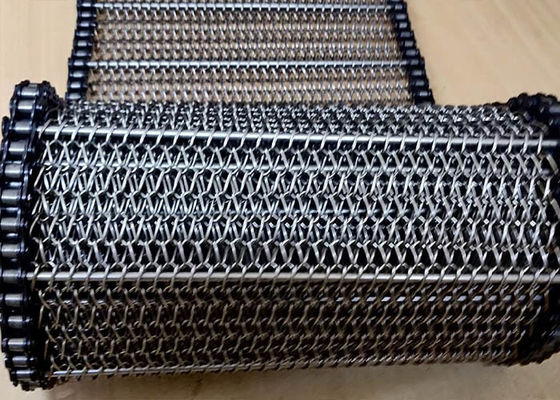

Mild Steel Chain Link Conveyor Belt 5.08mm-25.4mm Pitch

The materials of chain link conveyor belt are commonly mild steel and stainless steel. The mild steel can be used combined with various surface treatments, such as electric galvanized, hot dipped galvanized and other surface treatments.

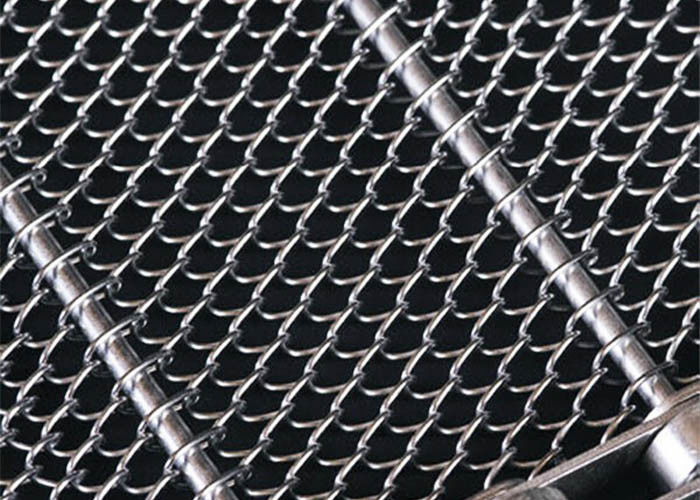

Chain link conveyor belting consists of interwoven successive spiral wire, which looks like chain link fencing. This universal conveyor belt is the simplest wire belt but functional and economical in conveying light-duty applications. Owing to its large open area, chain link belt makes itself an ideal choice for drying, cooling and heating where energy efficiency is important.

Chain Link Conveyor Belts are available in different edge styles including welded, knuckled and chained. Other special edge finishes are available on request.

At the belt edges the coil wires are looped together and welded. This is the most common and economical edge finish. This type of edge finish allows for relatively smooth finish to the belt edge and is the most economic version of this belt style.

The end of each coil wire is bent back into a 'U' shape and then interlock with the adjacent coil. The 'U' form is then closed securely to form a permanent link with the next coil. This formation also allows greater flexibility of the belt edges and minimizes stress build up at these positions.

Along with the mesh edge finishes these meshes can be driven by side chains using cross rods which are located through the mesh coils and then through chains at the edges of the mesh.

The standard chain link conveyor belt is formed by the several chain link wires. To improve the load capacity of chain link conveyor belt, we can supply the rod reinforced chain link conveyor belt for you. The rod reinforced chain link conveyor belt has two types: reinforced style and double reinforced type.

CLCB-01 standard chain link conveyor belt

CLCB-02 reinforced chain link conveyor belt

CLCB-03 double reinforced chain link conveyor belt

• Simple structure: Made of several spiral coils. Suitable for light-duty use in drying and cooling applications
• Economical: Economic and lightweight solution for low load conveying applications
• Functional: The stainless steel chain link conveyor belt is suitable for lifting and conveying lightweight products
• Different edge options: Available with welded or knuckled edges
• Baffles available: Side and center baffles can be added to prevent products from falling
• Chain link drive: Ensures smooth and efficient operation

These are designed to suit customer requirements but in general are available in lateral coil wire pitches varying from 5.08mm to 25.4mm, combined with a variety of wire diameters and longitudinal pitches to suit the application.

A: Lateral Coil Pitch (mm) B: Longitudinal Coil Pitch (mm) C: Wire Diameter (mm)
