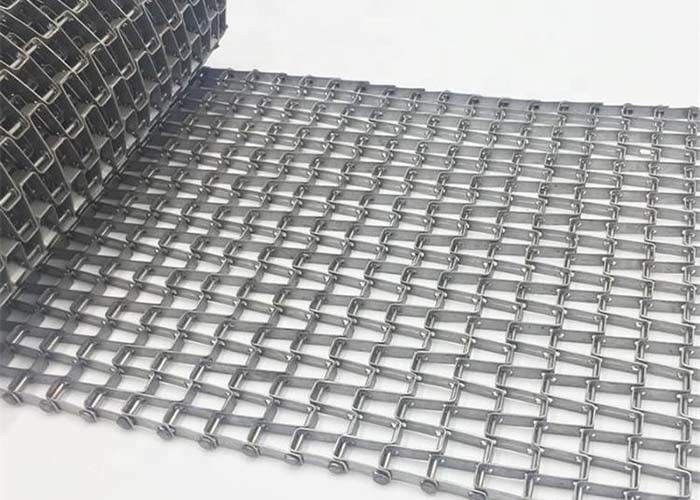

Honeycomb Metal Conveyor Belt 0.5m - 3.5m Width Flat Wire Belting

Flat wire belting also named as honeycomb belting

Flat wire belting, also named as honeycomb belting, is a well known traditional conveyor belt for most straight- running conveying applications. This hone comb belt features very large open area, high strength- to- weight ratio and flat carrying surface. All of these outstanding performances make it the most popular choice for baking, cooling, heating and packaging. Constructed from formed flat strips connected by cross rods,

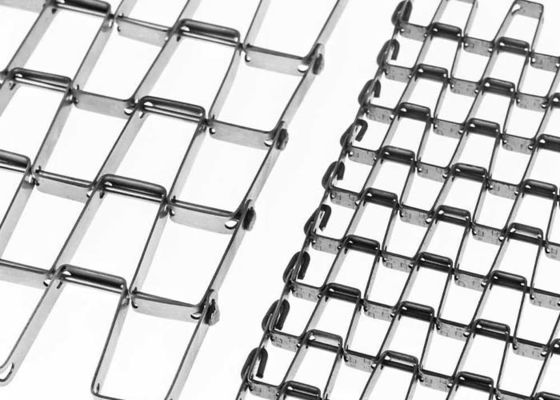

Flat wire belts have a wide variety of configurations to suit different requirements. For standard duty flat wire belting, 1" x 1" & 1/2" x 1" are frequently used, and other special specifications are available on request.

Flat wire belting are manufactured by three common materials: low carbon galvanized steel, high carbon steel and stainless steel SS304 or SS316.

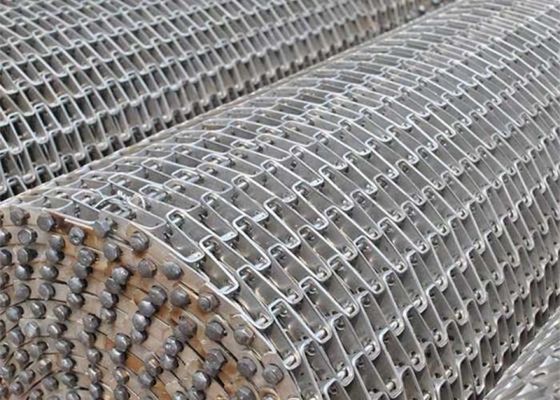

Flat wire conveyor belting has two edge styles - welded and clinched. Clinched edge is the first choice for standard duty flat wire belts, which can prevent mesh shrinkage on the rods. however, button welded edges are available.

Drawings of flat wire belt

Here are two drawings about the flat wire belt, it can help you know the flat wire belt better. You can refer to that and give specifications as detailed as possible to us to get the accurate quotation.

W: overall belt width.

T: thickness of flat strip.

NP: nominal lateral pitch.

CP: cross rod pitch.

CD: cross rod diameter.

Features of flat wire belt

• Flat surface. The flat surface of honeycomb can ensure the stable and high efficient conveying.
• High strength-to-weight ratio. It can improve the energy efficiency during using.
• Large open area. The large open are of flat wire belt make it suitable for the process of drying, washing, baking and cooling.
• Good air permeability and drainage performance.
• Sprockets can be added to the belt. To ensure the smooth and quickly operation, the sprockets can be added to the honeycomb conveyor belt during usage.
• Baffles are available. In the conveying process, to prevent the products from falling down, baffles are added to the flat wire conveyor belt to ensure the products in place.
• High temperature resistance. The high quality materials of flat wire belt are all high temperature resistance, so it is popular in the baking applications.

Application of flat wire belt

The flat wire belts, with high temperature resistance, large open area, flat surface is widely used in the following applications.

• Baking.
• Cooling.
• Freezing.
• Washing.
• Drying.
• Clearing.
• Recycling.
• Sorting.
• Packaging.
• Loading.

For freezing

For canding
