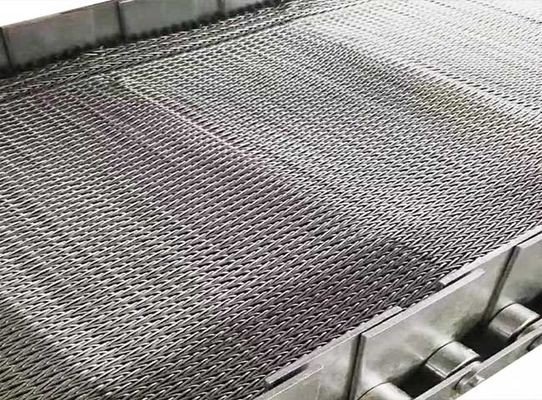

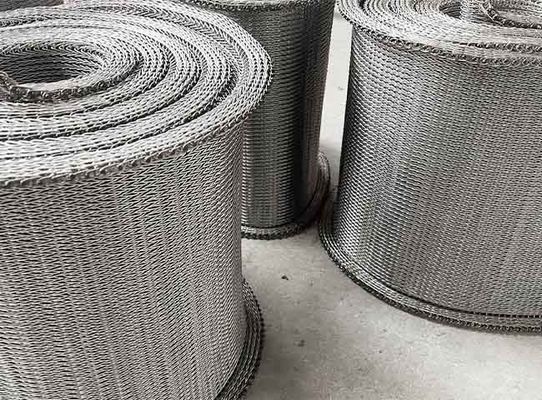

Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt

Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt
Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt

Large Image :  Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt

Product Details:
Place of Origin: China
Brand Name: Citti Mesh
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packing in cartons or wooden cases
Delivery Time: a week
Payment Terms: L/C, T/T
Supply Ability: large supply

Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt

Description
Material: Carbon Steel, SS 201, SS 304, SS 316, SS 314. Pitch Of Spiral Wires: 6mm To 20mm
Pitch Of Cross Rods: 6mm To 20mm. Wire Diameter: 1.2 Mm, 1.4 Mm, 1.5 Mm, 1.6 Mm, 1.8 Mm, 2 Mm, 2.5 Mm, 3 Mm.
Belt Width: 200mm To 3,000 Mm. Diameter Of Cross Wire: 0.9 Mm To 2.6 Mm.
High Light:

Compound Weave Metal Conveyor Belt

,

3000mm Steel Cord Conveyor Belt

,

Metal Conveyor Belt 200mm



Compound Weave Conveyor Belt is Mainly Used for Filtering Conveying Applications





Compound Weave Conveyor Belt, also named stainless steel Cordweave Conveyor Belt, Compound Balanced Woven Belt, V-shaped Conveyor Belt or Baking Band Conveyor Belt, have right-hand and left-hand spirals interconnecting by straight cross rods.



The compound weave conveyor belt is made of stainless steel and high carbon steel. They all have excellent high temperature resistance performance and high tensile strength. All these can ensure the compound weave conveyor belt be a strong, durable and high lifespan products.



The compound weave conveyor belt is also known as cord weave belt. The structure of compound weave conveyor belt is similar to the balanced weave conveyor belt, which has multiple spirals and cross rods per pitch. The compound weave conveyor belt has closer mesh than the balanced conveyor belt. The closer mesh makes compound weave conveyor belt a high density and high strength surface.



Edge of compound weave conveyor belt



Compound weave conveyor belt has two types of edge, they can suit different applications:

  • Welded edge.
  • Chain edge.



Spiral of compound weave conveyor belt



The spiral of compound weave conveyor belt has two types, you can choose the perfect one you want.

Round spiral wire.

Flat spiral wire.

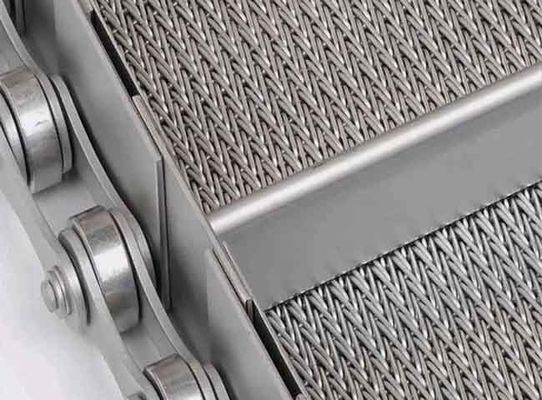

Baffle of compound weave conveyor belt



For better conveying performance and prevent products from falling down to the ground, the compound weave conveyor belt has two types of baffle, which can solve this problem.

Metal baffles can be added onto compound weave conveyor belt.

Compound weave conveyor belt can be folded directly to form a baffle.



Specifications of compound weave conveyor belt



Material: stainless steel wire or high carbon steel wire.

Wire type: round wire or flat wire.

Edge type: welded or chain edge.



Features of compound weave conveyor belt



  • Small open area.
  • High tensile strength.
  • High temperature resistance.
  • Baffles can be added.



Applications of compound weave conveyor belt



The compound weave conveyor belt with little open area is popular in the food, electric, mechanical and other industries. It can be used to convey the following products:

  • Baking biscuit.
  • Nuts.
  • Bolts.
  • Cookie.





Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt 0



For grain transport



Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt 1



For transporting pastries



Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt 2



For transporting cookies



Compound Weave Metal Conveyor Belt 200mm-3000mm Steel Cord Conveyor Belt 3

For transporting bread
