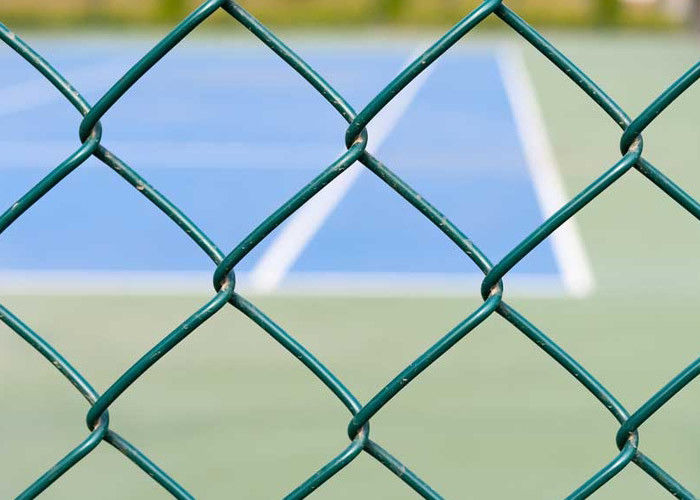

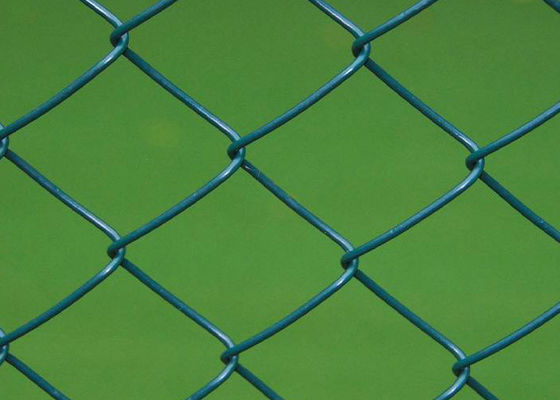

12.7mm 15.9mm PVC Diamond Mesh Fencing Roll Galvanized Dark Green

PVC chain link fence is highly recommended for safety fencing in coastal areas with high humidity.

PVC chain link fence product

PVC chain link fence,a woven fence with galvanized steel wire and usually coated in zinc. A vinyl-coated chain-link fence is also made from metal; however, it is coated in vinyl instead of zinc. Vinyl coating is made of synthetic resin or plasti.PVC chain link fence use fusion bonding system to securely fasten the PVC coating to the base wire, which highly resists cracking & shrinking, as well as delivering longer-lasting and more attractive finish.

PVC chain link fence can sustain in extremely hot or cold weather and is resistant to U.V, which makes it ideal for coastal areas affected by corrosive chemicals. PVC coated chain link fence is often used with knitted windbreak netting for garden and sport court protection. PVC chain link fence is used with razor wire & barbed wire to improve higher security, ideal for warehouses, construction sites, closed areas, airports, oil terminals, parking lots and other land to which entrance is strictly limited.

PVC chain link fence feature

• Twisted together in a single wind for superior flexibility & adaptability during installation.
• Smooth surface without burrs.
• Diamond shape mesh, with alpine plastic coating.
• High impact and corrosion resistance.
• Superior UV protection.
• Delivered as a roll, easy to cut to size.
• Matching framework, fittings and gates available.
• A variety of colours blend naturally with the surroundings.
• Ten years of trouble-free use at least.
• Numerous applications, versatile.

PVC chain link fence specification

• Core wire: galvanized steel wire.
• Wire diameter (internal/external): 1.7/2.5, 1.8/2.6, 2.0/3.2, 2.2/3.2, 2.5/3.55, 3.55/4.75 mm.
• Mesh size: 9.5 mm, 12.7 mm, 15.9 mm, 30 mm, 40 mm, 50 mm.
• Available height: 0.5–6.0 m.
• Roll length: 10–30 m.
• Colours of PVC coating: dark green, black, blue, brown, red, orange, white and yellow.
• Coating methods
• Extruded (vinyl jacket encompasses the steel core);
• Extruded bonded (adhesive bonds the jacket to the core wire);
• Thermally fused (coating is fused to the galvanized steel core wire).
• Additions:gates; barbed wire or razor wire on top; privacy slats; windscreen, etc.

PVC chain link fence application

PVC chain link fencing is mainly used as fences for stadiums, tennis court, playgrounds, gardens, power plants, railway, airport, port, residence, etc.

PVC chain link fence for park

PVC chain link fence for green belt

 PVC chain link fence for road
