Product Details:
|
Product: | Flat Spiral Conveyor Belt | Material: | Stainless Steel 304, 314, 316, 316L, Carbon Steel, Copper Steel, Brass Steel And Other Types Are Available. |
---|---|---|---|
Surface Treatment: | Galvanized, 3% Chromium Plate, Manganese Plated. | Spiral Diameter: | 0.9–3.0 Mm. |
Cross Wire Diameter: | 1.2–4.0 Mm. | Flat Wire Size (mm): | From 1 × 0.7 To 6 × 3. |
Spiral Wire Pitch: | 4–22 Mm. | Cross Rod Pitch: | 4–33 Mm. |
Belt Width: | Up To 5 Meters Or More Upon Your Request. | Edge Type: | Welded Edge, Hook Edge, Laddered Edge, Chain Link Edge. |
Highlight: | 2.0 mm Dia Spiral Conveyor Belt,Welded edge Spiral Conveyor Belt,Stainless steel 304 Spiral Conveyor Belt |

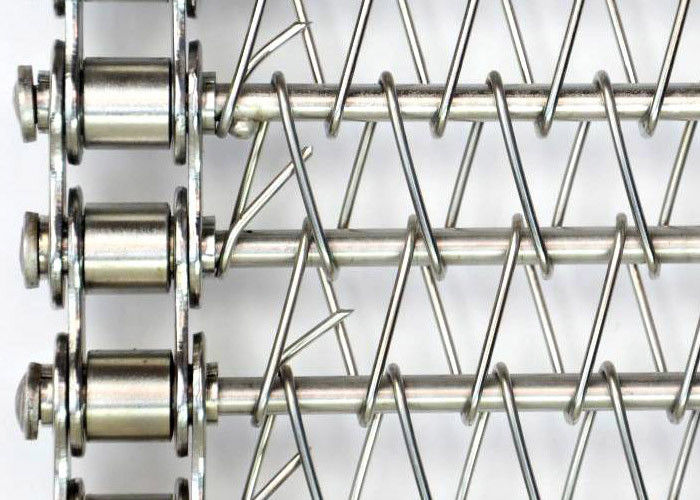

Flat Spiral Conveyor Belt–Good Strength to Weight Ratio and Anti-Rust
Flat Spiral Conveyor Belt Product
Flat spiral conveyor belt consists of a series of alternating single or double spiral wires, which can be round and flat, they can be added crimped or straight cross rods. And the alternating structure effectively reduces downtime. So flat spiral conveyor belt is an economic choice, it can provides a flat loading surface for small products or easily broken products.
Flat spiral conveyor belt can be made of stainless steel, copper steel and brass steel, different materials can be adapted to different applications to meet the needs of more customers.
Flat Spiral Conveyor Belt Feature
Flat Spiral Conveyor Belt Specification
Item | Spiral Wire Pitch mm |
Cross Rod Pitch mm |
Spiral Wire Diameter mm |
Cross Wire Diameter mm |
---|---|---|---|---|
FSCB-01 | 4 | 4 | 0.9–1.2 | 1.2–1.6 |
FSCB-02 | 5 | 6.4 | 0.9–1.2 | 1.2–1.6 |
FSCB-03 | 5 | 5 | 0.9–1.6 | 1.2–1.6 |
FSCB-04 | 6 | 6 | 0.9–1.6 | 1.2–1.6 |
FSCB-05 | 6 | 8 | 0.9–1.2 | 1.2–1.6 |
FSCB-06 | 6 | 10 | 0.9–1.6 | 1.2–1.6 |
FSCB-07 | 8 | 12 | 1.2–2.0 | 1.2–2.5 |
FSCB-08 | 8 | 13 | 1.2–2.0 | 1.2–2.5 |
FSCB-09 | 8 | 15 | 1.2–2.0 | 1.2–2.5 |
FSCB-10 | 11 | 15 | 1.2–2.0 | 1.2–2.5 |
FSCB-11 | 11 | 20 | 1.6–3.0 | 1.6–3.0 |
FSCB-12 | 11 | 25 | 1.6–3.0 | 1.6–3.0 |
FSCB-13 | 11 | 27 | 1.6–3.0 | 1.6–3.0 |
FSCB-14 | 15 | 20 | 1.6–3.0 | 1.6–3.0 |
FSCB-15 | 15 | 25 | 1.6–3.0 | 1.6–3.0 |
FSCB-16 | 22 | 23 | 1.6–3.0 | 1.6–3.0 |
FSCB-17 | 22 | 33 | 1.6–3.0 | 2.0–4.0 |
Note: Custom specification is available if you can't find the suitable size. |
Flat Spiral Conveyor Belt Application
Flat spiral conveyor belt is widely used for many aspects in food processing, chemical, metalworking and hardening, glass and ceramic industry.
