4mm Diameter Galvanized Chain Link Fence Corrosion Resistant Elastic Safety Fence

Customer Reviews
Let’s talk business. Contact us and we will discuss further.

—— Dear customer

I'm Online Chat Now

4mm Diameter Galvanized Chain Link Fence Corrosion Resistant Elastic Safety Fence

4mm Diameter Galvanized Chain Link Fence Corrosion Resistant Elastic Safety Fence
4mm Diameter Galvanized Chain Link Fence Corrosion Resistant Elastic Safety Fence 4mm Diameter Galvanized Chain Link Fence Corrosion Resistant Elastic Safety Fence

Large Image :  4mm Diameter Galvanized Chain Link Fence Corrosion Resistant Elastic Safety Fence

Product Details:
Place of Origin: China
Brand Name: Cittimesh
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packing in cartons or wooden cases
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: In abundant supply

4mm Diameter Galvanized Chain Link Fence Corrosion Resistant Elastic Safety Fence

Description
Product: Galvanized Chain Link Fence Material: Low Carbon Steel Wire
Wire Diameter: 1.2 Mm - 5.0 Mm Mesh Size: 25mm-100mm (1"- 4")
Roll Length: 10–30m Available Height: 0.5–6.0m
Coating Weight: The Weight Of Zinc-coated On Chain Link Fence Fabric Conforms To ASTM A392, Available In Two Coating Weight Classes As Follows (List Of Data Is The Minimum Value): Class 1—1.2 Oz/ft2 (366 G/m2). Class 2—2.0 Oz/ft2 (610 G/m2). Matters Need Attention: Generally, Chain Link Fence Fabric Woven With A 2" Mesh And 60" Or Less In Height Is Knuckled At Both Selvages. For Fabrics 72" And Taller, The Selvage Is Knuckled At One Edge And Twisted At The Other. All Fabrics Woven Into Mesh Sizes Under 2" Are Knuckle
High Light:

Elastic Safety Chain Link Fence

,

Corrosion Resistant Chain Link Fence

,

4mm Diameter Chain Link Fence

Galvanized Chain Link Fence - Versatile Security Solution





Galvanized chain link fence product



Galvanized chain link fence is made from premium quality steel wire interlocked weaving. The hot-dipped galvanizing process ensures a fully protective zinc coating on all surfaces of the chain link fabric, even the cut ends. There are two ways for chain link fabric galvanization: Galvanized After Weaving (GAW) and Galvanized Before Weaving (GBW). GAW is more popular as it ensures that all the wires of the fabric are coated, including the cut ends, and GBW eliminates burrs and sharp surfaces and increases the tensile strength of the fence.



Galvanized chain link fence feature



  • Outstanding and long lasting adhesion in humid environments
  • Hot-dipped galvanized for superior corrosion resistance.
  • Galvanized prior to weaving for eliminating burrs and sharp surfaces.
  • Barbed wire (over six feet) or razor ribbon (over eight feet) is available for galvanized chain link fence installation.
  • Easy to install and DIY installation can be achieved to match your surroundings.
  • High impact resistance.



Galvanized chain link fence specification





  • Material: low carbon steel wire.
  • Coating weight: The weight of Zinc-coated on chain link fence fabric conforms to ASTM A392, available in two coating weight classes as follows (List of data is the minimum value):
    • Class 1—1.2 oz/ft2 (366 g/m2).
    • Class 2—2.0 oz/ft2 (610 g/m2).
  • Mesh size: 25–100 mm (1''–4'').
  • Available height: 0.5–6.0 m.
  • Matters need attention: Generally, chain link fence fabric woven with a 2" mesh and 60" or less in height is knuckled at both selvages. For fabrics 72" and taller, the selvage is knuckled at one edge and twisted at the other. All fabrics woven into mesh sizes under 2" are knuckled at both selvages.



Galvanized Chain Link Fence
Mesh Wire Diameter Width Height Post & Rail Diameter Post & Rail Thickness
40*40 mm 1.8 - 3.0 mm 0.5 - 4.0m 0.5-3 m 32mm, 42mm,50mm,60mm,76mm,89mm etc 1.5mm,2.0mm,3.0mm,4.0mm,5.0mm etc
50*50 mm 1.8 - 3.5 mm 0.5 - 4.0m
60*60 mm 1.8 - 4.0 mm 0.5 - 4.0m
80*80 mm 2.5 - 4.0 mm 0.5 - 4.0m
100*100 mm 2.5 - 4.0 mm 0.5 - 4.0m





Galvanized chain link fence application



Galvanised chain link fence (Cyclone Wire Fence) is widely used throughout the world for court fencing, factory fencing, residential fencing, airport fencing, border fencing, chain link temporary fencing etc. because of its good permeability, high impact resistance, corrosion resistance and long life.



4mm Diameter Galvanized Chain Link Fence Corrosion Resistant Elastic Safety Fence 0

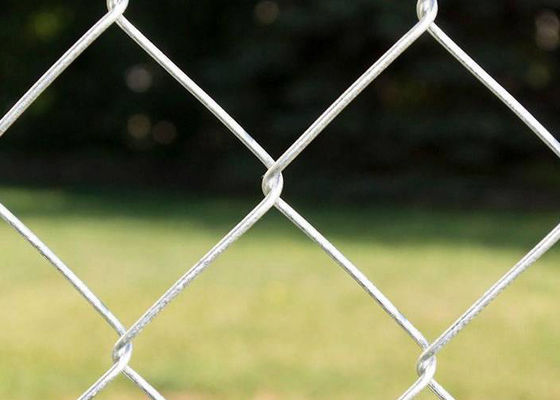

Galvanized chain link fence for park



4mm Diameter Galvanized Chain Link Fence Corrosion Resistant Elastic Safety Fence 1

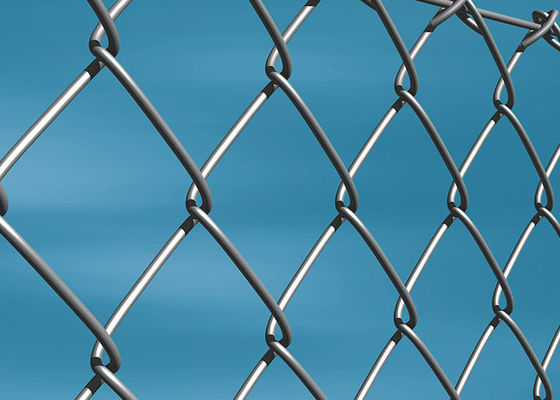

Galvanized chain link fence for Yard
