Product Details:
|
Material: | Carbon Steel And Stainless Steel. | Wire Diameter: | 1.25mm - 4mm. |
---|---|---|---|
Opening Size: | 1.5 × 50mm, 12 × 60mm. | Mesh Type: | Slotted Flat Wire Mesh And Slotted Crimped Wire Mesh |
Highlight: | slot woven mining screen mesh,carbon steel mining screen mesh |

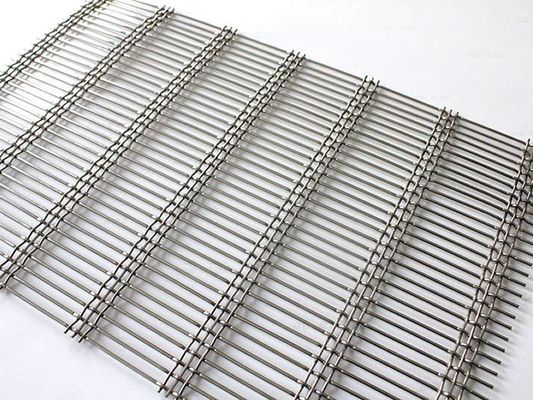

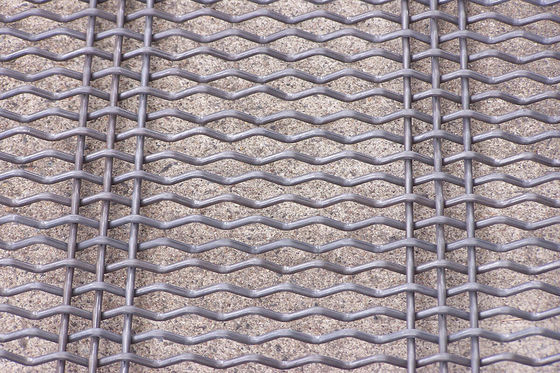

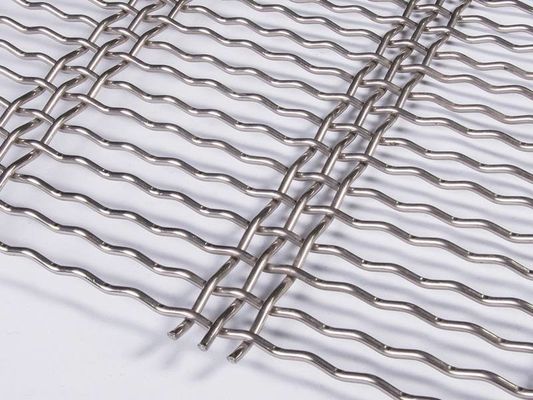

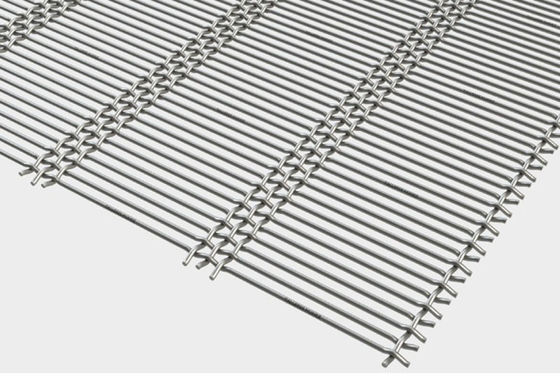

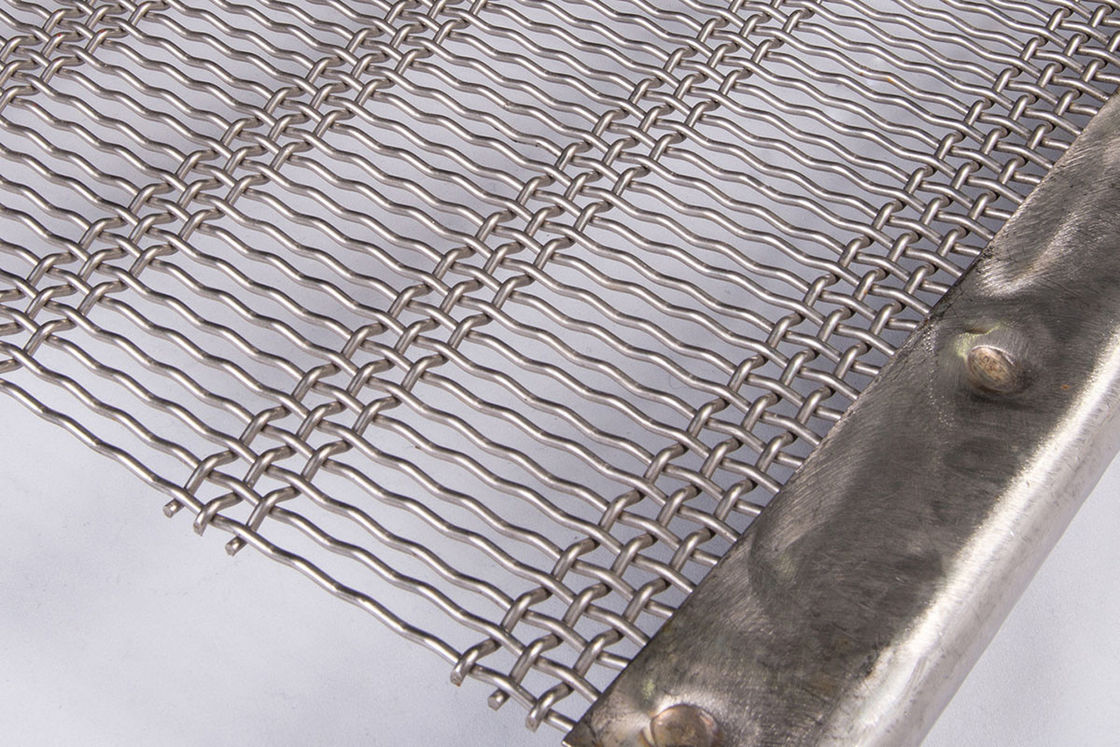

Slot Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Typically, it is made of wires of the same diameter that are crimped to form precise apertures. As such, slot wire mesh has a larger open area, a higher throughout and a better self-cleaning effect than square wire mesh.
Aperture (mm) | Wire Diameter (mm) | Weight (kg/m2) | Open Area (%) |
---|---|---|---|
1.50 × 50.00 | 1.25 | 4.12 | 53 |
2.00 × 50.00 | 1.25 | 3.56 | 60 |
2.50 × 50.00 | 1.25 | 3.15 | 65 |
2.50 × 50.00 | 1.60 | 4.77 | 59 |
3.00 × 50.00 | 1.60 | 3.95 | 63 |
3.50 × 50.00 | 1.60 | 3.97 | 67 |
4.00 × 50.00 | 2.00 | 5.41 | 64 |
5.00 × 50.00 | 2.00 | 4.77 | 69 |
5.00× 60.00 | 2.50 | 6.81 | 64 |
6.00 × 50.00 | 2.00 | 4.29 | 72 |
6.00 × 60.00 | 2.80 | 7.50 | 65 |
7.00 × 60.00 | 3.15 | 8.45 | 65 |
8.00 x 60.00 | 3.15 | 7.85 | 68 |
9.00 x 60.00 | 3.15 | 7.33 | 70 |
10.00 x 60.00 | 3.15 | 6.89 | 72 |
10.00 x 60.00 | 4.00 | 10.55 | 67 |
12.00 x 60.00 | 3.15 | 6.17 | 75 |
12.00 x 60.00 | 4.00 | 9.50 | 70 |
Other mesh sizes and types are available upon request. |
Slot Woven Vibrating Screen Applications
Slot woven vibrating screen mesh can be used as screen deck in quarry screen and crusher screen to separate and sort stone, sand, gravel, coal, rock and other materials. It is widely used in the large scale stone processing, asphalt mixing plants, coal, metallurgy, chemical and other industries.
