Product Details:
|
Material: | Low Carbon Steel, High Carbon Steel, Stainless Steel, Galvanized Iron. | Wire Diameter: | 0.71mm - 12.5mm. |
---|---|---|---|
Opening Size: | 1mm - 100mm. | Weaving Type: | Double Crimped, Intermediate Crimped, Flat Top Crimped, Lock Crimped. |
Mesh Type: | Square, Rectangular Slot, Long Slot. | Surface Treatment: | Black Or Red Color Painted. |
Highlight: | 0.71mm stone crusher mesh,low carbon steel stone crusher mesh,0.71mm stone crusher screen mesh |

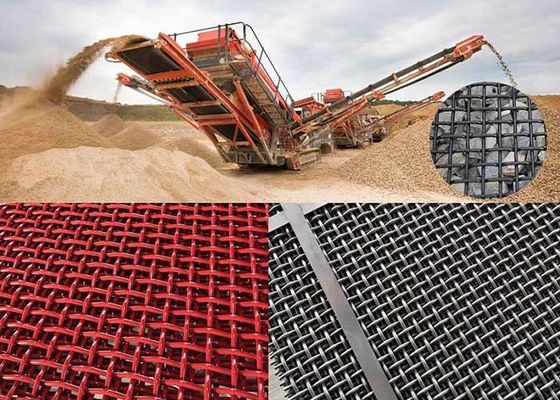

Stone Crusher Mesh / Dressing Mine Screen
Woven vibrating screen mesh is also called quarry screen mesh,crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.
It has different weaving types and edge preparations. The main weaving types are flat top and crimped. Crimped type can be divided into single wire crimped and double wire crimped.
The high quality raw materials makes woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.
With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.
Specifications:
Drawing wire--Crimped wire--Cutting wire--woven screen--Cut screen--IN Roll/In Sheet.
Chemical sheet of the main material | |||||||||
Steel Grade | Chemical Composition (%) | ||||||||
China (GB - YG) | USA (AISI) | C | Mn | Si | S | P | Cr | Cu | Ni |
# 45 | 1045 | 0.42 - 0.50 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 50 | 1050 | 0.47 - 0.55 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 55 | 1055 | 0.52 - 0.60 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 60 | 1060 | 0.57 - 0.65 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 70 | 1070 | 0.67 - 0.75 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
65 Mn | 1566 | 0.62 - 0.70 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
Features
Screening media applications:
Uses for screens in mine, coal factory, industry, architecture, filter sand, grain, liquid and air, chemicals also can be used for underground mining supporting.

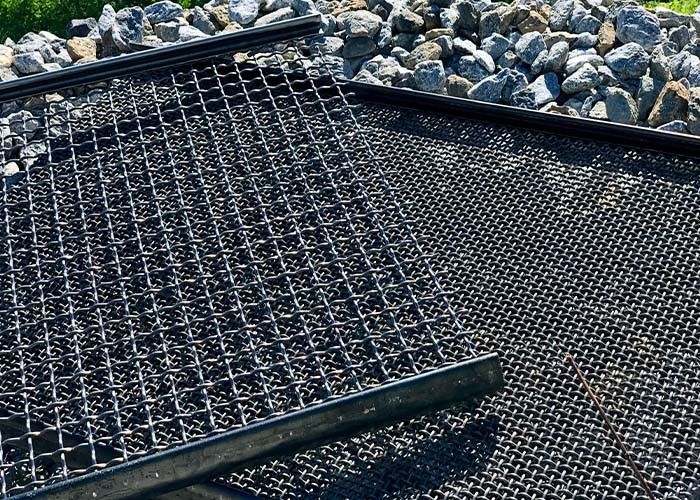

For crusher screens

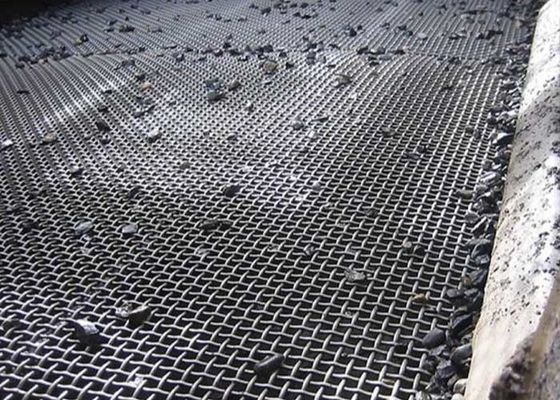

Woven wire vibrating screen in trommel
