Green PVC Coated Gabion Box 2m-6m Hexagonal Mesh

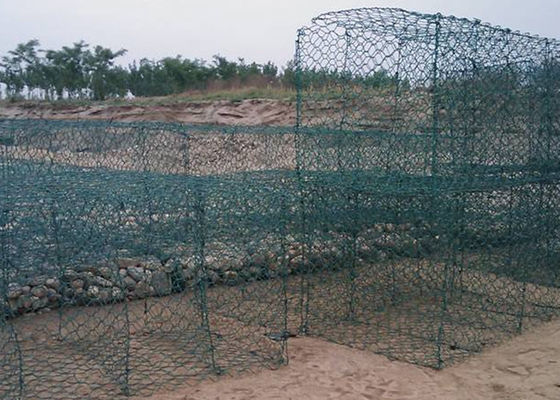

Large Image : Green PVC Coated Gabion Box 2m-6m Hexagonal Mesh

Product Details:

Place of Origin:	China
Brand Name:	Cittimesh
Model Number:	Woven type;Welded type

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Water Proof Paper, Wooden Case And Pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	in abundant supply

Contact Now

Green PVC Coated Gabion Box 2m-6m Hexagonal Mesh

Description

Product:	PVC Coated Gabion	Color:	Green, Black, Blue, Gray Etc
Material:	Low Carbon Steel Wire, Galvanized Wire,Galfan Wire	Selvedge Wire Diameter:	3.4 Mm,4.4 Mm
Lacing Wire Diameter:	2.2mm,3.2mm	Packaging:	Water Proof Paper, Wooden Case And Pallet
Length:	2m-6m	Width:	1m-2m
Height:	0.17m-1.5m	Hole Shape:	Hexagonal
Highlight:	6m PVC Coated Gabion Wire Mesh , 2m PVC Coated Gabion Wire Mesh , Green Hexagonal Gabion Box

Green Hexagonal Gabion Box 2m-6m PVC Coated Gabion Wire Mesh

Product Description

Various Colors And Solid Structure, PVC Coated Gabion Can Resist The High Impact From Flood And Sea Water

PVC Coated Gabion Product

PVC coated steel wire is suitable for woven gabions. Welded gabions can be used the steel wires or galvanized wires for fabrication and then be treated with PVC coating. In this way, the welded gabions can be also colorful and much more suitable for the decorative applications.

The PVC coated gabion can be made into green, gray and other colors for common applications, it can also be made into orange, black and other various colors for decorative applications.

PVC coated gabion has a rigid and solid structure, which can be double twisted and triple twisted. Double twisted structure is most widely used structure, which is solid enough for common protective applications. In some harsh conditions projects, such as flood control, coastal protection, channeling lining and other projects, triple twisted structure makes the gabion a higher strength and stability structure. The high strength can resist the high impact from flood, sea water and other external forces.

PVC Coated Gabion Features

Adequate strength
Cost effective and efficient
Can be installed on a plain surface
No permanent drainage system is required
Corrosion resistance
Weather proof under natural destroy
Simple installation and easy transportation
No collapse even under big scope of deforming
Good permeation that can prevent the damage by hydrostatic
Form a integrity with the natural environment

PVC Coated Gabion Specifications

Product	PVC Coated Gabion
Color	Green, black, blue, grey etc
Material	Low carbon steel wire, galvanized wire, Galfan wire
Selvedge wire diameter	3.4mm, 4.4mm
Lacing wire diameter	2.2mm, 3.2mm
Woven type mesh size	60mm * 80mm, 80mm * 100mm, 100mm * 12mm and so on
Welded type mesh size	1/4", 1/2", 3/8", 3/4", 1", 2", 3", etc
Hole Shape	Hexagonal
Packaging	Water Proof Paper, Wooden Case And Pallet
Length	2m-6m
Width	1m-2m
Height	0.17m-1.5m

Item	Length (m)	Width (m)	Height (m)	Number of cells
PGS-01	2	1	0.17 m, 0.23 m, 0.3 m, 0.5 m, 1 m, 1.5 m	2
PGS-02	3	1	Same as above	3
PGS-03	3	2	Same as above	6
PGS-04	4	1	Same as above	4
PGS-05	4	2	Same as above	8
PGS-06	5	1	Same as above	5
PGS-07	5	2	Same as above	10
PGS-08	6	1	Same as above	6
PGS-09	6	2	Same as above	12
