80x100mm Woven Gabion Baskets 1x1x1m Galvanized Steel Wire Mesh

Large Image : 80x100mm Woven Gabion Baskets 1x1x1m Galvanized Steel Wire Mesh

Product Details:

Place of Origin:	China
Brand Name:	Cittimesh
Model Number:	Woven Gabion Baskets

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Nude package,compacted before packaging. Plastic packaging outside on the pallet.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	in abundant supply

Contact Now

80x100mm Woven Gabion Baskets 1x1x1m Galvanized Steel Wire Mesh

Description

Product:	Woven Gabion Baskets	Colors:	Green,gray And Any Color Is Available Upon Your Request.
Materials:	Hot Dipped Galvanized Steel Wire ,heavy Galvanized Coating Steel Wire , Galfan Wires, PVC Coated Wires.	Mesh Opening:	60 × 80mm, 80 × 100mm And Other Customized Sizes.
Gabion Sizes:	2 × 1 × 1 M, 1 × 1 × 1 M, 3 × 1 × 1 M And Customized Sizes.	Surface Treatment:	Heavy Galvanization.Zinc Coating Plus PVC Coating.95% Zinc ＋ 5% Al Alloy Coating.95% Zinc ＋ 5% Al Alloy Coating Plus PVC Coating.
Gabion Height Type:	Gabion Box And Gabion Mattress.	Available Minimal Rock Size:	100 Mm – 250 Mm Dense And Durable Stone.
Length:	Maximum 6 M.	Width:	Maximum 3 M.
Highlight:	80×100mm Woven Gabion Baskets , Woven Gabion Baskets 1mx1mx1m , 1mx1mx1m Wire Cages For Rocks

80 * 100mm Woven Gabion Baskets 1mx1mx1m Wire Cages For Rocks

Flexible, Durable and Versatile Woven Gabion Baskets for River Slope Protection

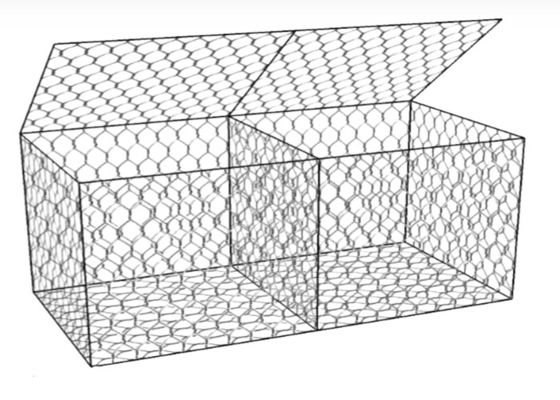

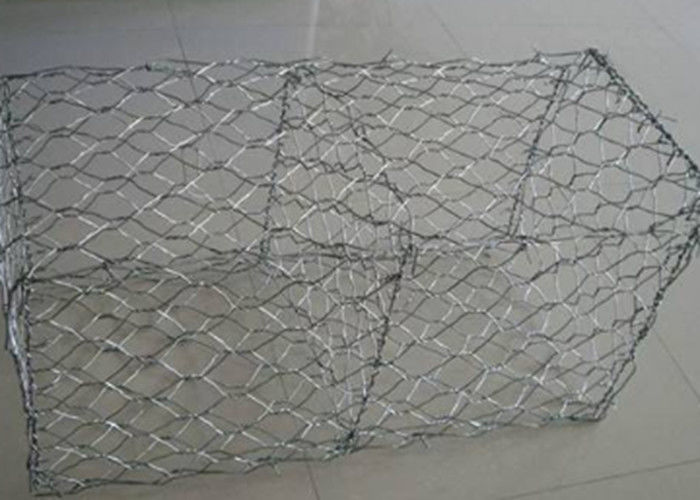

Woven gabion baskets are wire mesh containers filled with stones or other materials to create strong, durable structures. These galvanized steel or PVC-coated wire mesh containers are widely used in civil engineering for erosion control, retaining walls, and slope stabilization.

Product Features

Robust and flexible structure
Excellent permeability
Superior corrosion and rust resistance
High tensile strength
Long-lasting durability

Technical Specifications

Product	Woven Gabion Baskets
Materials	Hot dipped galvanized steel wire, heavy galvanized coating steel wire, Galfan wires, PVC coated wires
Colors	Green, gray (custom colors available)
Mesh Opening	60 * 80 mm, 80 * 100 mm (custom sizes available)
Standard Sizes	2 * 1 * 1 m, 1 * 1 * 1 m, 3 * 1 * 1 m (custom sizes available)
Surface Treatment	Heavy galvanization, Zinc coating plus PVC coating, 95% Zinc + 5% Al alloy coating

Detailed Specifications

Gabion Height Type	Gabion box and gabion mattress
Minimal Rock Size	100 mm - 250 mm dense and durable stone
Maximum Length	6 m
Maximum Width	3 m
Height Options	0.17 m, 0.21 m, 0.3 m, 0.5 m, 1 m, 1.5 m
Mesh Wire Diameter	2.0 mm - 4.0 mm
Lacing Wire	2.2 mm
Standard	ASTM A975-11

Popular Sizes

Size (LWH)	Mesh Wire (mm)	Mesh Opening	Diaphragm	Cells
2.01.00.15-0.3m	2.0-3.0	6080 to 120150mm	1	2
3.01.00.15-0.3m	2.0	Various	2	3
1.01.00.5m	Various	Various	0	1
2.01.01.0m	Various	Various	1	2

Note: All sizes can be customized according to your requirements. The quantity of tie wire is approximately 2% weight of gabion box.

Applications

Erosion and river bank protection
Retaining walls and channel lining
Noise barriers and tunnel culverts
Slope and foundation pit protection
Roadway, bridge, and railway protection

Roadway and bridge protection

Slope protection

River bank protection
