Product Details:
|
Material: | Galvanized Steel, Stainless Steel. | Surface Treatment: | Galvanized. |
---|---|---|---|
Hole Patterns: | Diamond, Hexagonal. | LWD: | 25mm. |
SWD: | 15mm. | Thickness: | 0.3–0.5mm. |
Coil Width: | 65–305mm | Coil Length: | 20m. |
Highlight: | 15mm Brick Reinforcement Mesh,15mm SWD Expanded Metal Wire Mesh,15mm Stainless Steel Brick Reinforcement Mesh |

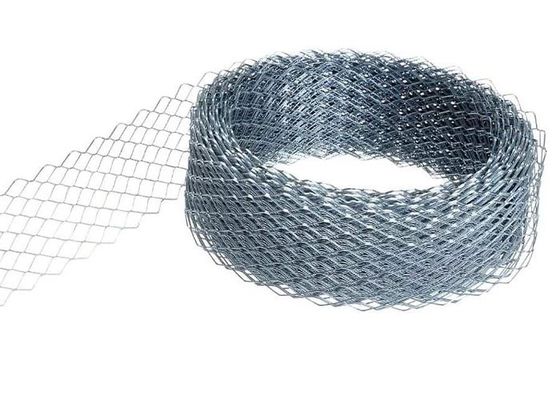

Expanded Metal Brick Reinforcement Mesh With Good Stability For Masonry Reinforcement
Expanded metal brick reinforcement mesh can provide good adhesion property and high tensile strength for concrete to prevent brick and masonry wall cracking and make the cement wall more stable.

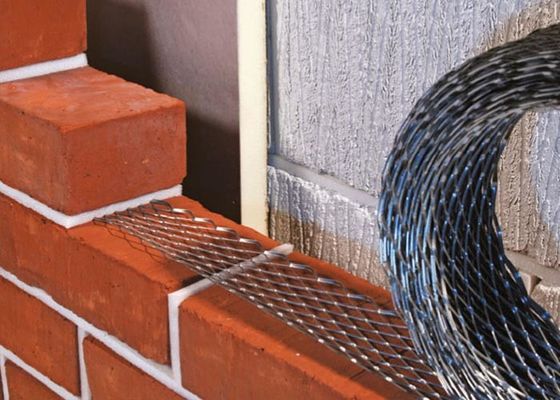

Expanded metal brick reinforcement mesh is mainly used to reinforce the brickwork of building door and window openings, aiming to reduce the damage caused by vibration and temperature changes and avoid cracking around door and window openings , thus enhancing the overall structure of the wall.
Besides, expanded metal brick reinforcement mesh has numerous applications in all types of building where extra strength and stability is required, as in footings and parapets etc, or to localised stress areas. Easily incorporated into mortar course, coiled for ease of handing.
Expanded Metal Brick Reinforcement Mesh Feature
Expanded Metal Brick Reinforcement Mesh Specification
Specifications of Expanded Metal Brick Reinforcement Mesh | |||||
Material | Thickness (mm) | Hole Pattern | Opening Size (SWD × LWD/mm) | Width (mm) | Length (m) |
Galvanized steel, stainless steel | 0.3–0.5 | Diamond, hexagonal | 15 × 25 | 65 | 20 |
115 | 20 | ||||
178 | 20 | ||||
225 | 20 | ||||
305 | 20 |
Expanded Metal Brick Reinforcement Mesh Application
Expanded metal brick reinforcement mesh has numerous applications in all types of building where extra strength and stability is required, as in footings and parapets etc, or to localised stress areas.
Hexagonal hole expanded metal brick reinforcement mesh

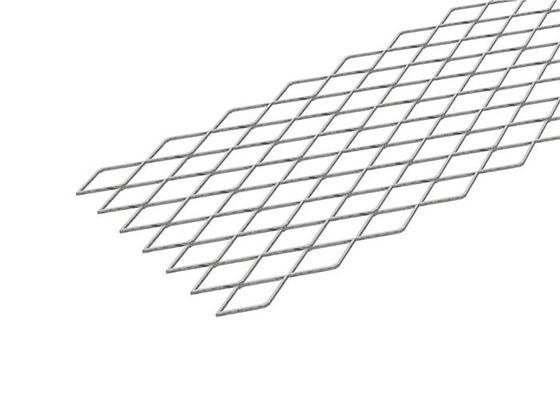

Diamond hole expanded metal brick reinforcement mesh
