Woven Vibrating Screen Differs in Material and Woven Type

Woven vibrating screen mesh is also called quarry screen mesh, crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.

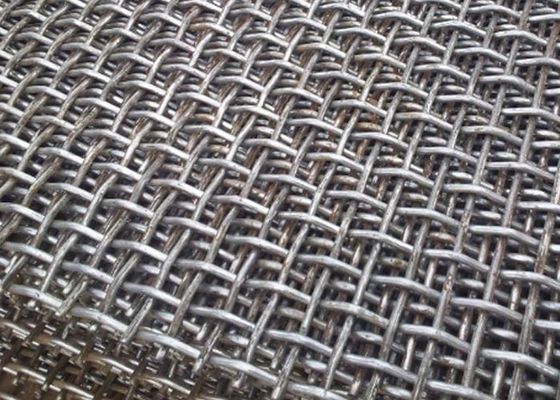

It has different weaving types and edge preparations. The main weaving types are flat top and crimped. Crimped type can be divided into single wire crimped and double wire crimped.

The high quality raw materials makes woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.

With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.

Woven Vibrating Screen Specification

• Material: High tensile spring steel, manganese steel and stainless steel.
• Wire diameter: 0.71mm - 12.5mm.
• Opening size: 1mm - 100mm.
• Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
• Mesh type: Square, rectangular slot, long slot.

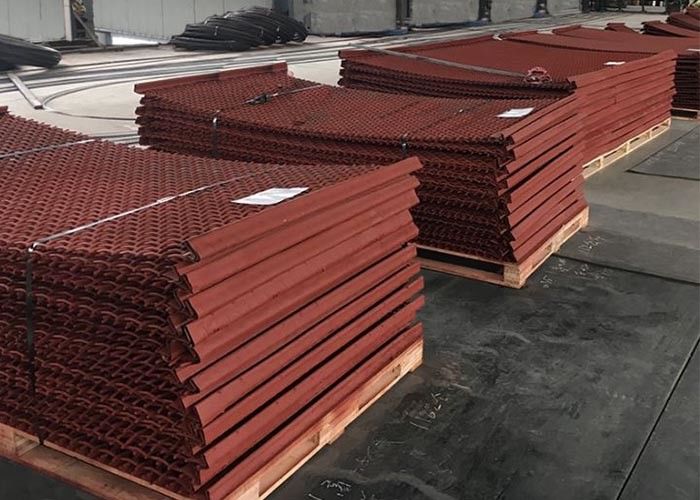

• Surface treatment: Black or red color painted.
• Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
• Hook type: C or U hook for 30° - 180°.

Woven Vibrating Screen Features

• Wear and abrasion resistant.
• Heavy impact resistant.
• High temperature resistant.
• Shock and pull resistant.
• High tensile strength and toughness.
• Acid, alkali and corrosion resistant.
• Long service life.

Woven Vibrating Screen Applications

Woven vibrating screen mesh can be used as screen deck in quarry screen and crusher screen to separate and sort stone, sand, gravel, coal, rock and other materials. It is widely used in the large scale stone processing, asphalt mixing plants, coal, metallurgy, chemical and other industries.

Woven Vibrating Screen For Screening Gravel

Woven Vibrating Screen For Screening Stone

Woven Crimped Screen For Vibrating Machine
