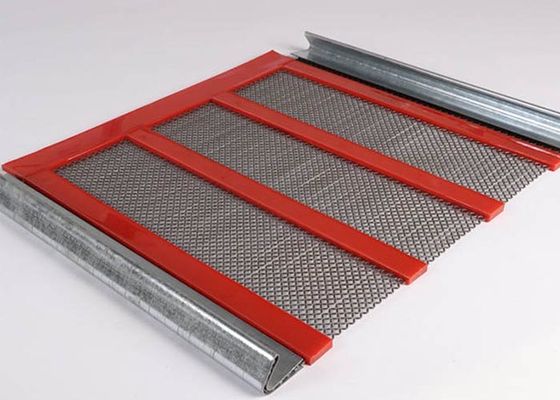

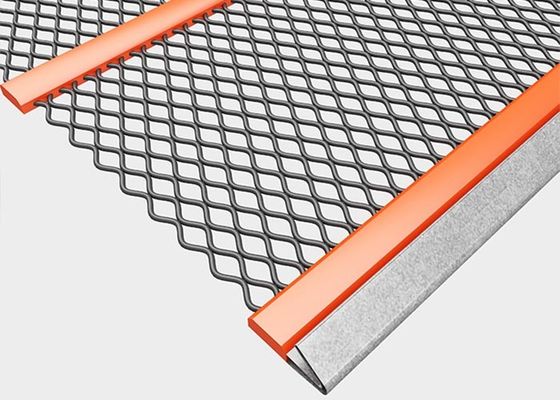

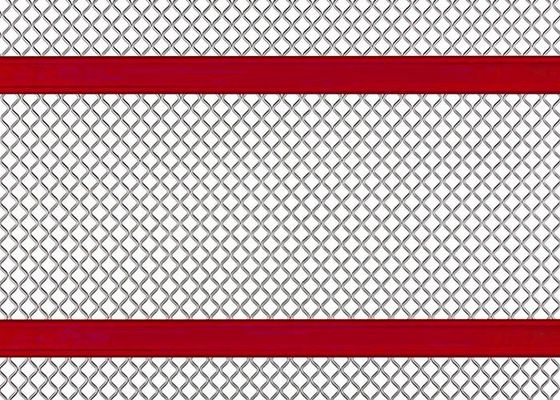

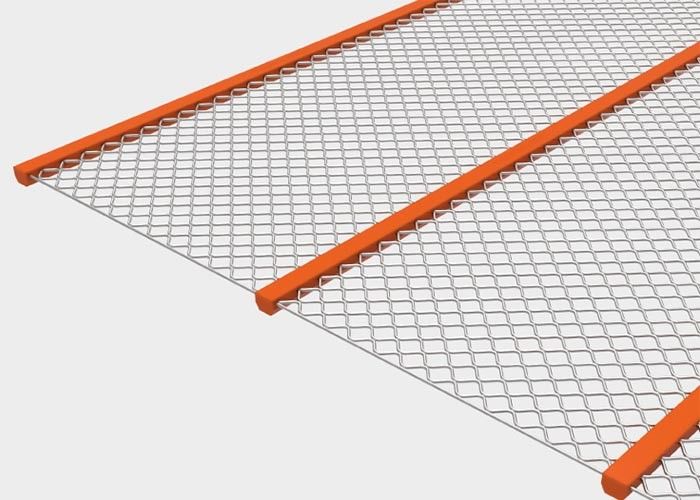

PU Support Strip Diamond Opening Self Cleaning Screen Mesh

PU Support Strip Diamond Opening Self Cleaning Screen Mesh
PU Support Strip Diamond Opening Self Cleaning Screen Mesh PU Support Strip Diamond Opening Self Cleaning Screen Mesh PU Support Strip Diamond Opening Self Cleaning Screen Mesh PU Support Strip Diamond Opening Self Cleaning Screen Mesh

Large Image :  PU Support Strip Diamond Opening Self Cleaning Screen Mesh

Product Details:
Place of Origin: China
Brand Name: Citti Mesh
Model Number: Wave wire self-cleaning screen
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Discuss personally
Packaging Details: wooden boxes
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 1000000
Contact Now

PU Support Strip Diamond Opening Self Cleaning Screen Mesh

Description
Material: High Carbon Steel Wire And Stainless Steel Wire. Wire Diameter: 1.2–9mm.
Opening Diameter: 2.24-62mm. Wire Type: Crimped Wire
Edge: Hooked Edge Is Available.
High Light:

diamond opening mining screen mesh

,

mining screen mesh self cleaning

,

diamond opening self cleaning screen mesh

PU Support Strip Diamond Opening Self-Cleaning Screen - Diagonal Wire Self-Cleaning Screen



This diamond opening self-cleaning mining screen is composed of wavy metal wires. The wavy metal wires are placed horizontally to form openings similar to a square. The warp uses polyurethane or metal wire cross band to connect these wave-shaped metal wires to each other. Since there is no straight wire in the middle of the grid, this mesh type has a larger effective opening area, which can effectively prevent it from being binding and blocked by the screened material.



The diamond opening self-cleaning screen is one of the most commonly used self-cleaning mining screens. It has good screening capacity and screening accuracy, and is perfectly suit for the screening of light and medium-weight materials.





Diamond  Opening Self Cleaning Screen Mesh Feature





  • Eliminate blinding and clogging
  • Higher open area than traditional square mesh
  • Increase production and lower costs
  • Accurate sizing
  • Wear resistance, corrosion resistance
  • High screening efficiency – up to 40% more throughput



Diamond Opening Self Cleaning Screen Mesh Specification



  1. Material: High carbon steel wire and stainless steel wire.
  2. Wire diameter: 1.2–10 mm.
  3. Edge: Hooked edge is available.
  4. Wire type: crimped wire.



Item No. Opening  (mm) Wire Size         (mm)
1 2.24 0.9
2 2.5 1.2
3 2.5 1.6
4 2.75 2
5 3 1.2
6 3 1.6
7 3 1.8
8 3.15 1.25
9 3.15 1.6
10 3.15 2
11 3.5 1.6
12 3.5 2
13 3.71 1.25
14 4 1.6
15 4 2
16 4 2.5
17 4.41 2
18 4.5 1.6
19 4.5 2.5
20 4.76 1.37
21 4.76 1.83
22 4.76 2.03
23 5 1.6
24 5 2
25 5 2.34
26 5 2.5
27 5 3.15
28 5.3 3.15
29 5.4 2
30 5.5 3.15
31 5.6 2
32 5.6 2.5
33 5.6 2.8
34 6 2
35 6 2.5
36 6 3
37 6 3.15
38 6.3 1.6
39 6.3 2
40 6.3 2.5
41 6.3 3.15
42 6.35 1.83
43 6.35 2.34
44 6.35 2.67
45 6.35 3
46 6.8 3
47 7 2
48 7.1 2.5
49 7.1 3.15
50 7.1 4
51 7.5 2.5
52 7.94 2.67
53 8 2
54 8 2.5
55 8 2.8
56 8 3.15
57 8 4
58 8.2 4
59 8.5 2.5
60 9 2
61 9 2.5
62 9 3
63 9 3.15
64 9.5 2.5
65 9.5 4
66 9.53 3.05
67 9.53 3.43
68 9.53 3.76
69 10 2.5
70 10 3.15
71 10 4
72 10 5
73 10.46 4
74 10.96 3.15
75 11.2 2.5
76 11.2 3.76
77 11.2 4
78 11.2 5
79 11.5 5
80 12 2.5
81 12 3.15
82 12 4
83 12 5
84 12.5 3.15
85 12.5 4
86 12.5 5
87 12.7 3.05
88 12.7 3.15
89 12.7 3.76
90 12.7 4.11
91 12.92 5
92 13 3.15
93 13.2 2.5
94 13.2 3.15
95 13.2 4
96 13.5 6.3
97 14 2.5
98 14 3.15
99 14 4
100 14 5
101 14.29 4.11
102 15 3.15
103 15 4
104 15.88 4.11
105 16 3.15
106 16 4
107 16 5
108 17 3.15
109 17.46 4.11
110 17.5 3.15
111 18 4
112 18 5
113 18 6.3
114 18.41 5
115 18.5 4
116 19 3.15
117 19 4
118 19.05 4.88
119 19.05 5.26
120 20 3.15
121 20 4
122 20 5
123 20 6.3
124 20 8
125 20.63 5.72
126 20.64 4.5
127 21.85 3.15
128 22 4
129 22.23 4.88
130 22.23 5.26
131 22.23 5.72
132 22.4 4
133 22.4 5
134 22.4 6.3
135 22.4 8
136 23.81 4.88
137 24 3.15
138 24 4
139 25 3.15
140 25 4
141 25 5
142 25 6.3
143 25 8
144 25.35 5.72
145 25.4 4
146 25.4 4.11
147 26.5 6.3
148 27 6.3
149 28 4
150 28 5
151 28 6.3
152 28.34 5.72
153 29.6 6.3
154 30 6.3
155 31.5 6.3
156 35.5 6.3
157 36 10
158 38.1 6.3
159 40 8
160 40 10
161 45 8
162 45 10
163 50 10
164 55 10
165 62 10











Diamond Opening self Cleaning Screen Mesh Application



Self-cleaning screens are widely used for material separation in mining industry, quarry industry, aggregate processing industry, chemical industry, sand, gravel and other industries. It is an ideal choice for separating and screening wet materials.





PU Support Strip Diamond Opening Self Cleaning Screen Mesh 0



Self Cleaning Screen Mesh For Screening Gravel



PU Support Strip Diamond Opening Self Cleaning Screen Mesh 1



Self Cleaning Screen Mesh For Screening Sand



PU Support Strip Diamond Opening Self Cleaning Screen Mesh 2



Self Cleaning Screen Mesh For Mining



PU Support Strip Diamond Opening Self Cleaning Screen Mesh 3



Self Cleaning Screen Mesh For Screening Stone
