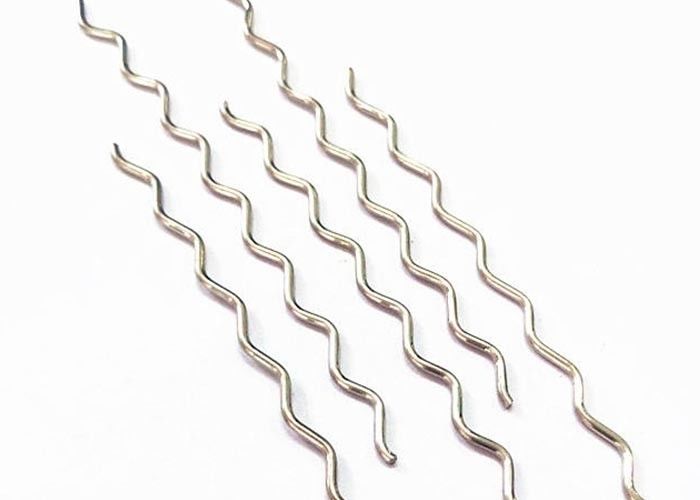

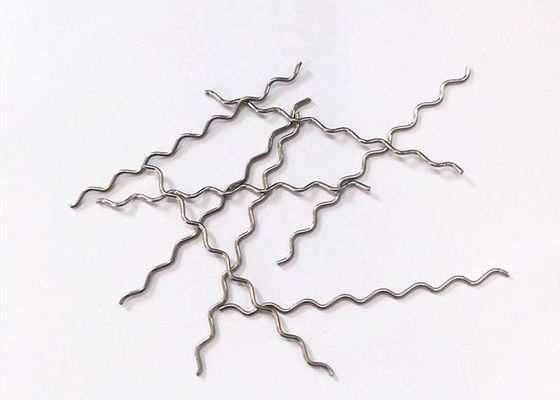

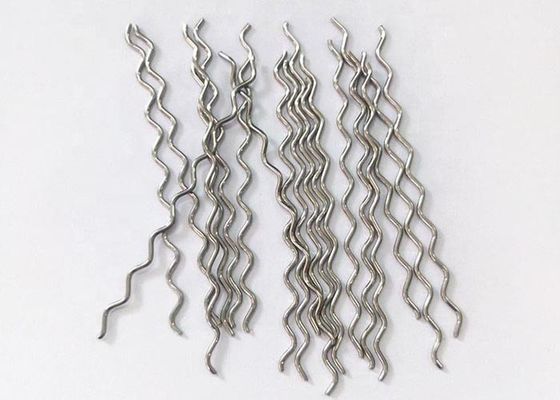

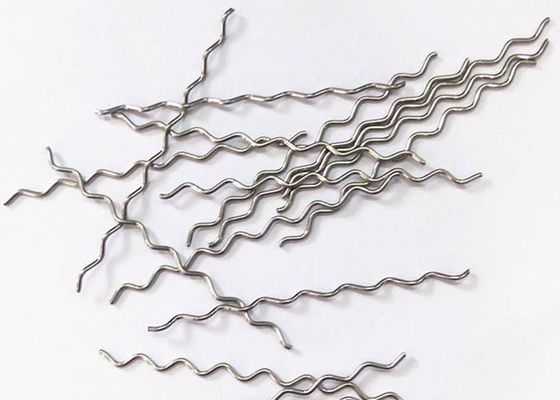

Round Crimped Steel Fiber Reinforcement 0.9mm

Large Image : Round Crimped Steel Fiber Reinforcement 0.9mm

Product Details:

Place of Origin:	China
Brand Name:	CITTIMESH
Model Number:	Steel Fiber

Payment & Shipping Terms:

Minimum Order Quantity:	1 T
Packaging Details:	Packaged in cardboard boxes (Net weight/box: 25 Kg).
Delivery Time:	5 work day
Payment Terms:	T/T
Supply Ability:	Large supply

Contact Now

Round Crimped Steel Fiber Reinforcement 0.9mm

Description

Material:	Cold-draw Low Carbon Steel Wire.	Diameter:	0.9mm, 1mm, 1.3mm.
Tensile Strength (MPa):	≥ 900, 1150, 1200, 1500.	Aspect Ratio:	39, 50, 6 L/d
Standard:	EN 4889, ASTM A820/A820M.
High Light:	round crimped steel fiber reinforcement , 0.9mm steel fiber reinforcement , 0.9mm metal fibers for concrete

Crimped Steel Fiber Is to Control Plastic Shrinkage & Drying Shrinkage

Round crimped steel fiber is fabricated by cold-drawn low carbon steel. Compared with rebar, round crimped steel fiber adds pull-out resistance. Round crimped steel fibers are deffer from other five types in shape but sharing the same functions. Round crimped steel fibers are designed to improve structural strength and durability, and also resistant to cracking and plastic shrinkage and drying shrinkage.

The characteristics of round crimped steel fiber changes with varying conditions, for example concrete, geometries, distribution, orientation and densities.

Crimped Steel Fiber Feature

Improve structural strength.
Reduce bleeding of water.
Resistance to cracking.
Improve freeze-thaw resistance.
Improve impact– and abrasion–resistance.
High tensile strength and good durability.

Crimped Steel Fiber Specification

Material: Cold-draw low carbon steel wire..
Diameter: 0.9 mm, 1 mm, 1.3 mm.
Length: 20 mm, 25 mm, 30 mm, 35 mm, 60 mm.
Aspect ratio (l/d): 39, 50, 60.
Tensile strength (MPa): ≥ 900, 1150, 1200, 1500.
Standard: EN 4889, ASTM A820/A820M.

Round Crimped Steel Fiber Specification

Item	Diameter (mm)	Fiber length (mm)	Wave depth (mm)	Wave length (mm)	Aspect ratio (l/d)	Tensile strength (MPa)	Number of fibers per kg	Total fiber length/10 kg (m)
RC39/35BN	0.9	35	0.4–0.65	8.0	39	≥ 1200	5500	1925
RC50/50BN	1.0	50	0.4–0.65	8.0	50	≥ 1150	3100	1550
RC60/60BN	1.0	60	0.4–0.65	8.0	60	≥ 1500	2500	1550
RC39/50BN	1.3	50	0.4–0.65	8.0	39	≥ 900	1850	910

Crimped Steel Fiber Applications

Steel fibers are widely used sprayed concrete, flooring pavement, precasting concrete, situ and repair concretes, low cement castable, tunnel project, burner blocks, blast furnace, fire clays, torpedo ladle, building construction, highway construction, bridge construction, dam construction and other applications.
